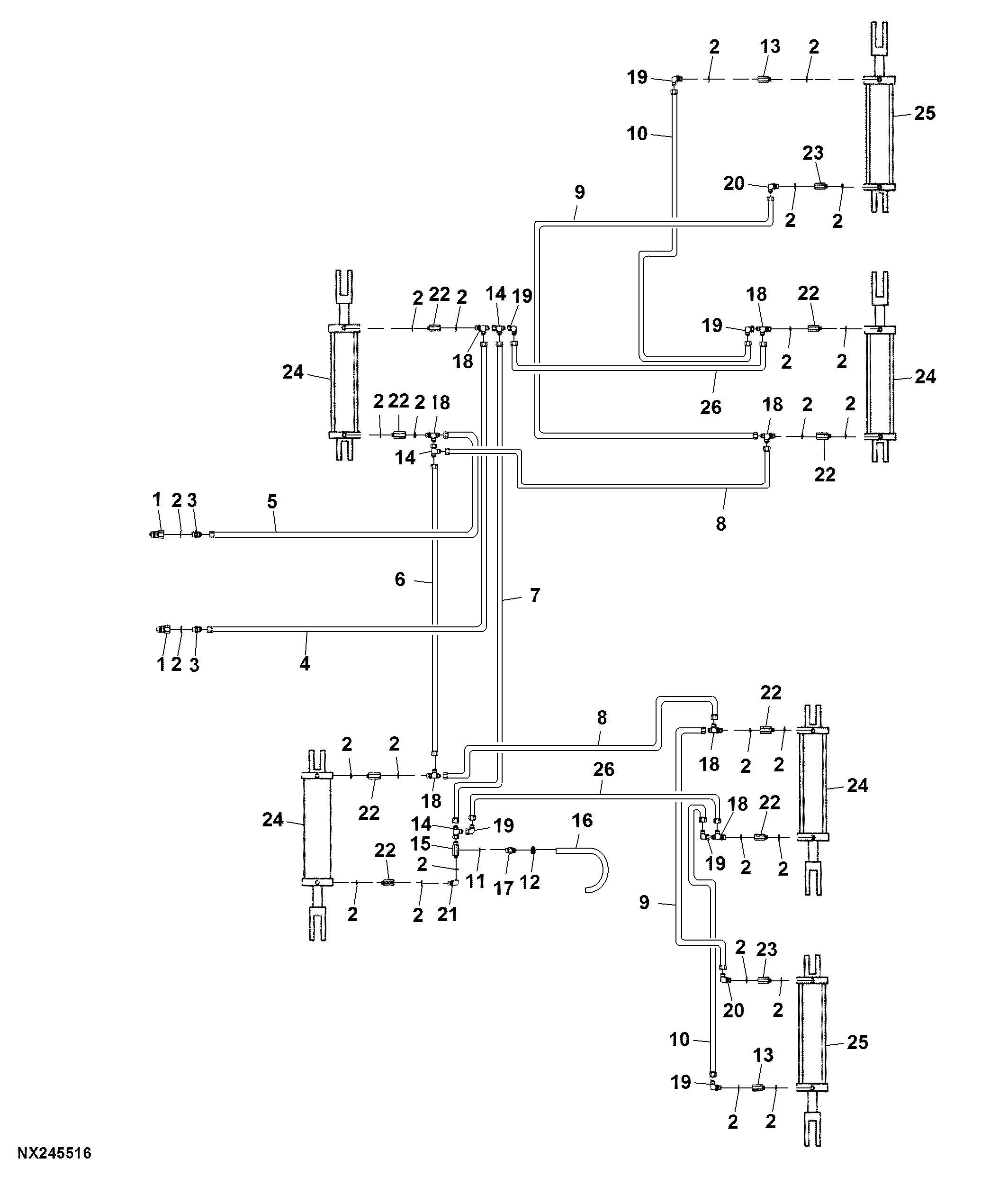

Wing Fold Hydraulics, 19 Row 47' 6", 21 Row 52' 6" and 23 Row 57' 6"

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR94522	2	Hydr. Quick Coupler Plug	-
2	R26375	1	O-Ring	-
3	R27237	2	Fitting	-
4	AA51044	1	Hydraulic Hose	(12' Main Frame) , Return Line, LGTH = 8687 mm
4	AA58306	1	Hydraulic Hose	(15' Main Frame) , Return Line, LGTH = 10236 mm
5	AA46056	1	Hydraulic Hose	(12' Main Frame) , Pressure Line, LGTH = 7975 mm
5	AA44226	1	Hydraulic Hose	(15' Main Frame) , Pressure Line, LGTH = 9652 mm
6	AN230304	1	Hydraulic Hose	(12' Main Frame) , LGTH = 813 mm
6	AN280817	1	Hydraulic Hose	(15' Main Frame) , LGTH = 1778 mm
7	AN233655	1	Hydraulic Hose	(12' Main Frame) , LGTH = 2438 mm
7	AN230288	1	Hydraulic Hose	(15' Main Frame) , LGTH = 3251 mm
8	AN230327	2	Hydraulic Hose	(12' Main Frame) (15' Main Frame) , LGTH = 1346 mm
9	AN230323	2	Hydraulic Hose	(10' Inner Wing) (11' Inner Wing) , LGTH = 4750 mm
9	AN230316	2	Hydraulic Hose	(12' Inner Wing) , LGTH = 5232 mm
10	AA35046	2	Hydraulic Hose	(10' Inner Wing) (11' Inner Wing) , LGTH = 6300 mm
10	AA36234	2	Hydraulic Hose	(12' Inner Wing) , LGTH = 6883 mm
11	R26448	1	O-Ring	-
12	AR21837	1	Clamp	-
13	AN233189	2	Check Valve	One Way
14	AN33434	3	Tee Fitting	-
15	AW16707	1	Union Fitting	INCLUDES R27449, R26375 AND R27448
16	R38556	1	Hose	-
17	AA29209	1	Pressure Relief Valve	-
18	AT26327	7	Tee Fitting	-
19	AH75164	6	Elbow Fitting	-
20	AT32332	2	Elbow Fitting	-
21	AE14428	1	Elbow Fitting	-
22	N233434	8	Hydraulic Restrictor	-
23	N281475	2	Hydraulic Restrictor	-
24	AHC12116	4	Hydraulic Cylinder	(12' Main Frame)
24	AHC12127	1	Hydraulic Cylinder Kit	USE WITH AHC12115
24	AHC12127	1	Hydraulic Cylinder Kit	USE WITH AHC12116
24	AHC12115	4	Hydraulic Cylinder	(15' Main Frame)
25	AHC12099	2	Hydraulic Cylinder	(10' Inner Wing) (11' Inner Wing)
25	AN237044	2	Hydraulic Cylinder	(12' Inner Wing)
25	AHC12125	1	Hydraulic Cylinder Kit	USE WITH AHC12099
25	AN237045	1	Hydraulic Cylinder Kit	USE WITH AN237044
26	AN233655	2	Hydraulic Hose	LGTH = 2438 mm

Wing Fold Hydraulics, 19 Row 47' 6", 21 Row 52' 6" and 23 Row 57' 6"
