VALVE ASSEMBLY GRAPPLE POWER FRAME EATON WINCH ( AA7487 - AC7697) 2433-041/10 [2433-041/10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

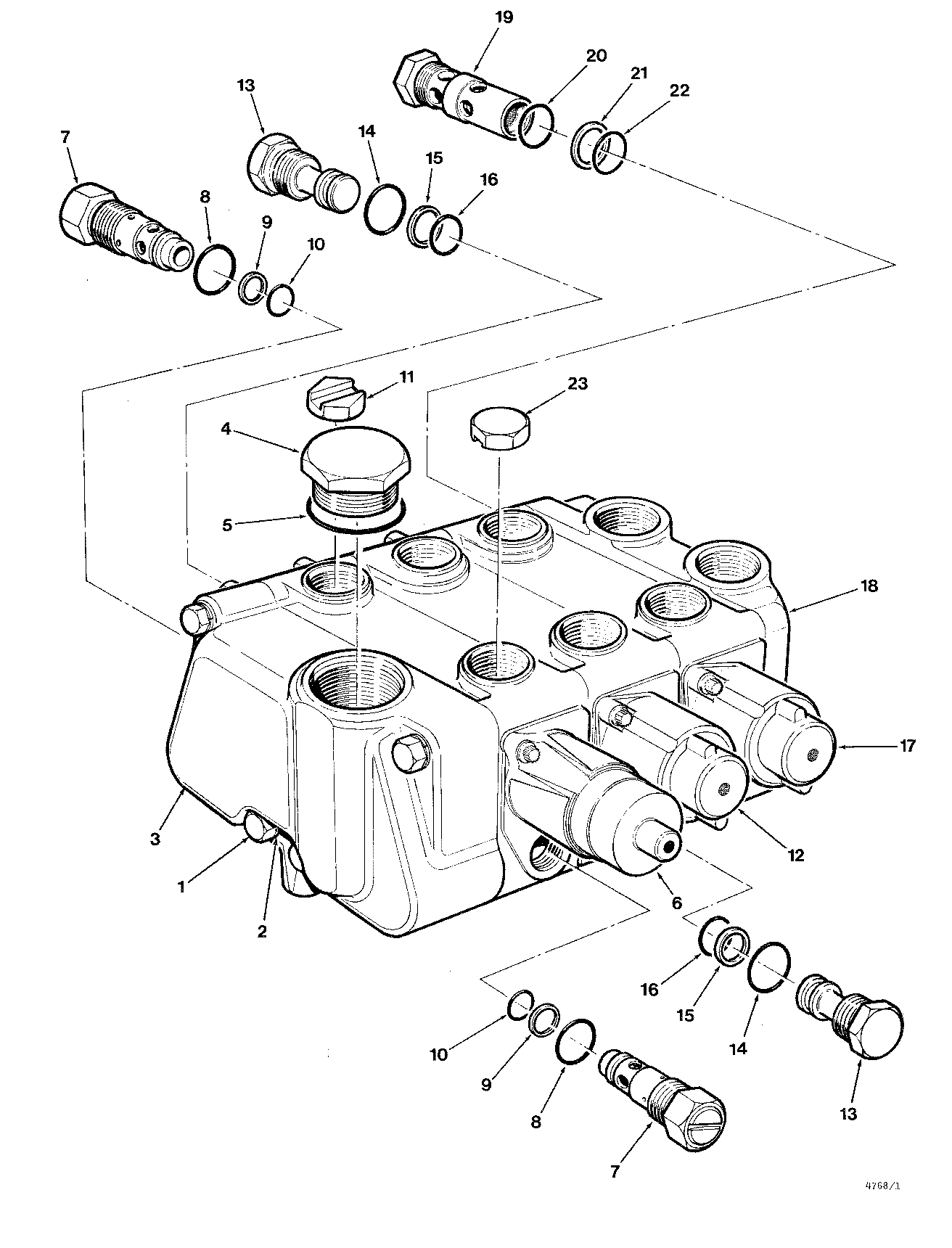

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	840817700	4	BOLT*3/8-16UNCX8	-
2	810002600	4	LOCKWASHER 3/8	-
3	840856400	1	END PLATE	-
4	841534800	1	PLUG	-
5	840547100	1	O-RING -	-
6	841153300	1	VALVE SECTION - WINCH	Refer to Page: SKIDDER, LOG\380 SKIDDER, LOG\380 - 350 TO 450-SERIES (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION WINCH EATON ( AA2144 - CK2397) 2433-035/10
7	840817100	2	VALVE-RELIEF*550PSI	-
8	-------	2	O-RING	-
9	-------	2	O-RING	-
10	-------	2	O-RING	-
11	840887500	1	ORIFICE	-
12	841153400	1	VALVE SECTION - DOZER	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION DOZER ( AA5191 - CE7000) 2433-038/10
13	841076400	2	PLUG	-
14	-------	2	O-RING	-
15	-------	2	O-RING	-
16	-------	2	O-RING	-
17	841153500	1	VALVE SECTION - STEER	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION STEER ( AA5191 - CE7000) 2433-037/10
18	840797300	1	PORT PLATE	-
19	841369200	1	VALVE-RELIEF*2000PSI	-
20	-------	1	O-RING	-
21	-------	1	O-RING	-
22	-------	1	O-RING	-
23	840887400	1	ORIFICE*.0635	-
-	810897000	1	VALVE-CONTROL	-
-	841154000	1	REPAIR KIT - MAJOR	-
-	841072200	1	BETWEEN SECTION REPAIR KIT	-
-	840296600	1	SEAL KIT - K1	-
-	840817900	2	REPAIR KIT - K1	-
-	840797000	1	REPAIR KIT	-
-	840547100	1	O-RING -	-

VALVE ASSEMBLY GRAPPLE POWER FRAME EATON WINCH ( AA7487 - AC7697) 2433-041/10 [2433-041/10]
