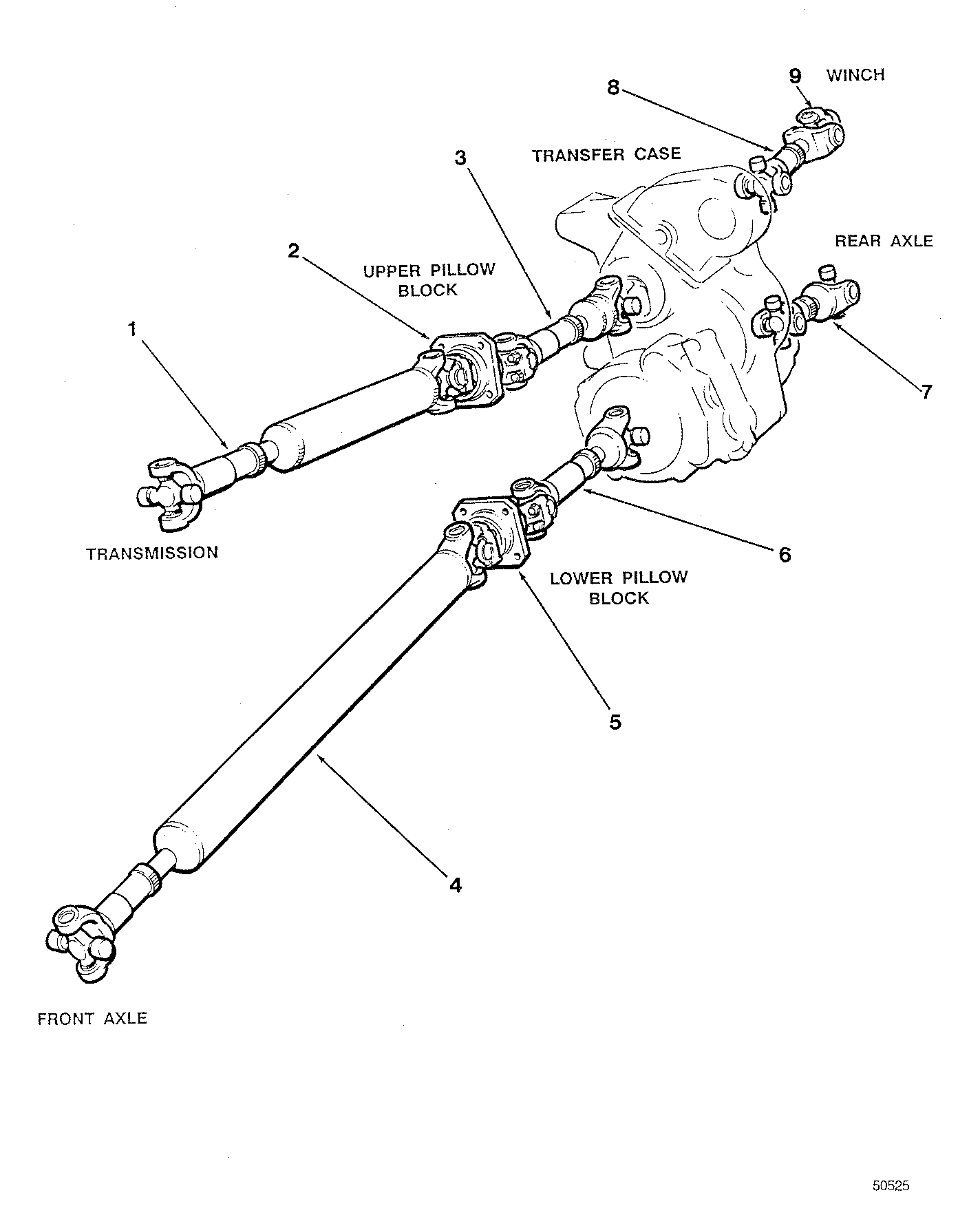

DRIVESHFT LAYOUT CABLE DUAL DRUM ( AA7487 - CB7768) 1500-047/11 [1500-047/11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811010800	1	DRIVESHAFT - FROM S/N AA7487-240S	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( AA5191 - CE7000) 1511-138/10
2	825836300	1	PILLOW BLOCK*1410 -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AA5191 - AC5389) 1530-020/10
3	810937400	1	DRIVE SHAFT - TOP CROSSOVER P. 1511 - 10/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( AA5191 - CE7000) 1511-010/10
4	810947100	1	DRIVE SHAFT - LOWER FRONT - P. 1511 - 111/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO PILLOW BLOCK ( AA5191 - CE7000) 1511-111/10
5	F297079	1	PILLOW BLOCK - LOWER	Refer to Page: SKIDDER, LOG\225 SKIDDER, LOG\225 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO PILLOW BLOCK WR7, WR7D AXLE ( CT7345 - CE7000) 1512-032/10
6	825163200	1	DRIVESHAFT -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE LOWER ( AA5191 - CE7000) 1511-064/10
7	810915800	1	DRIVESHAFT - D.D.WR3,WR5 AXLE CBLE	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE DUAL DRUM WR3 WR5 ( AA7487 - CB7768) 1511-114/10
8	810636800	1	SHAFT - DUAL DRUM.......................P. 1511 - 020/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO DUAL DRUM WINCH ( CB7769 - CE7000) 1511-020/10
9	822941200	1	END YOKE - REWORK (1410 SERIES)	-
-	810614000	1	SHAFT - T30 (GEARMATIC) WR3.............P. 1511 - 019/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 NO SPIN ( CK7125 - CB7766) 1511-019/10
-	825163200	1	DRIVESHAFT -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE LOWER ( AA5191 - CE7000) 1511-064/10
-	811471200	1	DRIVESHAFT-6C - GEARMAT WR7,WR7D AXLE FROM CT7345 CBLE	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR7 NO SPIN ( CB7767 - CE7000) 1512-034/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 LOCK DIFF ( CK7125 - CB7766) 1511-120/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 LOCK DIFF ( CK7125 - CB7766) 1511-120/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 LOCK DIFF ( CK7125 - CB7766) 1511-120/10
-	810861000	1	SHAFT - T20 (EATON) WR3;WR5.............P. 1511 - 102/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR3 WR5/WR6 ( CB7767 - CE7000) 1511-102/10
-	810614000	1	SHAFT - T30 (GEARMATIC) WR3.............P. 1511 - 019/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 NO SPIN ( CK7125 - CB7766) 1511-019/10
-	810613500	1	SHAFT - GRAPPLE.........................P. 1511 - 016/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GRAPPLE WR7 LOCK DIFF ( CK7159 - CT7344) 1511-016/10
-	811159400	1	DRIVESHAFT-6C - WR7.WR7D AXLE FROM S/N CT7345 GR	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GRAPPLE WR7 NO SPIN ( CT7345 - CE7000) 1512-033/10
-	810837300	1	SHAFT - T20 (EATON).....................P. 1511 - 072/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO T30A WINCH ( CB7767 - CB7768) 1511-072/10
-	810636700	1	SHAFT - GRAPPLE.........................P. 1511 - 037/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO EATON T-20 WINCH ( AA7487 - CB7768) 1511-037/10
-	820007500	1	SHAFT - T30 (GEARMATIC).................P. 1511 - 011/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO GEARMATIC WINCH ( AA7487 - CB7768) 1511-011/10
-	820007500	1	SHAFT - T30 (GEARMATIC).................P. 1511 - 011/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO GEARMATIC WINCH ( AA7487 - CB7768) 1511-011/10
-	811460000	1	DRIVESHAFT - GEARMATIC FROM S/N CI7456-240	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO GEARMATIC WINCH ( CI7456 - CB7766) 1511-011/11
-	-------	1	O-RING	-
-	826099900	1	PILLOW BLOCK*6C - LOWER - FROM S/N CT7345	Refer to Page: SKIDDER, LOG\225 SKIDDER, LOG\225 - 200-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER TAPERED BEARING OPTION ( CT7345 - CE7000) 1530-025/10
-	811010800	1	DRIVESHAFT - FROM S/N AA7487-240S	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( AA5191 - CE7000) 1511-138/10
-	811180900	1	DRIVESHAFT - FROM S/N CK7138-240P	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( CI7417 - CE7000) 1511-156/10
-	810937400	1	DRIVE SHAFT - TOP CROSSOVER P. 1511 - 10/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( AA5191 - CE7000) 1511-010/10
-	F297079	1	PILLOW BLOCK - LOWER	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AA5191 - AC5389) 1530-020/10
-	810937400	1	DRIVE SHAFT - TOP CROSSOVER P. 1511 - 10/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( AA5191 - CE7000) 1511-010/10
-	811181000	1	DRIVESHAFT - FROM S/N CK7138-240P	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( CI7417 - CE7000) 1511-155/10
-	811010800	1	DRIVESHAFT - FROM S/N AA7487-240S	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( AA5191 - CE7000) 1511-138/10
-	811159300	1	DRIVESHAFT-6C - WR7,WR7D FROM S/N CT7345	Refer to Page: SKIDDER, LOG\225 SKIDDER, LOG\225 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO PILLOW BLOCK WR7, WR7D AXLE ( CT7345 - CE7000) 1512-032/10
-	810614000	1	SHAFT - T30 (GEARMATIC) WR3.............P. 1511 - 019/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 NO SPIN ( CK7125 - CB7766) 1511-019/10
-	811159200	1	DRIVESHAFT-6C - WR7,WR7D,AXLES FROM S/N CT7345	Refer to Page: SKIDDER, LOG\225 SKIDDER, LOG\225 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE LOWER WR7, WR7D AXLE( CT7345 - CE7000) 1512-031/10
-	810861000	1	SHAFT - T20 (EATON) WR3;WR5.............P. 1511 - 102/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR3 WR5/WR6 ( CB7767 - CE7000) 1511-102/10
-	810861000	1	SHAFT - T20 (EATON) WR3;WR5.............P. 1511 - 102/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR3 WR5/WR6 ( CB7767 - CE7000) 1511-102/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 LOCK DIFF ( CK7125 - CB7766) 1511-120/10
-	811471200	1	DRIVESHAFT-6C - GEARMAT WR7,WR7D AXLE FROM CT7345 CBLE	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR7 NO SPIN ( CB7767 - CE7000) 1512-034/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 LOCK DIFF ( CK7125 - CB7766) 1511-120/10
-	810861000	1	SHAFT - T20 (EATON) WR3;WR5.............P. 1511 - 102/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE T30A CABLE WR3 WR5/WR6 ( CB7767 - CE7000) 1511-102/10
