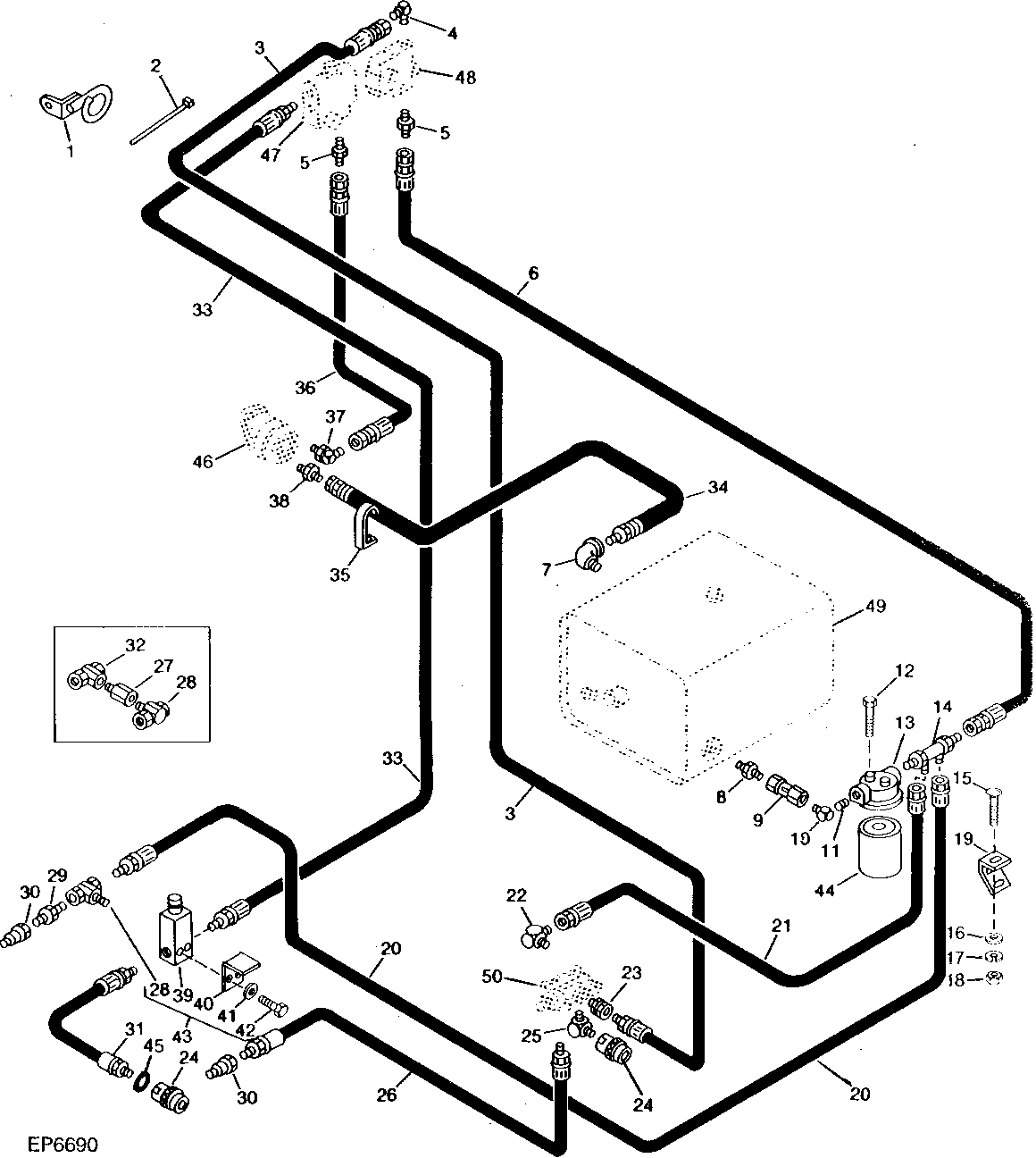

PLATFORM DRIVE HYDRAULIC CIRCUIT [G08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW23692	1	GUIDE	-
2	M63300	1	TIE BAND	STANDARD DUTY, (SUB FOR E72902 OR M66044) (SUB R44302)
2	W36485	4	TIE BAND	HEAVY DUTY
3	AW23917	1	HYDRAULIC HOSE	-
4	T15162	1	ELBOW FITTING	-
5	W35777	2	FITTING	-
6	AW23920	1	HYDRAULIC HOSE	-
7	15H213	1	Elbow Fitting	-
8	W35800	1	THREADED NIPPLE	-
9	AW23915	1	CHECK VALVE	-
10	AW23696	1	ELBOW FITTING	-
11	W35778	1	THREADED NIPPLE	-
12	M42626	2	Bolt	1/4" X 3/4", AS DICTATED BY FILTER
12	N167649	2	Screw	5/16" X 1/2", AS DICTATED BY FILTER
13	AW24929	1	FILTER HEAD	DOES NOT INCLUDE FILTER ELEMENT
13	AW23794	1	FILTER HEAD	(SUB AW24929 AND AE33293)
14	AW23717	1	MANIFOLD	-
15	03H1765	1	Bolt	3/8" X 3/4"
16	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
17	12H304	1	Lock Washer	3/8"
18	14H1076	1	Nut	3/8"
19	W35567	1	BRACKET	-
20	AW23918	1	HYDRAULIC HOSE	-
21	AW23922	1	HYDRAULIC HOSE	-
22	U46690	1	ELBOW FITTING	-
23	AW23914	1	UNION FITTING	-
24	C14619	2	Hydr. Quick Coupler Socket	-
25	W35781	1	ELBOW FITTING	-
26	AW23896	1	HYDRAULIC HOSE	-
27	AW23923	1	RELIEF VALVE	(SUB AW24990)
28	AW23925	1	TEE FITTING	-
29	A49348	1	Threaded Nipple	(SUB FOR W35801)
30	C14618	2	Hydr. Quick Coupler Plug	-
31	AW23926	1	HYDRAULIC HOSE	-
32	AW23924	1	TEE FITTING	-
33	AW23919	1	HYDRAULIC HOSE	-
34	AW23916	1	HYDRAULIC HOSE	-
35	W35563	1	RETAINER	-
36	AW23921	1	HYDRAULIC HOSE	-
37	AR26724	1	Elbow Fitting	-
38	AW23748	1	AW23748	-
39	AW24968	1	RELIEF VALVE	-
40	-	1	Part 43	-
41	12H302	2	Lock Washer	1/4"
42	19H1919	2	Cap Screw	1/4" X 5/8"
43	AW24990	1	KIT	-
44	AE33293	1	OIL FILTER	-
45	ES10902	1	RING	-
46	-	1	Part 49	-
47	-	1	Part 50	-
48	-	1	Part 51	-
49	-	1	Part 52	-
50	AW23985	1	SWITCH	-
..	AW24991	1	SEAL KIT	(USE WITH AW24968)
