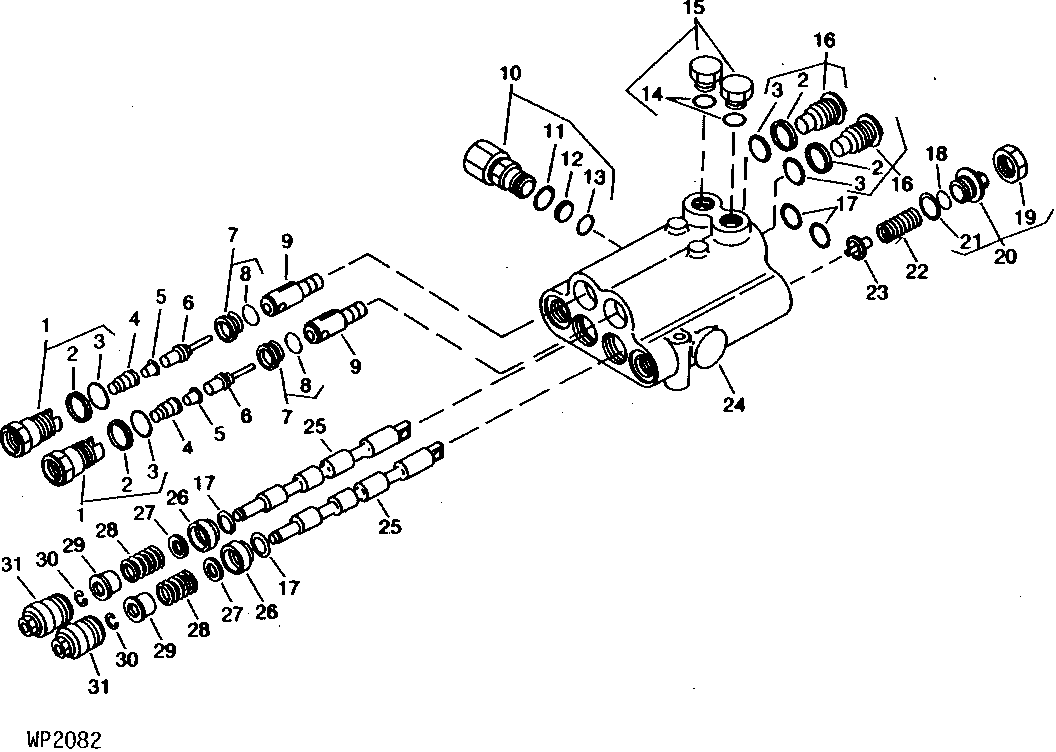

PLATFORM AND REEL LIFT CONTROL VALVE (001901- ) [G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH126566	2	Adapter Fitting	(INCLUDES H63357 AND U40745)
2	H63357	4	BACK-UP RING	(A)
3	U40745	4	O-Ring	(A)
4	H132509	2	Compression Spring	-
5	H84537	2	GUIDE	(SUB AW26490)
6	AN30940	2	POPPET	(A) (SUB FOR AH80223, THIS APPLICATION)
7	AE24787	2	Seal	(INCLUDES R45186)
8	R45186	2	O-RING	(A) (SUB T77857)
9	W39795	2	PLUNGER	-
10	AN150268	1	ADAPTER	-
11	R375R	1	O-Ring	(A)
12	E41820	1	Back-Up Ring	(A)
13	R28776	1	O-Ring	(A)
14	R26448	2	O-Ring	(A)
15	AE24798	2	Fitting	(INCLUDES R26448)
16	AE24792	2	Plug	(INCLUDES H63357 AND U40745)
17	H132510	4	O-Ring	(A)
18	H31257	1	SHIM	0.010"
18	N111502	1	Washer	0.260" X 0.485" X 0.035"
18	T24871	1	SHIM	0.015"
19	H132647	1	NUT	-
20	AH127838	1	Fitting Plug	(INCLUDES H132647 AND R26375)
21	R26375	1	O-Ring	(A)
22	W39819	1	SPRING	-
23	E40775	1	Poppet	-
24	-	1	Part 26	(SUB AW26490)
25	-	2	Part 27	(SUB AW26490)
26	N150470	2	Bushing	-
27	M87511	2	Washer	-
28	M87401	2	Spring	-
29	AM100539	2	Spacer	-
30	M87403	2	Snap Ring	-
31	AM100541	2	Cap	-
..	AW26580	1	SEAL KIT	INCLUDES ALL PARTS MARKED "A"
..	AW26490	1	CONTROL VALVE	-

PLATFORM AND REEL LIFT CONTROL VALVE (001901- ) [G14]
