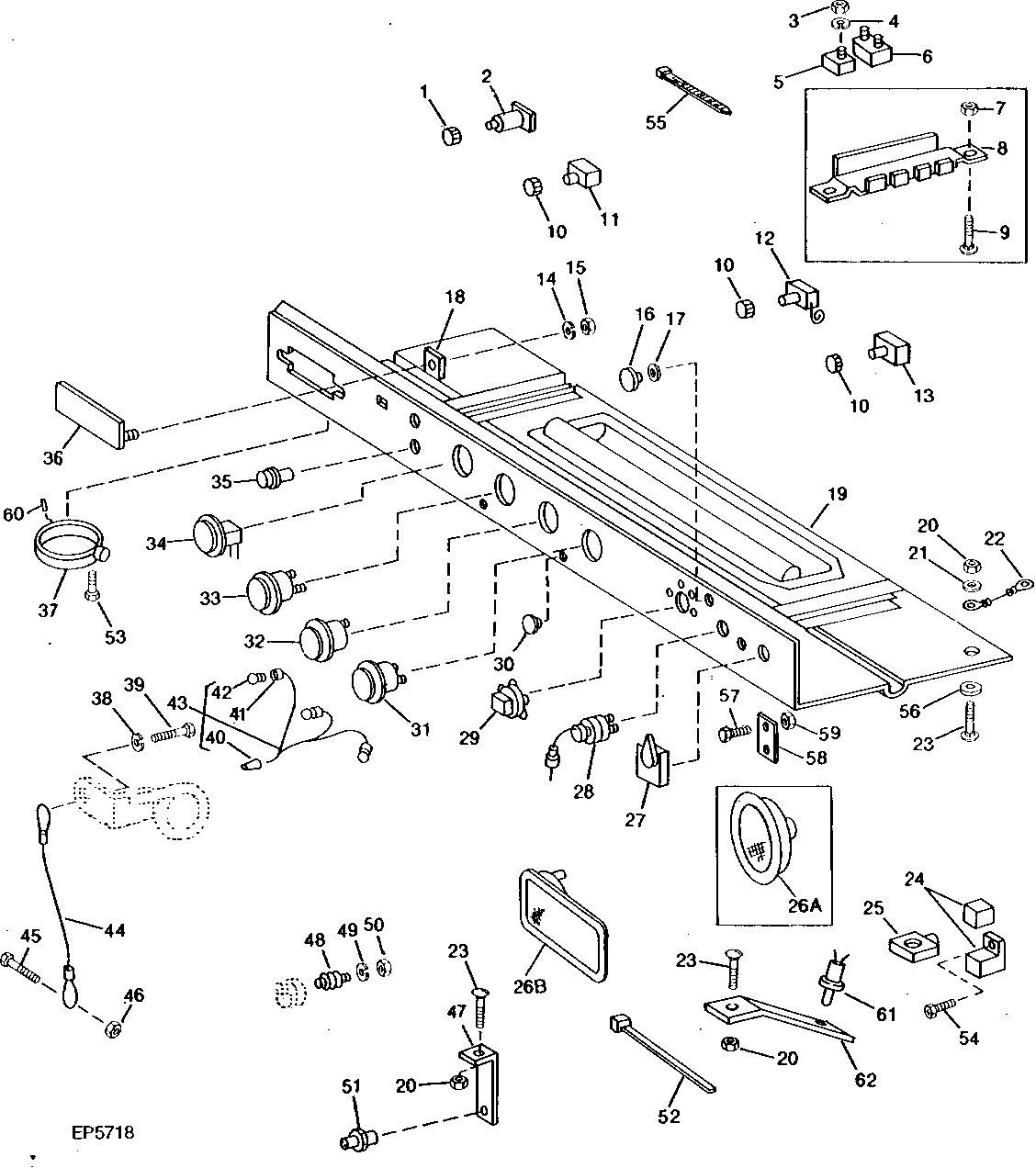

INSTRUMENT PANEL, GAUGES, AND SWITCHES [F07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W36110	1	KNOB	-
2	AW24197	1	VALVE	HEATER
3	14H631	4	Nut	0.190"
4	12H246	4	LOCK WASHER	0.190"
5	AW24114	2	CIRCUIT BREAKER	-
6	AW24113	2	CIRCUIT BREAKER	-
7	R40694	2	Flange Nut	-
8	W35733	1	BRACKET	-
9	03H2092	2	Bolt	1/4" X 3/4"
10	AW23840	2	KNOB	-
11	AW24115	1	SWITCH	WIPER
12	AW23874	1	THERMOSTAT	AIR CONDITIONING
13	AN112771	1	Switch	BLOWER
14	12H302	2	Lock Washer	1/4"
15	14H786	2	Nut	1/4"
16	AW23856	2	KNOB	-
17	24H1287	2	Washer	9/32" X 5/8" X 0.065"
18	W35737	2	WASHER	-
19	AW23843	1	INSTRUMENT PANEL	-
20	N10215	4	Lock Nut	3/8"
21	24H1309	2	Washer	-
22	AW23776	2	CABLE	-
23	03H1765	4	Bolt	3/8" X 3/4"
24	AW23877	1	RELAY	-
25	AT41780	4	AUDIBLE WARNING ALARM	(SUB FOR AW23858)
27	AR64422	1	Turn Signal Controller	FLASHER
28	AM103286	1	SWITCH	IGNITION (INCLUDES KEY AND NUT) (SUB FOR AM32318)
28	M40718	1	Key	IGNITION SWITCH KEY
28	M46820	1	Nut	9/16", IGNITION SWITCH NUT
29	AW23852	1	SWITCH	LIGHT
30	AW24184	2	INDICATOR LIGHT	TURN INDICATIOR
31	AW23859	1	GAUGE	FUEL
32	ES10753	1	TEMPERATURE GAUGE	-
32	AW25026	1	TEMPERATURE GAUGE	WATER, (SUB ES10753)
32	AW23851	1	TEMPERATURE GAUGE	WATER, (SUB ES10753) (ALSO ORDER 15H576 FOR DIESEL MACHINES)
33	AW23850	1	VOLTMETER	-
34	ES10618	1	HOUR METER	(SUB FOR AW23849)
35	AW23847	3	INDICATOR LIGHT	-
36	AW23860	1	COVER	-
37	AW23854	1	LAMP	-
38	12H301	1	Lock Washer	1/2"
39	19H2898	1	Cap Screw	1/2" X 1-1/4" (HS, SAE 8)
40	AW24182	1	TAB	-
41	AW24183	3	SOCKET OUTLET	-
42	AA4927R	3	BULB	-
43	AW23848	1	INDICATOR LIGHT	INSTRUMENT LIGHTS
44	AW23869	1	GROUND CABLE	-
45	T56211	1	Screw	-
46	K40014	1	Lock Nut	1/2"
47	W36271	1	BRACKET	-
48	AW23796	1	SWITCH	HYDRAULIC OIL PRESSURE
49	12H315	1	Lock Washer	0.164"
50	14H605	1	Nut	0.164"
51	AN113534	1	SWITCH	PLATFORM DRIVE NEUTRAL
52	M63300	1	TIE BAND	(SUB FOR M66044 OR E72902, THIS APPLICATION)
53	W35736	3	SCREW	-
54	21H1301	1	SCREW	0.190" X 1/2"
55	R44302	2	Tie Band	-
56	24H1341	2	Washer	17/32" X 15/16" X 0.060"
57	03H2092	2	Bolt	1/4" X 3/4"
58	W36398	1	BAR	-
59	R40694	2	Flange Nut	-
60	AW24182	1	TAB	-
61	AW23832	1	SWITCH	BRAKE
62	W35699	1	BRACKET	-
..	ES10818	1	WIRING HARNESS	FOR INSTALLING 1990 HEADER AND LIGHTS ON 1989 AND EARLIER WINDROWERS
..	ES10739	1	WIRING HARNESS	MAIN
..	AW23857	1	WIRING HARNESS	MAIN
26A	AW23855	1	REAR VIEW MIRROR	-
26B	AW25017	1	REAR VIEW MIRROR	-

INSTRUMENT PANEL, GAUGES, AND SWITCHES [F07]
