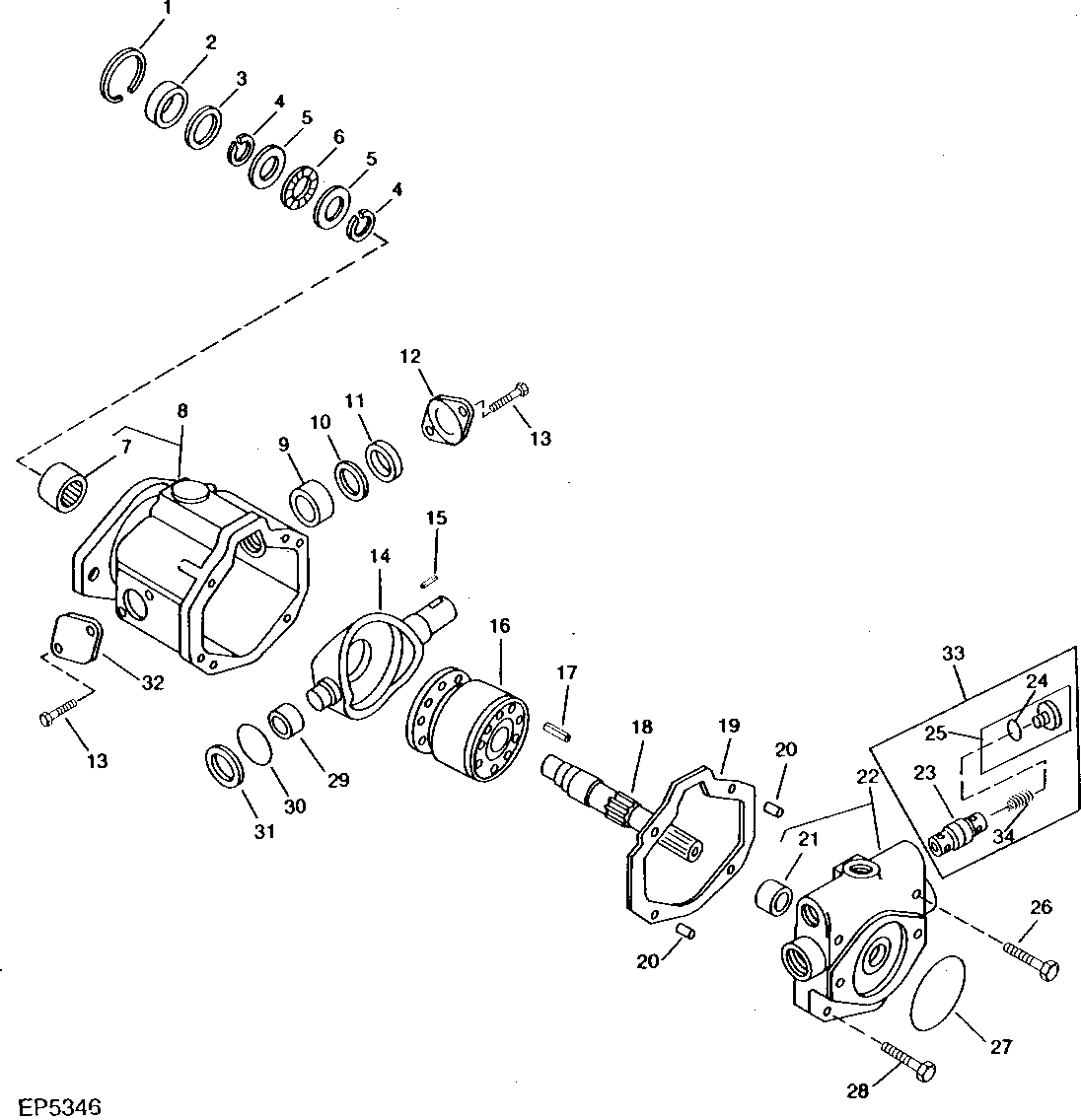

HYDROSTATIC PUMP LEFT-HAND WHEEL [H11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	(K)
2	E55716	1	Seal	(K)
3	E55717	1	Washer	1.595" X 1.991" X 0.083"
4	M42702	2	Snap Ring	-
5	E57805	2	Thrust Bearing Race	(SUB FOR E55761)
6	JD9961	1	Thrust Bearing	(SUB FOR AE33317)
7	AE38359	1	Bearing	-
8	AW23932	1	HOUSING	-
9	JD8813	2	Needle Bearing	-
10	M83438	2	WASHER	-
11	E65252	1	Seal	(K)
12	M83435	1	COVER	-
13	21H1300	4	SCREW	0.190" X 3/8"
14	E65262	1	SWASH PLATE	-
15	H64374	1	Shaft Key	-
16	AE46588	1	KIT	(SUB FOR AE35703)
17	W35805	1	SHAFT KEY	-
18	W35804	1	DRIVE SHAFT	-
19	E65248	1	Gasket	(K)
20	R42882	2	Dowel Pin	(SUB FOR E18044)
21	JD8806	1	Needle Bearing	-
22	AW23933	1	PLATE	-
23	AE46594	2	RELIEF VALVE	(SUB AE49264)
24	N130510	2	O-Ring	(K)
25	AE48670	2	Fitting Plug	INCLUDES PLUG AND O-RING, (SUB FOR AE39372)
26	19H3031	2	Cap Screw	3/8" X 2-1/2" (HS, SAE 8)
27	E66413	1	O-Ring	-
28	19H3065	2	Cap Screw	3/8" X 2" (HS, SAE 8)
29	E65261	1	Bearing Race	-
30	R1138R	1	O-Ring	(K)
31	M83434	1	COVER	-
32	M83426	1	COVER	-
33	AE49264	1	KIT	RELIEF VALVE CONVERSION, (SUB FOR AE39231)
34	E79612	2	Compression Spring	-
..	AE39398	1	SEAL KIT	(INCLUDES KEYS MARKED (K))
..	AW23791	1	HYDRAULIC PUMP	-

HYDROSTATIC PUMP LEFT-HAND WHEEL [H11]
