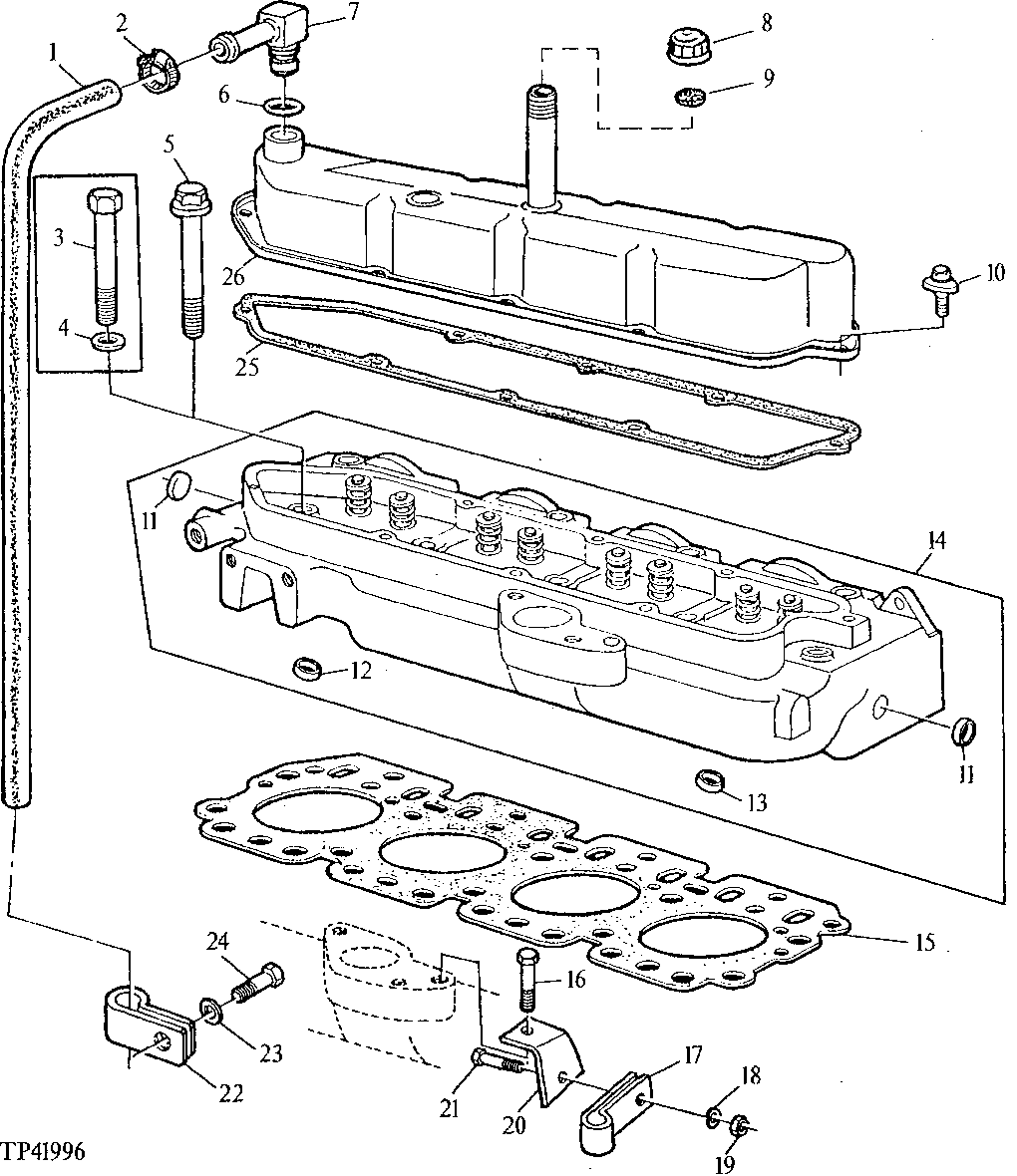

CYLINDER HEAD, ROCKER ARM COVER AND ENGINE VENTILATOR HOSE (DIESEL) [A23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H36031	1	Hose	-
2	AR21839	1	Clamp	-
3	R53223	18	CAP SCREW	12.7MM X 108MM (0.5" X 4.25")
4	T20168	18	Washer	-
5	R85363	18	Cap Screw	12.7MM X 112MM (0.5" X 4.41")
6	R56463	1	O-Ring	-
7	R92154	1	Elbow Fitting	(SUB FOR AT25192)
8	T20294	1	CAP	-
9	T20328	1	Gasket	-
10	AR100124	8	Screw With Washer	-
11	A3910R	2	PLUG	O.D. 25.4MM (1")
11	CD16284	2	Plug	O.D. 32.4MM (1.27")
12	R51734	4	VALVE SEAT INSERT	EXHAUST VALVE
13	R96456	4	VALVE SEAT INSERT	INTAKE VALVE
14	RE35279	1	CYLINDER HEAD	(MARKED R57078)
15	R80242	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R59448)
16	19H2943	1	Cap Screw	1/2" X 3/4" (HS, SAE 8)
17	T29299	1	CLAMP	-
18	12H304	1	Lock Washer	3/8"
19	14H1076	1	Nut	3/8"
20	R60357	1	Angle	-
21	19H1648	1	Cap Screw	3/8" X 3/4" (HS, SAE 8)
22	R72659	1	Clamp	-
23	24M7106	1	Washer	10 X 18 X 2.500 MM
23	24M7096	1	Washer	10.500 X 18 X 1.600 MM
23	12H304	1	Lock Washer	3/8"
24	19H2284	1	Cap Screw	3/8" X 7/8"
25	R73521	1	GASKET	(SUB FOR AR100596)
26	AT22843	1	Valve Cover	-

CYLINDER HEAD, ROCKER ARM COVER AND ENGINE VENTILATOR HOSE (DIESEL) [A23]
