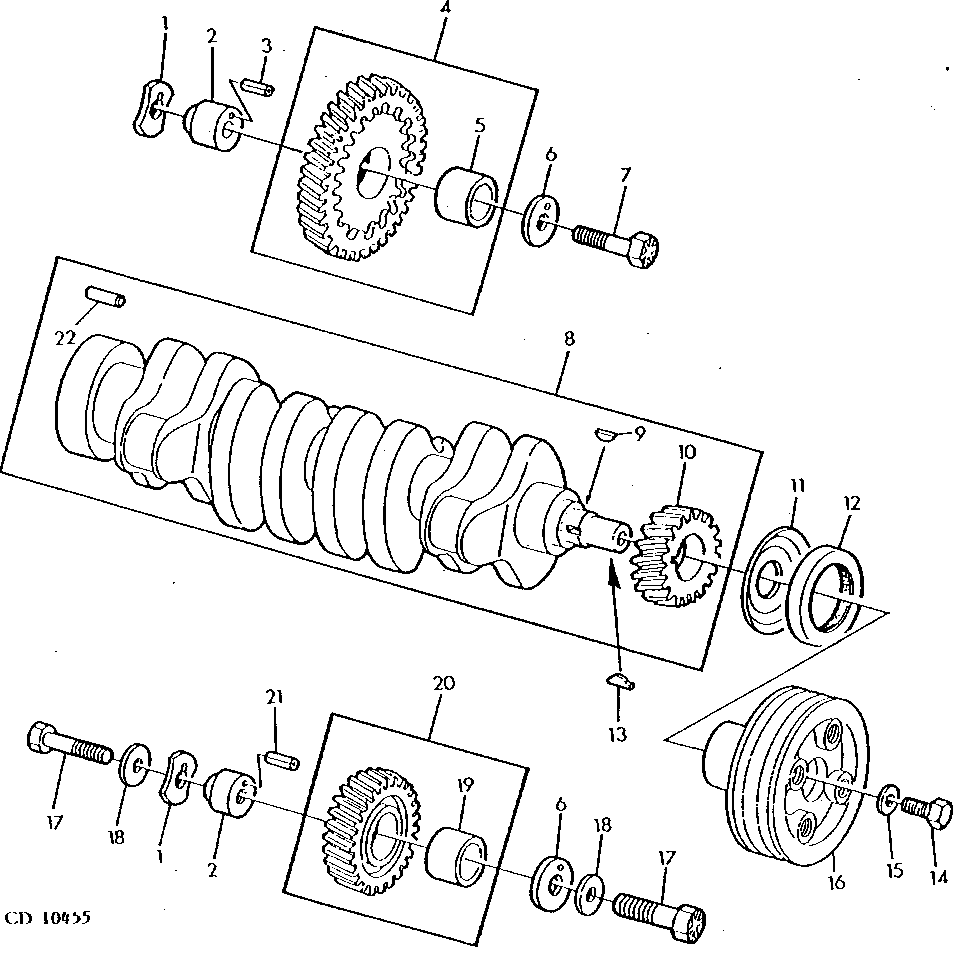

CRANKSHAFT/TIMING GEARS/MAIN BEARINGS (DIESEL) [B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26324	2	THRUST WASHER	-
2	R109863	1	Shaft	UP, (SUB FOR T26323 AND R89824)
2	-	1	Part 3	LOW, (SUB FOR R89825) (ALSO ORDER R109863, P42337 AND 19H3011)
3	34H283	1	Spring Pin	3/16" X 1-1/8"
4	AR91660	1	Gear	UP, Z=55
5	T20034	1	Bushing	UP
6	T26326	2	THRUST WASHER	-
7	T26327	1	Screw	-
8	AT18030	1	CRANKSHAFT	-
9	26H72	1	Shaft Key	1/8" X 5/8"
10	T20094	1	Helical Gear	Z=24
11	T20046	1	Oil Slinger	-
12	RE44574	1	Seal	-
13	T23604	1	SHAFT KEY	(USE WITH R70443)
13	26H27	1	Shaft Key	5/16" X 1-1/8", (USE WITH R85389)
14	19H1721	1	CAP SCREW	1/2" X 1-1/2"
14	19H2473	1	Cap Screw	1/2" X 1-3/4" (HS, SAE 8)
15	T20217	1	Washer	TK=6MM (0.236")
15	R109086	1	Spacer	TK=12MM (0.472") (SUB FOR CD16045)
16	R70443	1	PULLEY	(USE WITH T23604)
16	R85389	1	Pulley	(USE WITH 26H27)
17	T26325	2	SCREW	-
18	R76126	2	Washer	-
19	T26321	1	Bushing	LOW
20	AT24252	1	GEAR	LOW, Z=45
21	34H286	1	Spring Pin	3/16" X 1-1/2"
22	R48685	1	Dowel Pin	(SUB FOR T26565 OR A120R)
..	E50978	1	SHEAVE	COMPRESSOR DRIVE (MOUNT TO CRANKSHAFT PULLEY)
..	N202177	1	PULLEY	COMPRESSOR DRIVE (MOUNT TO CRANKSHAFT PULLEY)
..	19H1732	4	Cap Screw	3/8" X 1-1/4", FOR MOUNTING COMPRESSOR DRIVE PULLEY
