SELECTIVE CONTROL VALVE LINKAGE (POPPET AND SPOOL TYPE) SGB

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L56932	1	Grip	-
2	L56933	1	Grip	-
3	L57635	1	Grip	(FOR THREE SELECTIVE CONTROL VALVES)
4	R56479	1	Stop	-
5	L38168	1	Pin Fastener	-
6	L38224	1	Lever	(FOR THREE SELECTIVE CONTROL VALVES)
7	24M7055	3	Washer	8.400 X 16 X 1.600 mm
8	12M7056	3	Lock Washer	8 mm
9	19H1900	3	Cap Screw	5/16" X 3/4"
10	L38223	1	Lever	-
11	40M7039	6	Snap Ring	-
12	AL38250	1	Shaft	-
13	AL38251	1	Shaft	(FOR THREE SELECTIVE CONTROL VALVES)
14	R42093	6	Grommet	-
15	R50012	2	Lever	-
16	L61307	3	Spring Pin	(SUB FOR 34H313 APPL)
17	45M7065	2	Spring Locking Pin	8 X 32MM
18	54M4420	2	Yoke	8 X 32MM
19	14M7151	1	Nut	M8
20	AL64366	1	Lever	(FOR THREE SELECTIVE CONTROL VALVES)
21	AL36465	1	Rod	(ORD L38556, 56M7003, 56M7004, 14M7151)
22	34M7028	2	Spring Pin	4 X 22 mm
23	AL57830	1	Lever	-
24	AL41698	1	Arm	-
25	56M7004	1	Ball Joint Retainer	(FOR THREE SELECTIVE CONTROL VALVES)
26	56M7003	1	Ball Joint Socket	(FOR THREE SELECTIVE CONTROL VALVES) (ORD W/ 56M7004)
27	14M7273	2	Nut	(FOR THREE SELECTIVE CONTROL VALVES) M8
28	42M7034	1	Stud	(FOR THREE SELECTIVE CONTROL VALVES) M8 X 50
29	AL36463	1	Rod	(ORD L38555, 56M7003, 56M7004, 14M7151)
30	L38222	1	Lever	-
31	AL38249	1	Shaft	-
32	L42073	1	Sign	-
33	L42072	1	Sign	-
34	L55026	1	Sign	-
35	L42074	1	Sign	-
36	L55028	1	Sign	-
37	14M7327	1	Lock Nut	M8
38	55M7005	1	Ball Stud	-
39	L38556	1	Lever	-
40	L38555	1	Lever	-

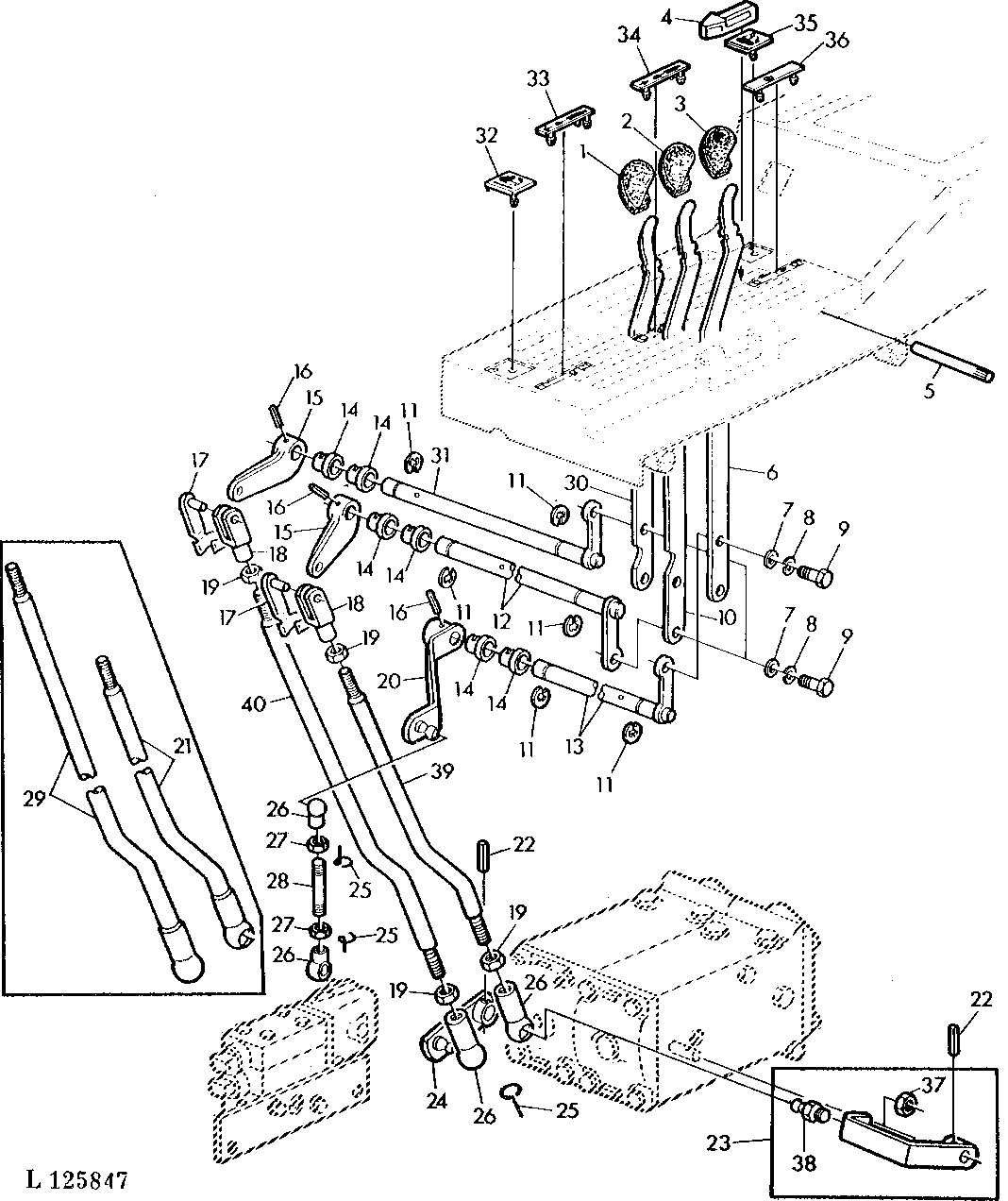

SELECTIVE CONTROL VALVE LINKAGE (POPPET AND SPOOL TYPE) SGB
