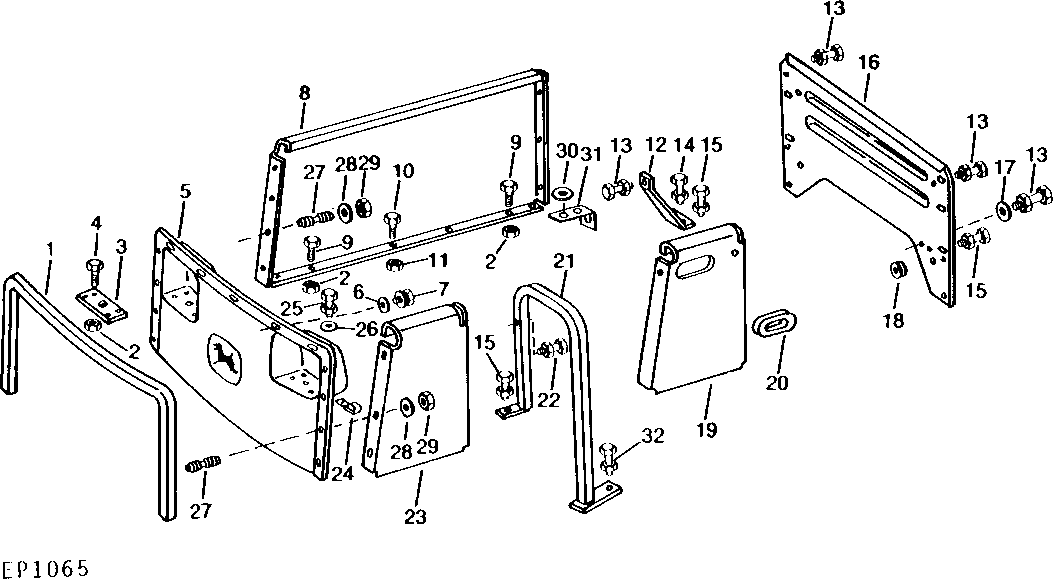

OPERATOR'S PLATFORM PANELS AND HAND RAIL [02B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E61765	1	TUBE	-
2	N10215	1	Lock Nut	-
3	E63335	2	REINFORCEMENT	HEADLAMP
4	19H2021	8	Cap Screw	3/8" X 5/8"
5	E61592	1	PANEL	FRONT
6	24H1283	13	Washer	7/32" X 1/2" X 0.049"
6	24H1283	5	Washer	7/32" X 1/2" X 0.049"
7	37H137	13	Screw	0.190" X 5/8"
7	37H137	5	Screw	0.190" X 5/8"
8	AE37735	1	PANEL	R.H.
9	19H2676	1	Cap Screw	3/8" X 1" HS, SAE 8
10	19H2472	2	Cap Screw	1/2" X 1" HS, SAE 8
11	E54809	2	Lock Nut	(SUB FOR E62934)
12	E60800	1	BRACE	L.H. REAR PANEL
13	19H1936	1	Cap Screw	3/8" X 3/4"
13	N10215	1	Lock Nut	-
14	19H2472	1	Cap Screw	1/2" X 1", HS, SAE 8
14	E54809	1	Lock Nut	(SUB FOR E62934)
15	19H2676	1	Cap Screw	3/8" X 1", HS, SAE 8
15	N10215	1	Lock Nut	-
16	E58302	1	PANEL	REAR
17	24H1313	1	Washer	13/32" X 1-3/4" X 0.065"
18	B30667	4	Grommet	-
19	AE34699	1	PANEL	L.H. REAR
20	R20759	1	Grommet	-
21	AE38870	1	HANDRAIL	-
22	19H3065	1	Cap Screw	3/8" X 2" HS, SAE 8
22	N10215	1	Lock Nut	-
23	AE36827	1	PANEL	L.H. FRONT
24	AH89557	2	Clip	(SUB FOR N10011 OR T19935)
25	19H3239	2	Cap Screw	3/8" X 1-1/4" HS, SAE 8
25	14H1076	2	Nut	3/8"
26	24H1307	2	Washer	13/32" X 1" X 1/16"
27	E67497	8	STUD	-
28	24H1287	8	Washer	9/32" X 5/8" X 0.065"
29	14H860	8	Nut	1/4", UNF
30	24H1308	2	Washer	13/32" X 1" X 0.134", (LESS CAB)
31	E63277	1	BRACKET	LESS CAB
32	19H3239	1	Cap Screw	3/8" X 1-1/4", HS, SAE 8
32	N10215	1	Lock Nut	-

OPERATOR'S PLATFORM PANELS AND HAND RAIL [02B03]
