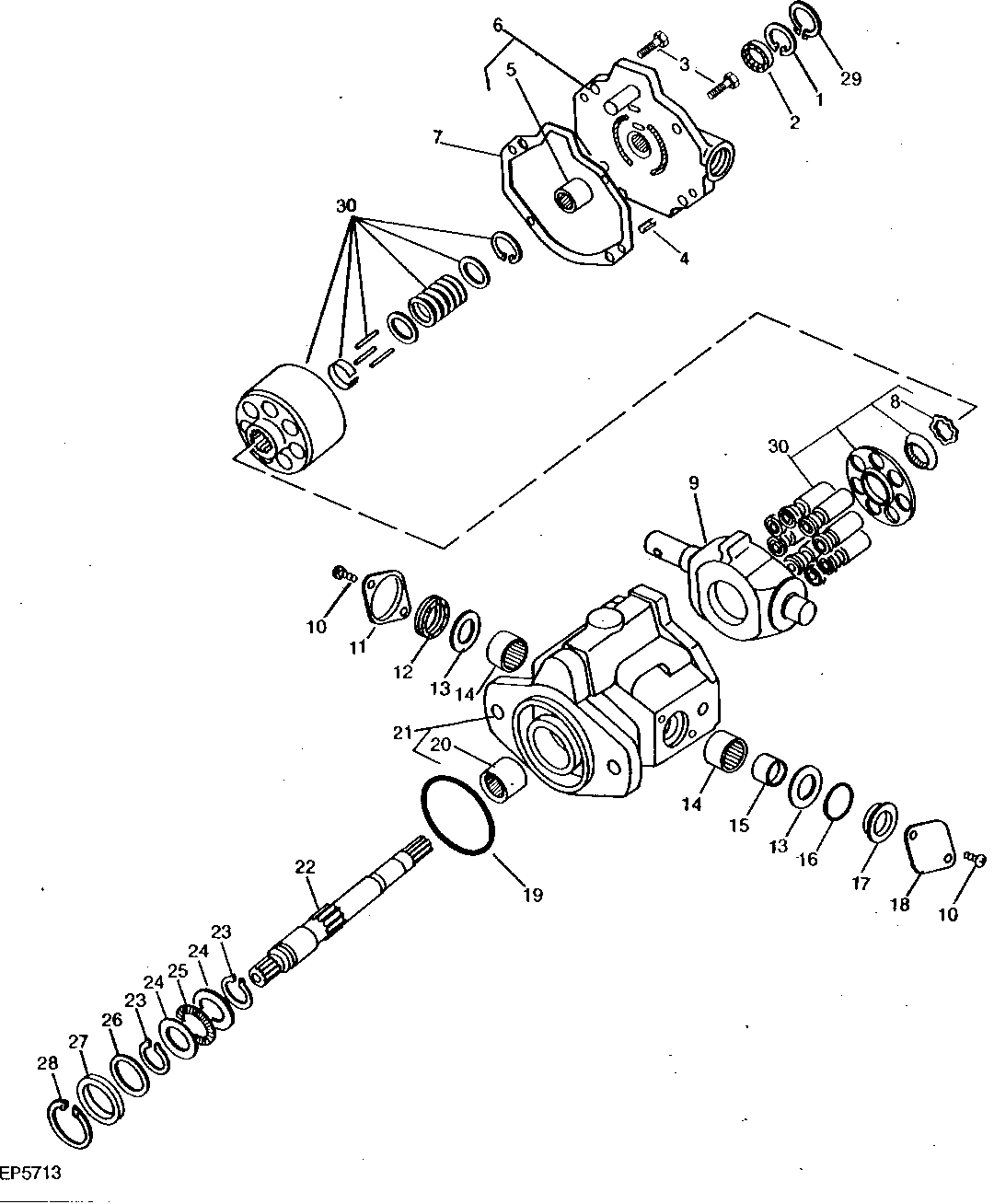

HYDROSTATIC TRANSMISSION L.H. WHEEL MOTOR [01H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M41029	1	Snap Ring	(A) (SUB FOR U16538)
2	E65290	1	Seal	(A)
3	19H3239	4	Cap Screw	3/8" X 1-1/4"
4	34H308	2	Spring Pin	1/4" X 1/2"
5	JD8806	1	Needle Bearing	-
6	AE39247	1	PLATE	-
7	E65248	1	Gasket	(A)
8	E71153	1	LOCK WASHER	-
9	E66411	1	SWASH PLATE	L.H.
10	21H1300	4	SCREW	0.190" X 3/8"
11	M83435	1	COVER	(B)
12	E65252	1	Seal	(A)
13	M83438	2	WASHER	(B)
14	JD8813	2	Needle Bearing	-
15	E65261	1	Bearing Race	-
16	R1138R	1	O-Ring	-
17	M83434	1	COVER	(B)
18	M83426	1	COVER	(B)
19	T42302	1	O-Ring	-
20	AE38359	1	Bearing	(SUB FOR AE33351)
21	AE40026	1	HOUSING	(INCLUDES KEY 4)
22	E70710	1	SHAFT	(SUB FOR E65250)
23	M42702	2	Snap Ring	(A) (SUB FOR R57796)
24	E57805	2	Thrust Bearing Race	(SUB FOR E55761)
25	JD9961	1	Thrust Bearing	(SUB FOR AE33317)
26	E55717	1	Washer	-
27	E55716	1	Seal	(A)
28	N51168	1	Snap Ring	(A) (SUB FOR E55715)
29	T53977	1	SNAP RING	-
30	AE46587	1	KIT	ROTATING, (SUB FOR AE39226)
..	AE43047	1	MOTOR	COMPLETE, (SUB FOR AE37163)
..	AE40032	1	SEAL KIT	(INCLUDES ALL PARTS IDENTIFIED BY (A))
..	AE39396	1	KIT	(INCLUDES ALL PARTS IDENTIFIED BY (B)) (SUB M83435, M83426, M83434 AND (2) M83438)

HYDROSTATIC TRANSMISSION L.H. WHEEL MOTOR [01H05]
