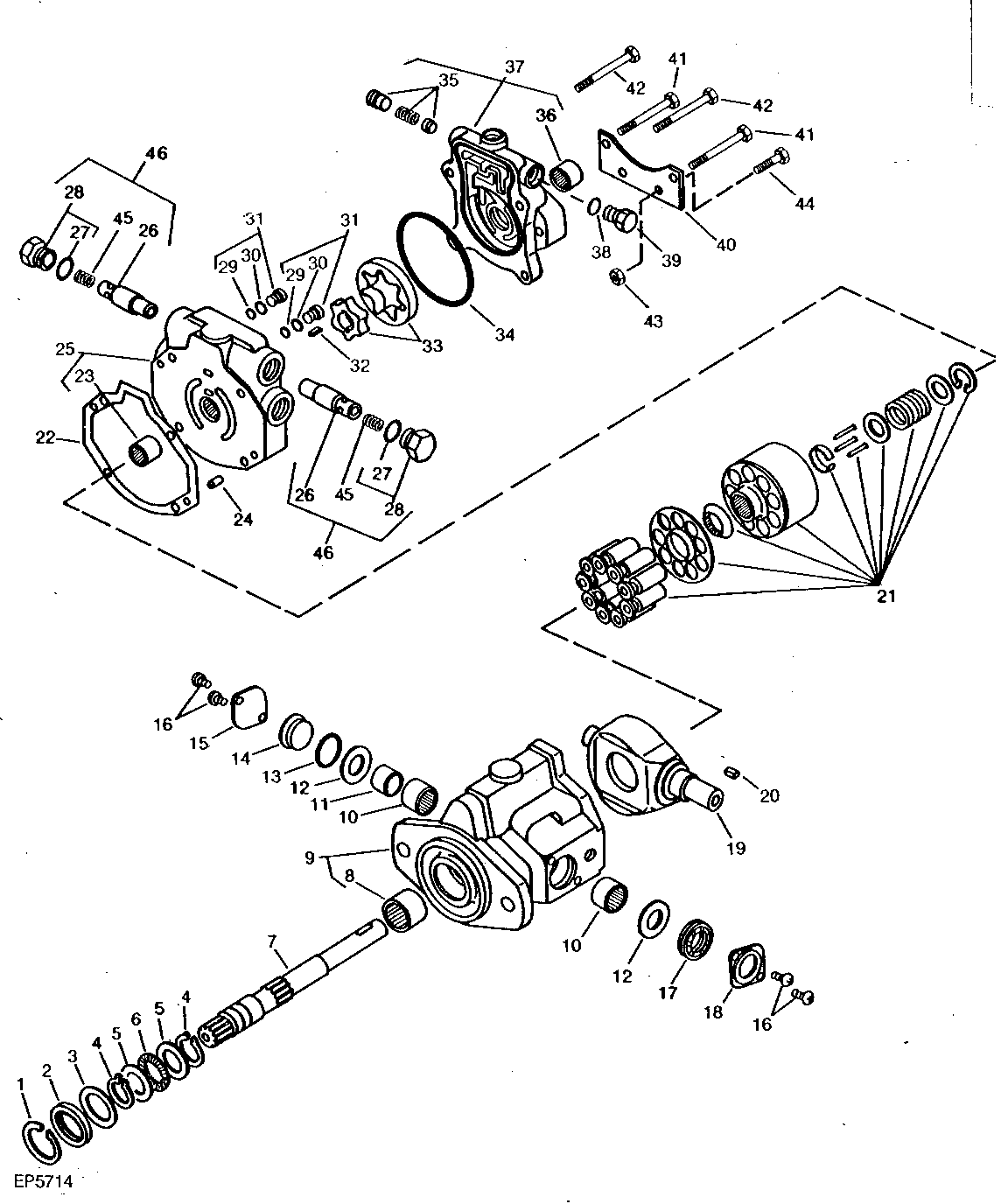

HYDROSTATIC TRANSMISSION FRONT PUMP [01G19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	(A) (SUB FOR E55715)
2	E55716	1	Seal	(A)
3	E55717	1	Washer	-
4	M42702	2	Snap Ring	(A) (SUB FOR R57796)
5	E57805	2	Thrust Bearing Race	(SUB FOR E55761)
6	JD9961	1	Thrust Bearing	(SUB FOR AE33317)
7	E65260	1	ROCKSHAFT	-
8	AE38359	1	Bearing	(SUB FOR AE33351)
9	AE39239	1	HOUSING	-
10	JD8813	2	Needle Bearing	-
11	E65261	1	Bearing Race	-
12	M83438	2	WASHER	(B)
13	R1138R	1	O-Ring	(A)
14	M83434	1	COVER	(B)
15	M83426	1	COVER	(B)
16	21H1300	4	SCREW	0.190" X 3/8"
17	E65252	1	Seal	(A)
18	M83435	1	COVER	(B)
19	E65262	1	SWASH PLATE	-
20	H64374	1	Shaft Key	(SUB FOR M83425)
21	AE46588	1	KIT	ROTATING, (SUB FOR AE35703)
22	E65248	1	Gasket	(A)
23	JD8806	1	Needle Bearing	-
24	R42882	2	Dowel Pin	(SUB FOR E18044)
25	AE43412	1	PLATE	(SUB FOR AE39241)
26	AE46594	2	RELIEF VALVE	(SUB FOR AE39231) (SUB AE49264)
27	N130510	2	O-Ring	(A)
28	AE48670	2	Fitting Plug	-
29	L34378	2	O-Ring	(A) (SUB FOR T42793 AND T36492)
30	T27624	2	BACK-UP RING	(A)
31	AE39232	2	CHECK VALVE	-
32	GG180-32052	1	SHAFT KEY	-
33	AE39233	1	KIT	GEROTOR
34	E65286	1	O-Ring	(A)
35	AE39397	1	KIT	(A) ADAPTER
36	JD8804	1	Needle Bearing	(SUB FOR AE39402)
37	AE39230	1	ADAPTER FITTING	PUMP
38	R26375	1	O-Ring	(A)
39	R39112	1	Fitting	-
40	E65254	1	BRACKET	-
41	19H3445	2	Cap Screw	3/8" X 3-3/4" HS, SAE 8
42	19H3404	2	Cap Screw	3/8" X 4", HS, SAE 8
43	14H785	2	Nut	5/16"
44	19H2705	2	Cap Screw	5/16" X 1", HS, SAE 8
45	E79612	2	Compression Spring	-
46	AE49264	2	KIT	(SUB FOR AE39372)
..	AE43415	1	HYDRAULIC PUMP	COMPLETE, (SUB FOR AE39240)
..	AE39398	1	SEAL KIT	(INCLUDES PARTS IDENTIFIED BY (A))
..	AE39396	1	KIT	SEAL COVER (INCLUDES PARTS IDENTIFIED BY (B)) (SUB M83435, M83426, M83434 AND (2) M83438)
