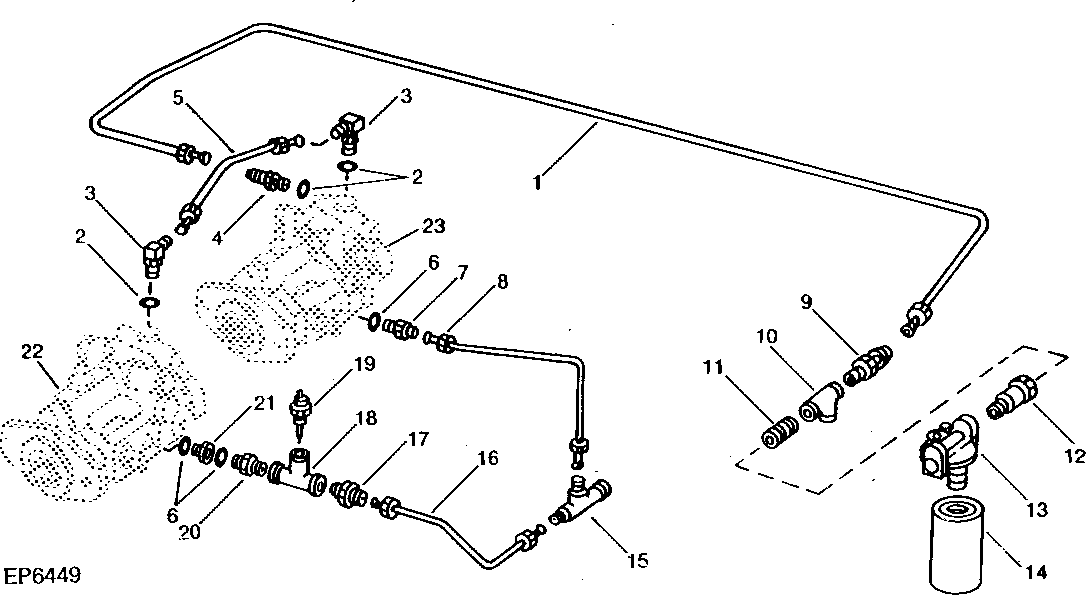

HYDRAULIC LINES (OIL FILTER - CHARGE INLET - CHARGE LOOP - PUMP DRAINS) [01I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE37715	1	OIL LINE	-
2	R26375	3	O-Ring	-
3	AT32332	2	Elbow Fitting	90°, (SUB FOR AR26763)
4	T33190	1	Adapter Fitting	-
5	AE37716	1	OIL LINE	-
6	R26448	3	O-Ring	-
7	R27212	1	Fitting	-
8	AE37714	1	OIL LINE	-
9	X12FTX-S	1	Adapter Fitting	(SUB FOR E32399)
10	15H599	1	Tee Fitting	3/4"
11	29H599	1	THREADED NIPPLE	3/4" X 1-3/8"
12	AT32755	1	Adapter Fitting	WITH O-RING
13	AE39120	1	Filter Head	(SUB FOR AT63421, THIS APPLICATION)
14	AT120444	1	Oil Filter	(SUB FOR AT63557, AT69852 OR AE44880)
15	H34351	1	TEE FITTING	-
16	AE37713	1	OIL LINE	-
17	T38693	1	Fitting	-
18	15H587	1	Tee Fitting	1/2"
19	AH93305	1	SWITCH	HYDROSTATIC FLUID TEMPERATURE, (SUB AT112085)
19	AT112085	1	Switch	-
20	C19280	1	Adapter Fitting	-
21	N155442	1	Adapter Fitting	-
22	AE43414	1	HYDRAULIC PUMP	REAR
23	AE43415	1	HYDRAULIC PUMP	FRONT
