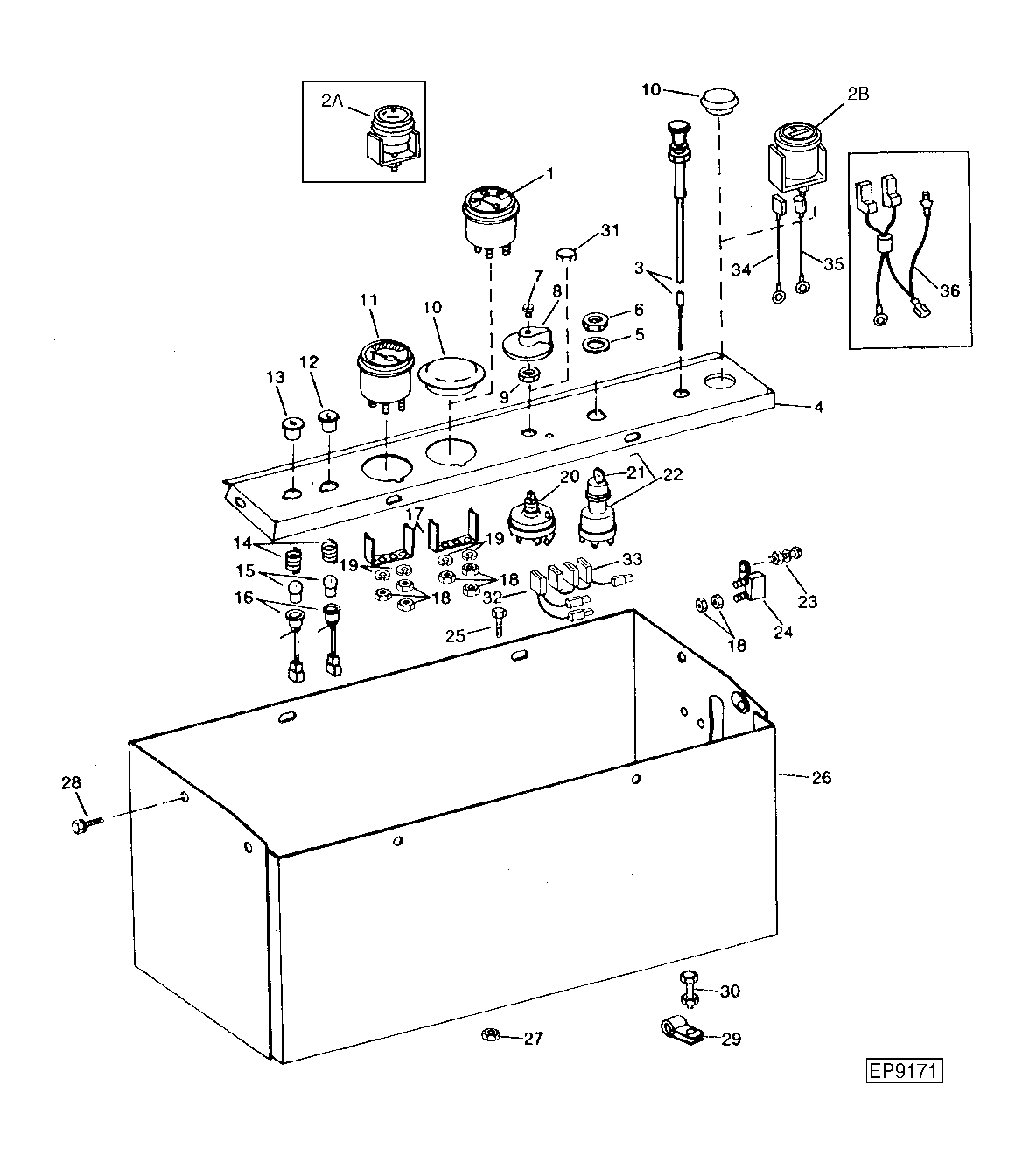

2320 CONSOLE, GAUGES AND SWITCHES [02B23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT61468	1	GAUGE	FUEL, (SUB FOR AT39733)
3	AE29405	1	CABLE	CHOKE
4	E58301	1	PANEL	L.H. TOP (WITH CAB) (ILLUSTRATED)
4	E65413	1	PANEL	L.H. TOP (LESS CAB)
5	A4827R	1	Washer	(USE WITH AR58126)
5	12H326	1	Lock Washer	9/16", (USE WITH AM30269 OR AM32318)
6	R44342	1	Nut	(USE WITH AR58126 OR AM30269)
6	M46820	1	Nut	(USE WITH AM32318)
7	21H973	1	Screw	0.164" X 3/8"
8	AT65316	1	KNOB	(SUB FOR R27963)
9	A4655R	1	Nut	1/2"
10	E65195	1	PLUG	-
10	E65195	2	PLUG	-
11	AT149018	1	GAUGE	COOLANT, (SUB FOR AT37410 AND AT61467) ALSO ORDER AE59682 FOR GAS ENGINE
12	AT48673	1	LENS	ALTERNATOR, (SUB FOR AR45438)
13	AT48674	1	LENS	OIL PRESSURE, (SUB FOR AR45437)
14	R30378	2	Spring	-
15	AR55694	2	BULB	-
16	AT44165	2	WIRING LEAD	-
17	T39395	2	BRACKET	-
18	14H631	8	Nut	0.190", UNF
19	12M7060	6	Washer	5.300 MM (0.209")
19	12H295	6	Lock Washer	4.826 MM (0.190")
20	AR28401	1	SWITCH	-
20	AH76134	1	Switch	-
21	AR51481	1	Key	(USE WITH AR58126) (SUB AT195302)
21	AT195302	1	Key	(USE WITH AR58126)
21	M40718	1	Key	(USE WITH AM30269, AM32318 OR AM103286) (SUB FOR AM30700)
22	AR58126	1	Rotary Switch	(WITH CAB)
22	AM103286	1	SWITCH	(LESS CAB) (INCLUDES M46820 NUT AND M40718 KEY) (SUB FOR AM32318) (SUB FOR AM30269, THIS APPLICATION)
23	21H1275	2	Screw	4.826 X 12.700 MM (0.190" X 1/2") UNF
23	12H246	2	LOCK WASHER	4.826 MM (0.190")
23	14H631	2	Nut	0.190", UNF
24	AR55649	1	CIRCUIT BREAKER	10 AMP
25	19H2676	4	Cap Screw	3/8" X 1", HS, SAE 8
26	AE34697	1	HOUSING	-
27	N10215	4	Lock Nut	3/8"
28	N167649	8	Screw	5/16" X 1/2", (SUB FOR T43291)
29	E51603	1	Clamp	-
30	19H1936	1	Cap Screw	3/8" X 3/4"
30	N10215	1	Lock Nut	3/8"
31	M42229	1	PLUG	-
32	AE42547	1	WIRING HARNESS	(WORK LIGHT JUMPER)
33	AE42546	1	WIRING HARNESS	(POWER JUMPER)
34	AE42078	1	WIRING LEAD	-
35	AM54641	1	WIRING LEAD	(GROUND)
36	AM37023	1	Wiring Harness	-
2A	AM120893	1	Hour Meter	(SUB FOR AM36345, AM115625 OR AM100385) (ALSO ORDER M121675) (SUB AM125427)
2B	AM125427	1	Hour Meter	(ALSO ORDER M121675)

2320 CONSOLE, GAUGES AND SWITCHES [02B23]

Нет текстового описания
