CONTROLS, PILOT, ROCK DRILL HYDRAULICS

CONTROLS, PILOT, ROCK DRILL HYDRAULICS

CONTROLS, PILOT, ROCK DRILL HYDRAULICS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

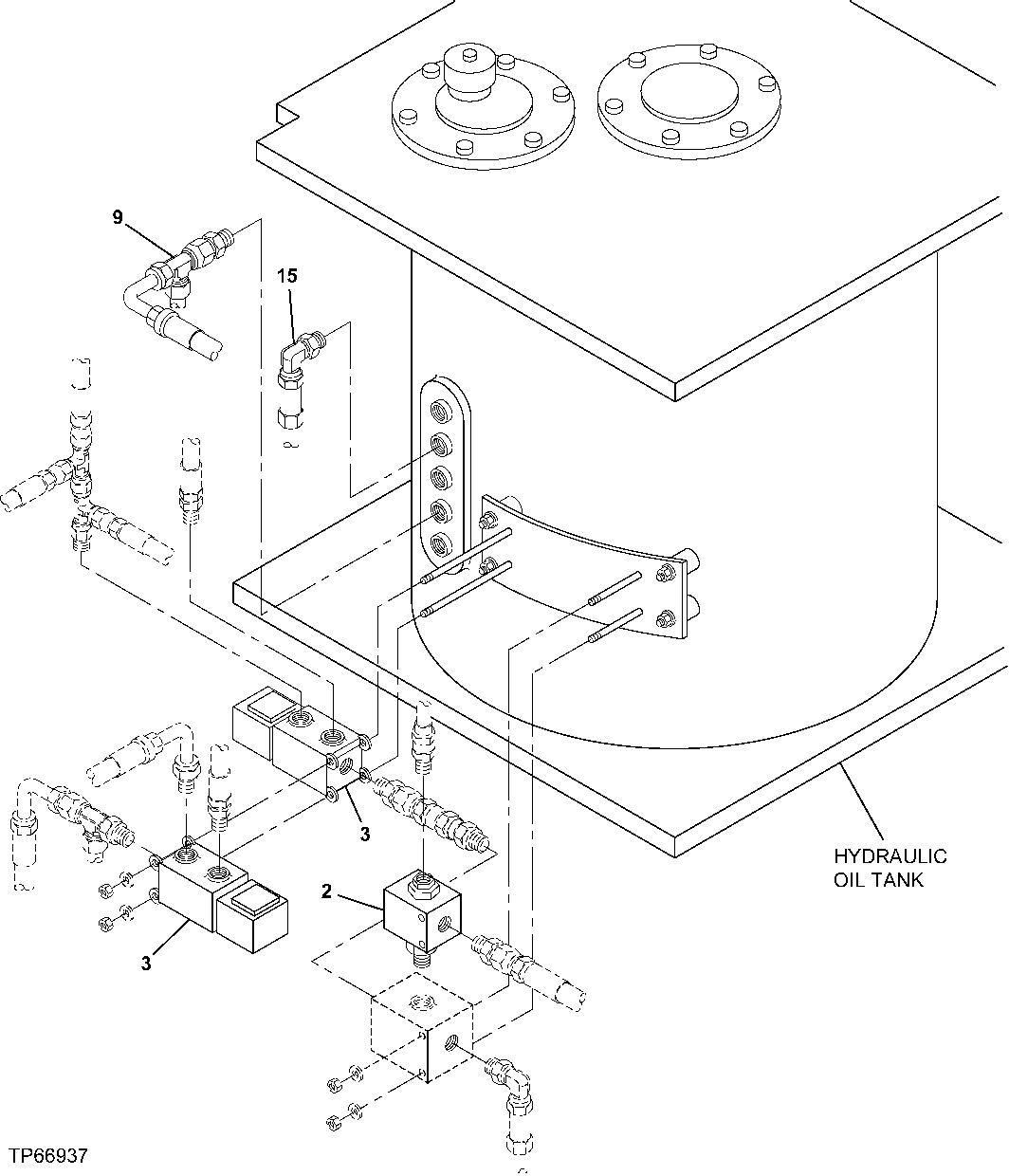

CONTROLS, PILOT, ROCK DRILL HYDRAULICS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE52955	2	Adapter Fitting	(NOT ILLUSTRATED) (IN OUTPUT SIDE OF SHUTTLE VALVE)
2	AH91325	1	CHECK VALVE	(ATTACH TO ELBOW AT SOLENOID MANIFOLD, REAR SIDE)
3	AT306723	2	Elec.Proportional Valve	(SUB FOR AT116486 AND AT140041)(MOUNT TO LONGER SCREWS FACED IN OPPOSITE DIRECTION OF HANDHELD SOLENOID VALVE)
3	-	1	Part 4	( AT140041 NO LONGER AVAILABLE)
4	AT130053	1	Adapter Fitting	(NOT ILLUSTRATED) (IN TOP OF AUXILIARY VALVE SPOOL)
5	AT186966	2	Hydraulic Hose	(NOT ILLUSTRATED) (SOLENOID VALVE PORT 1 TEE TO TEE AT RESERVOIR) (SHUTTLE VALVE TEE TO TOP OF AUXILIARY SPOOL)
6	AT186968	1	Hydraulic Hose	(NOT ILLUSTRATED) (BOTTOM OF AUXILIARY SPOOL TO RETURN ELBOW AT RESERVOIR)
7	AT213824	1	Hydraulic Hose	(NOT ILLUSTRATED) (PORT 4 OF TOOL SOLENOID VALVE TO PORT 3 OF ROCK DRILL SOLENOID VALVE)
8	AT35121	2	Elbow Fitting	(NOT ILLUSTRATED) (PORT 3 OF SOLENOID VALVE) (SIDE OF SHUTTLE VALVE, ATTACH HOSE FROM SHUTOFF VALVE)
9	AT36921	1	Tee Fitting	(PORT 4 OF FLOW DIVIDER VALVE TO TEE AT RESERVOIR RETURN)
10	AT37518	2	Tee Fitting	(NOT ILLUSTRATED) (PORT 1 OF SOLENOID VALVE AND SIDE PORT OF SHUTTLE VALVE)
11	AT38635	1	Hydraulic Hose	(NOT ILLUSTRATED) (SOLENOID VALVE PORT 4 TO SHUTTLE VALVE TEE)
12	CH11570	4	O-Ring	(NOT ILLUSTRATED) (ON BSPP FITTINGS-RESERVOIR ELBOW AND AT130053 ADAPER IN AUXILIARY SECTION)
13	R26448	7	O-Ring	(NOT ILLUSTRATED) (ON ALL-6 O-RING FITTINGS AT VALVE PORTS)
14	R27212	2	Fitting	(NOT ILLUSTRATED) (PORT 2 AND 4 OF SOLENOID VALVE)
15	A852333	1	Elbow Fitting	(SUB FOR TH101047 ) (SUB FOR 4154671)(IN RESERVOIR RETURN PORT SECOND FROM TOP)
16	4200466	1	Adapter Fitting	(SUB FOR TH108320)(NOT ILLUSTRATED) (IN BOTTOM OF AUXILIARY VALVE SPOOL)
17	19M6641	2	Screw	M6 X 80, (SUB FOR 19M8482)(NOT ILLUSTRATED) (ATTACH SOLENOID VALVES TO MOUNTING PLATE)
18	38H1257	1	Tee Fitting	(NOT ILLUSTRATED) (TO ADAPTER FITTING ON MAJOR RETURN LINE TO RESERVOIR)
