CONTROLS, PILOT, FOR HAND HELD TOOLS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

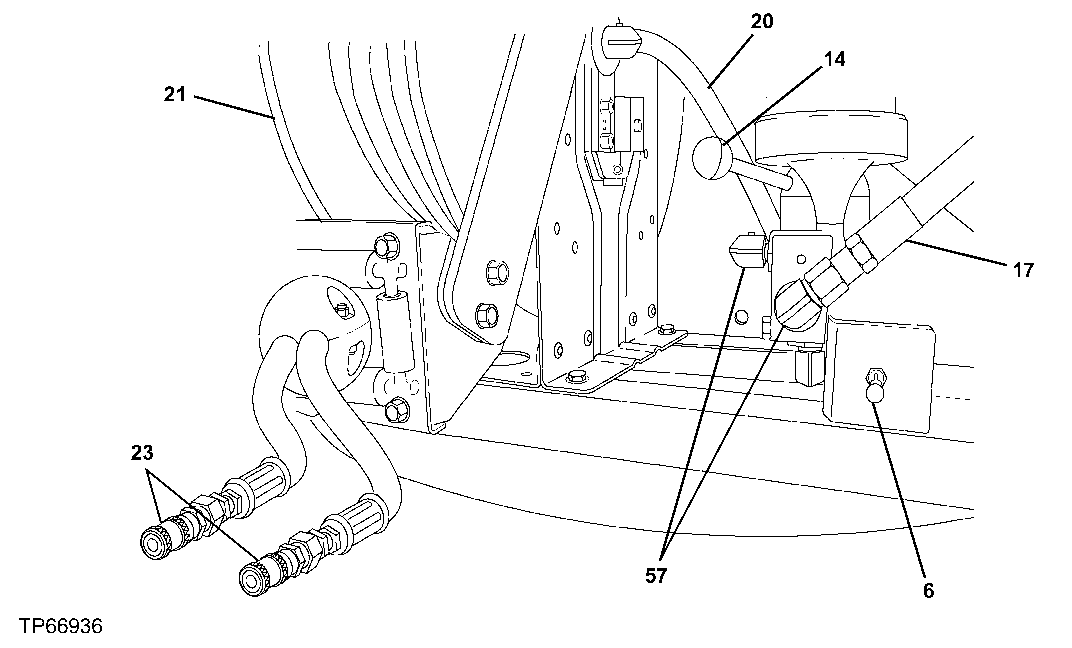

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE24616	1	Elbow Fitting	(NOT ILLUSTRATED) (ON PILOT FILTER FITTING TO HOSE)
2	AE35617	1	Tee Fitting	(NOT ILLUSTRATED) (TO ARM I SPOOL)
3	AE49297	1	Fitting	(9/16 O-RING UNION), (NOT ILLUSTRATED) (PORT 1 OF PRESSURE REDUCING VALVE TO SHUTTLE CHECK VALVE)
4	AE52955	2	Adapter Fitting	(NOT ILLUSTRATED)(PORT 1 OF SOLENOID VALVE) (TO ARM II SPOOL)
5	AH91325	2	CHECK VALVE	(NOT ILLUSTRATED) (PORT 1 OF PRESSURE REDUCING VALVE) (AT SHUTTLE CHECK VALVE AT TOP OF ARM II SPOOL)
6	AT101938	1	Switch	(HOSE REEL AND CONTROL VALVE MOUNTING BRACKET)
7	AT306723	1	Elec.Proportional Valve	(SUB FOR AT116486 AND AT140041)(NOT ILLUSTRATED) (ACTUATES ARM II SPOOL FOR HANDHELD TIIL CIRCUIT)
7	-	1	Part 8	( AT140041 NO LONGER AVAILABLE)
8	AT130053	1	Adapter Fitting	(NOT ILLUSTRATED) (SHUTTLE CHECK VALVE-TOP OF ARM II SPOOL, REPLACES CONNECTOR TUBE ASSEMBLY BETWEEN ARM I AND ARM II)
9	AT152968	1	Hydraulic Hose	(NOT ILLUSTRATED) (FROM SHUTTLE VALVE TO PUMP REGULATOR VALVE ON RESERVOIR)
10	AT183797	1	Adapter Fitting	-
11	AT186623	1	Hydraulic Pressure Valve	(NOT ILLUSTRATED) (BRACKET ON HYDRAULIC TANK)
12	AT186773	1	Union Fitting	-
13	AT186776	1	Hydr./Pilot Control Valve	(NOT ILLUSTRATED) (ARM II SPOOL ADAPTERS)
14	AT186777	1	Flow Control Hyd. Valve	(FOR HANDHELD TOOL HYDRAULICS)
15	AT186966	2	Hydraulic Hose	(NOT ILLUSTRATED) (ARM II SHUTTLE VALVE TO ARM I TEE) (PORT 3 OF CHECK VALVE TO SOLENOID VALVE PORT 4)
16	AT186968	2	Hydraulic Hose	(NOT ILLUSTRATED) (PRIORITY VALVE PORT 4 TO RESERVOIR RETURN TEE)
17	AT186984	1	Hydraulic Hose	(FLOW DIVIDER TO OIL COOLER RETURN)
18	AT186985	1	Hydraulic Hose	(NOT ILLUSTRATED) (HOSE REEL DRAIN HOSE)
19	AT186986	1	Hydraulic Hose	(NOT ILLUSTRATED) (CHECK VALVE TO SELECTOR VALVE)
20	AT186987	1	Hydraulic Hose	(SELECTOR VALVE TO HOSE REEL)
21	AT187224	1	Hose Reel Caddy	(IN COMPARTMENT BEHIND CAB)
22	AT187225	1	Hydraulic Hose	-
23	AT187226	2	Cover	-
24	AT187227	1	Stop	-
25	AT187228	1	Support	-
26	AT187855	1	Quick Coupler	(NOT ILLUSTRATED) (END OF HOSE ON HOSE REEL)
27	AT187856	1	Quick Coupler	(NOT ILLUSTRATED) (END OF HOSE ON HOSE REEL)
28	AT188551	1	Wiring Harness	-
29	4283435	1	Hydraulic Hose	(SUB FOR AT201205)(NOT ILLUSTRATED) (PILOT FILTER TO SOLENOID VALVE)
30	AT35121	1	Elbow Fitting	(NOT ILLUSTRATED) (PORT 2 OF PRESSURE REDUCING VALVE)
31	AT36921	3	Tee Fitting	(NOT ILLUSTRATED) (ADAPTER PORT 1 OF SOLENOID VALVE TO ADAPTER PORT 3 OF PRESSURE REDUCING VALVE) (TO TEE AT PORT 4 OF SOLENOID VALVE) (ON RESERVOIR RETURN FITTING)
32	AT37518	1	Tee Fitting	(NOT ILLUSTRATED) (PORT 4 SOLENOID VALVE)
33	AT38635	3	Hydraulic Hose	(NOT ILLUSTRATED) (SOLENOID VALVE PORT 4 TO PRESSURE REDUCING VALVE PORT 2) (RETURN TEE TO TEE AT RETURN RESERVOIR) (SOLENOID VALVE PORT 4 TO ARM II SHUTTLE VALVE)
34	AT69969	1	SWITCH	(NOT ILLUSTRATED) (TO BRACKET-T177655)
35	CH11570	3	O-Ring	(NOT ILLUSTRATED) (BSPP /BRITISH STRAIGHT PARALLEL PIPE/ ADAPTORS - ELBOW AT RESERVOIR) (BSPP ADAPTORS AT AT130053 IN ARM II SPOOL)
36	H75414	2	Adapter Fitting	(NOT ILLUSTRATED) (SHUTTLE CHECK VALVE PORTS)
37	R26448	14	O-Ring	(NOT ILLUSTRATED)(ALL -6 VALVE PORT FITTINGS)

CONTROLS, PILOT, FOR HAND HELD TOOLS
