Track Chains, Press in Master ( - 603366)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

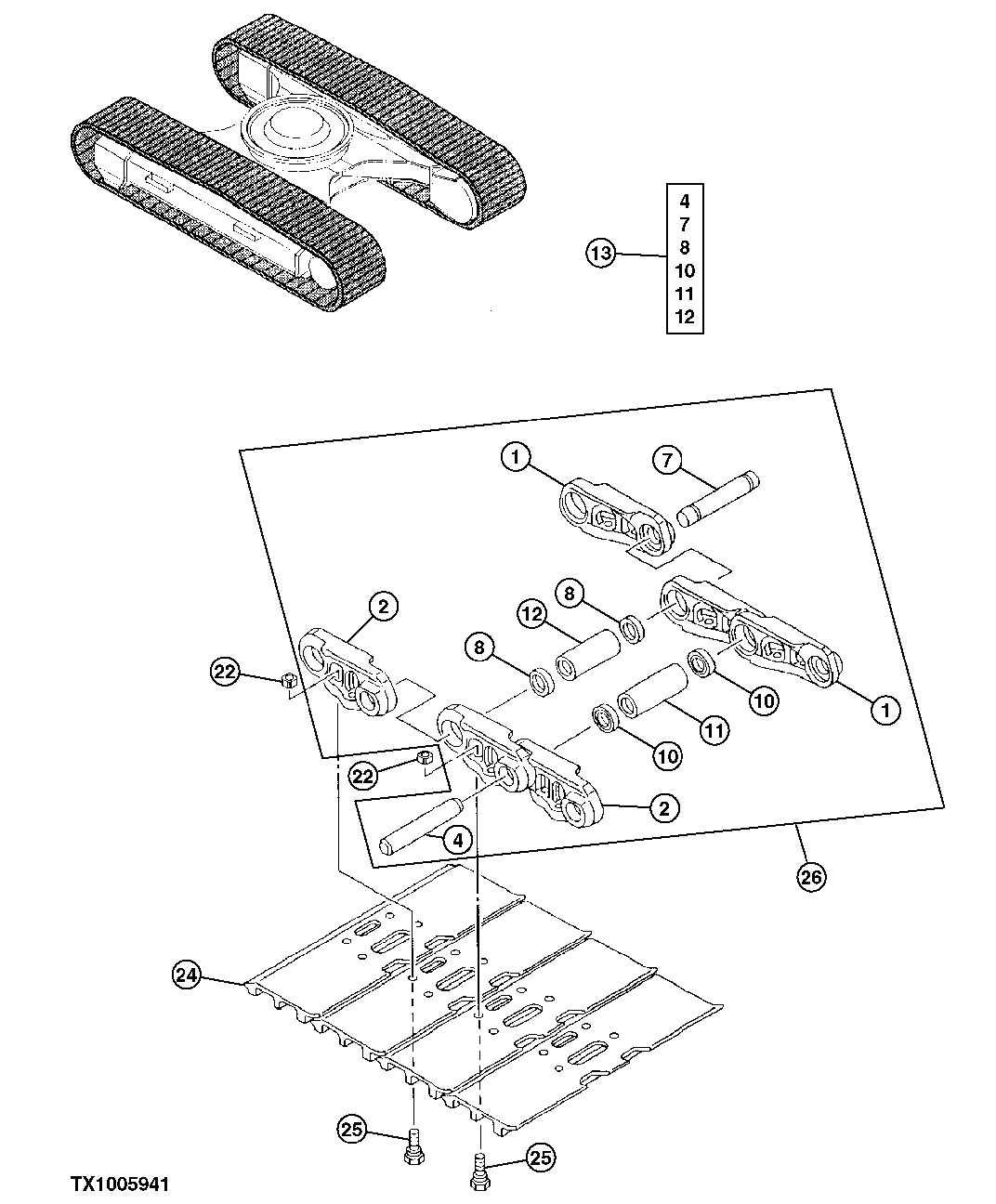

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0005251R	51	Track Link	RH
1	AT219480	51	Strutted LINK-RH	AT180025, AT219480 NLA, SUB 0005251R, RH
2	AT219481	51	Strutted LINK-LH	AT180027, AT219481 NLA, SUB 0005252R, LH
2	0005252R	51	Track Link	LH
4	AT180030	1	Pin Fastener	37.720 X 212 mm (1.485" X 8.346"), ALSO ORDER (2) AT219471 AND AT219468
7	AT180028	50	Pin Fastener	-
8	AT180029	200	Seal	Dual Spring Washer
8	AT186161	100	Seal	M Seal
10	AT219471	2	Spacer	Master, ALSO ORDER AT180030 AND AT219468, SUB FOR FFSB113387
11	AT219468	1	Bushing	Master, FFSB113387 NLA, ALSO ORDER AT180030 AND (2) AT219471, SUB FOR FFSB113386
12	FF550704	50	Bushing	SUB FOR AT180032 AND AT186162, ALSO ORDER AT186161
13	AT187185	1	Pin & Bushing Kit	-
22	T139615	204	Nut	M20
24	2050647	51	Single Bar Shoe	600 mm, Each Side Of Unit, SUB FOR AT219482
24	2053495	51	Triple Bar Shoe	700 mm, Each Side Of Unit, SUB FOR AT219483
24	2053496	51	Triple Bar Shoe	800 mm, Each Side Of Unit, SUB FOR AT219484
24	T142593	51	Single Bar Shoe	650 mm, Heavy Duty Each Side Of Unit
24	T186385	51	Open Center 2 Bar Shoe	700 mm, Heavy Duty Each Side Of Unit
25	T139614	204	Bolt	M20 X 55
26	FF550747	2	Track Chain W/O Shoes	Snap Ring Style Quantity of 1 Each Side of Unit, SUB FOR AT280815, AT311624 AND 9250497R

Track Chains, Press in Master ( - 603366)

Нет текстового описания
