SEVERE DUTY CAST LIP BUCKET (SEE FOOTNOTE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

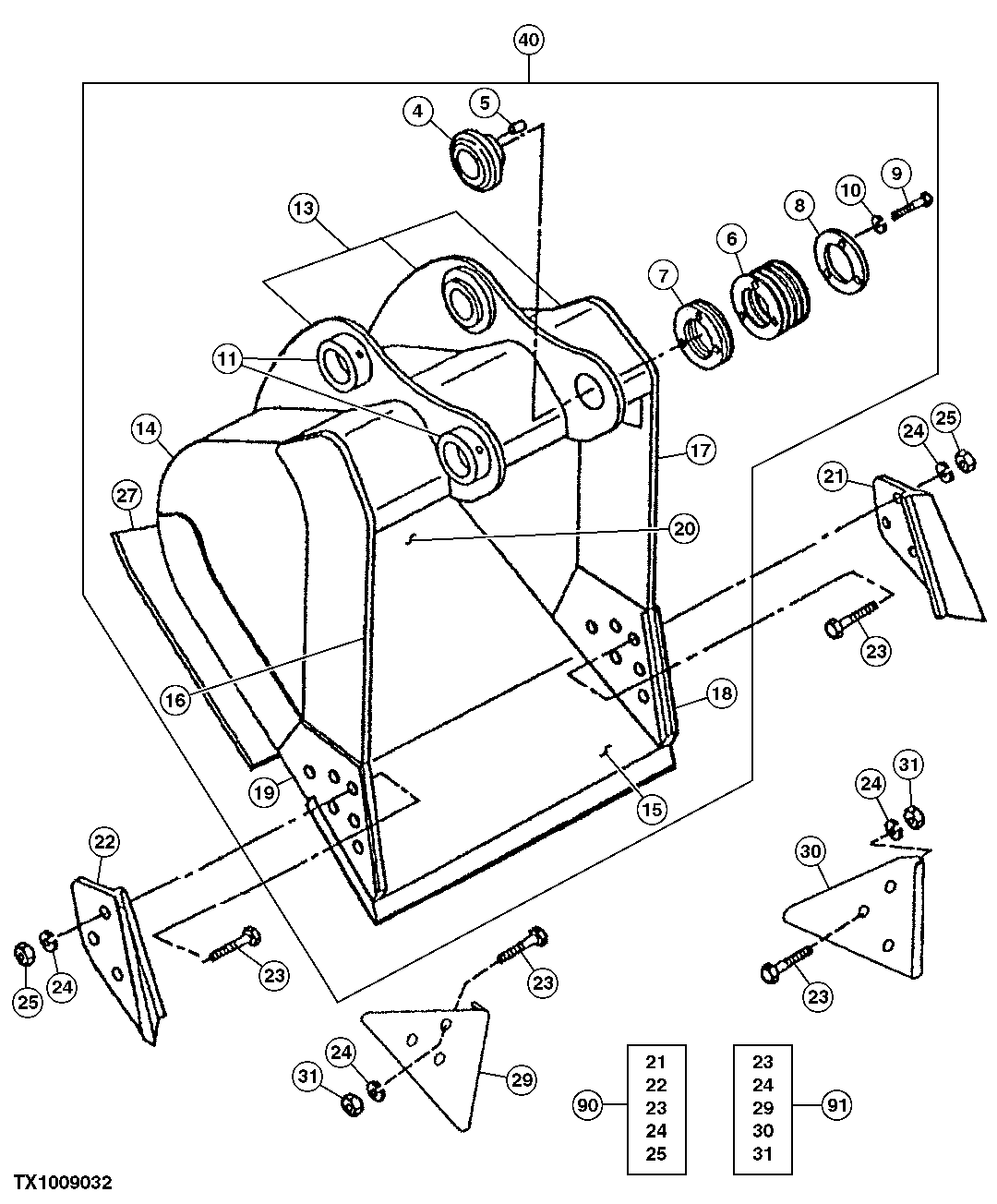

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	AT131084	1	Bushing	-
5	R48685	1	Dowel Pin	-
6	TH102460	6	Washer	1 MM
7	TH102461	2	Shim	-
8	-	1	Part 5	( TH102463 NLA)
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH102409	2	Bushing	-
13	C603692	1	Pivot	(ORDER FROM CENTRAL FABRICATORS) Bucket Ear Blank Assembly
14	300804	2	Plate	(ORDER FROM CENTRAL FABRICATORS) (RH/LH)
15	AT171742	1	Cutting Edge	(ORDER FROM CENTRAL FABRICATORS) (CTL) (USE WITH 36 INCH BUCKET), (SUB FOR AT131092, THIS APPLICATION)
15	-	1	Part 12	(ORDER FROM CENTRAL FABRICATORS) ( AT131094 NLA) (CTL) (USE WITH 42 INCH BUCKET), (ORDER AT131093)
15	AT131093	1	Cutting Edge	(ORDER FROM CENTRAL FABRICATORS) (CTL) (USE WITH 42 INCH BUCKET)
16	300526	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (UPPER) (RH)
17	300527	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (UPPER) (LH)
18	300803	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (INSERT) (LH)
19	300802	1	Vertical Cutter	(ORDER FROM CENTRAL FABRICATORS) (INSERT) (RH)
20	600444	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (36 INCH)
20	600445	1	Moldboard	(ORDER FROM CENTRAL FABRICATORS) (42 INCH)
21	-	1	Part 20	(SUB AT131085)
22	-	1	Part 21	(SUB AT131085)
23	09H1771	6	Bolt	7/8" X 3"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	606121	1	Bar	(ORDER FROM CENTRAL FABRICATORS) (36 INCH), Wear
27	606122	1	Bar	(ORDER FROM CENTRAL FABRICATORS) (42 INCH), Wear
29	-	1	Part 27	Wear, (SUB AT167876)
30	-	1	Part 28	Wear, (SUB AT167876)
31	14H1044	1	Nut	7/8"
40	-	1	Part 30	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE.) ( AT171743 NLA) (36 INCH/1.16 CUBIC YARD) (WHOLE GOODS), (SUB FOR AT131044 OR AT163642)
40	-	1	Part 31	(AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE.) ( AT171745 NLA) (42 INCH/1.38 CUBIC YARD) (WHOLE GOODS), (SUB FOR AT131045 OR AT163642)
90	AT131085	1	End Bit	Side Cutting Kit, (WHOLE GOODS)
91	AT167876	1	Kit	Edge Protector, (WHOLE GOODS)
