Right Boom Cylinder Components, Units Built After August 2003

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9234729J	1	Hydraulic Cylinder	SUB FOR 4613892
1	0926609	1	Tube	-
1	PG201334	1	Hyd Cylinder Barrel Reman	-
2	0926610	1	Rod	-
2	0926610	1	Rod	SUB FOR PG201336
3	0926603	1	Cylinder Head	-
4	AT264321	1	Bushing	SUB FOR 0325904
5	0237407	1	Ring	-
6	1119303	1	Ring	SUB FOR 4469112, 0927507 OR 4S00706
7	1119304	1	Packing	SUB FOR 0105301, 0927508 OR 4S00707
8	AT264351	1	Back-Up Ring	SUB FOR 0237419
9	4729049	1	Ring	SUB FOR 4428492
10	AT264339	1	O-Ring	SUB FOR A811120
11	AT264363	1	Back-Up Ring	SUB FOR 0223704
12	19M8931	12	Screw	M16 X 75, SUB FOR 0409705
13	0829306	1	Packing	-
14	4469113	1	Seal	SUB FOR 4S00776
15	0737505	1	Piston	-
16	AT264361	1	Seal	SUB FOR 0223706
17	0496706	2	Back-Up Ring	SUB FOR 4S00778
18	0926604	2	O-Ring	SUB FOR 4S00708
19	AT264362	2	Piston Ring	SUB FOR 0223713
20	0400909	1	Shim	-
21	0776406	1	Nut	-
22	22M6684	1	Set Screw	M12 X 12, SUB FOR 0496706
23	T13624	1	Ball	SUB FOR 0926604
25	TH102445	4	Seal	SUB FOR 0400902 OR 4067901
26	0927501	1	Line	-
27	-	1	Part 33	Units Built Before July 2004, SUB 0927503 AND 0927505; 0927502 NLA
27	0927503	1	Line	Units Built After July 2004
28	AT264348	1	O-Ring	SUB FOR 984614
29	19M8448	4	Screw	M12 X 35, SUB FOR M341236
30	4506430	1	O-Ring	-
31	19M8337	4	Screw	M10 X 30, SUB FOR 4486953 OR M341030
32	0926607	1	Band	Units Built Before July 2004
32	0927504	1	Band	Units Built After July 2004
33	0927506	1	Band	Units Built After July 2004
33	0309017	1	Clamp	Units Built Before July 2004
34	19M7550	2	Cap Screw	M10 X 35
34	-	2	Part 43	J021035 NLA
34	24M7096	2	Washer	10.500 X 18 X 1.600 mm
35	12M7066	2	Lock Washer	10 mm, SUB FOR A590910
36	0236915J	2	Holder	Units Built Before July 2004, SUB FOR 0236915
36	H238070	2	Clamp	Units Built After July 2004, SUB FOR 0309021
37	19M4789	1	Cap Screw	M14 X 80, Units Built Before July 2004, SUB FOR 0254312
37	19M7362	2	Cap Screw	M12 X 55, Units Built After July 2004, SUB FOR 0667013
38	12H317	1	Lock Washer	9/16", Units Built Before July 2004, SUB FOR A590914
38	12M7058	2	Lock Washer	12 mm, Units Built After July 2004, SUB FOR 0208516
39	TH100074	1	Lubrication Fitting	SUB FOR J75481
50	4S00715	1	Seal Kit	SUB FOR 4662069
51	-	1	Part 55	Furnish Components Units Built Before July 2004, 0926611 NLA
51	0927505	1	Band Kit	Units Built After July 2004
1A	-	2	Part 3	0926601 NLA
1B	4355875	2	Bushing	-
2A	-	1	Part 7	0926602 NLA
2B	4355875	2	Bushing	-

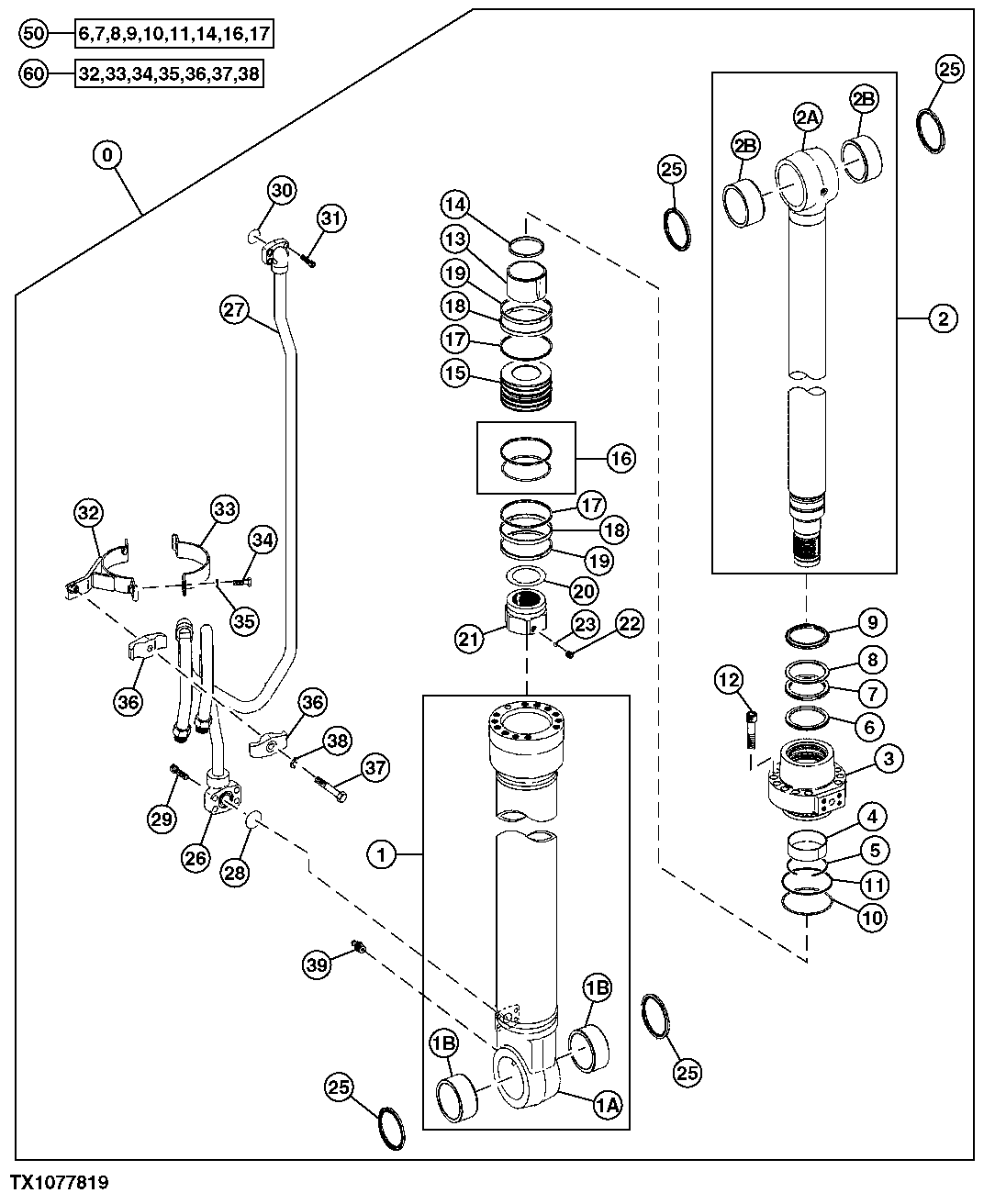

Right Boom Cylinder Components, Units Built After August 2003
