Left Boom Cylinder Components, Units Built Before August 2003

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	SUB 9234730J; 9205253 NLA
1	4645988	1	Hydraulic Cylinder Barrel	SUB FOR 7037626 OR 9207055
1	4645988	1	Hydraulic Cylinder Barrel	SUB FOR PG201331
2	4645891	1	Hydraulic Cylinder Rod	SUB FOR 7037629
2	4645891	1	Hydraulic Cylinder Rod	SUB FOR PG201333
3	T204375	1	Seal	SUB FOR 4348202
4	1027960	1	Cylinder Head	-
5	19M8913	12	Screw	M18 X 80, SUB FOR M341880
7	4438622	1	O-Ring	For Heat Problems Contact DTAC
7	4641827	1	O-Ring	Heat Resistant
9	AT264395	1	Seal	SUB FOR 4414047
10	4412693	1	Seal	-
11	4369507	1	Ring	-
13	AT264321	1	Bushing	SUB FOR 4272961 OR AT264273
14	4264983	1	Snap Ring	-
15	3090718	1	Ring	-
18	3090804	1	Piston	-
20	4431271	2	Ring	-
21	AT264270	2	Wear Ring	SUB FOR 4253562
22	AT264296	1	Seal	SUB FOR 4375665
23	CH17854	1	Packing	SUB FOR A811085
25	4440216	6	Bolt	-
26	8046950	1	Line	-
28	19M8341	4	Screw	M12 X 45, SUB FOR M341245
29	19M8444	4	Screw	M12 X 60, SUB FOR M341260
30	AT264324	2	O-Ring	SUB FOR A811035
31	8083815	1	Line	-
32	3088453	1	Clamp	-
33	8079052	1	Clamp	-
34	19M7550	2	Cap Screw	M10 X 35, Units Built Before May 2003, SUB FOR J011035
34	-	2	Part 33	Units Built After May 2003, J271035 NLA
34	19M7550	2	Cap Screw	M10 X 35, Units Built After May 2003, SUB FOR J901035
34	24M7346	2	Washer	11 X 20 X 2 mm, Units Built After May 2003, SUB FOR J222010
37	24M7345	1	Washer	13.500 X 24 X 2.500 mm, Units Built After May 2003, SUB FOR J222012
37	19M8348	1	Cap Screw	M12 X 65, Units Built After May 2003, SUB FOR J901265
37	-	1	Part 37	Units Built After May 2003, J271265 NLA
37	19M8348	1	Cap Screw	M12 X 65, Units Built Before May 2003, SUB FOR J011265
40	TH100074	1	Lubrication Fitting	SUB FOR J75481
42	TH4451000	6	Washer	-
50	4485612	1	Seal Kit	For Heat Problems Contact DTAC
50	9257531	1	Seal Kit	Heat Resistant, NLA
1A	4355875	2	Bushing	-
2A	4355875	2	Bushing	-

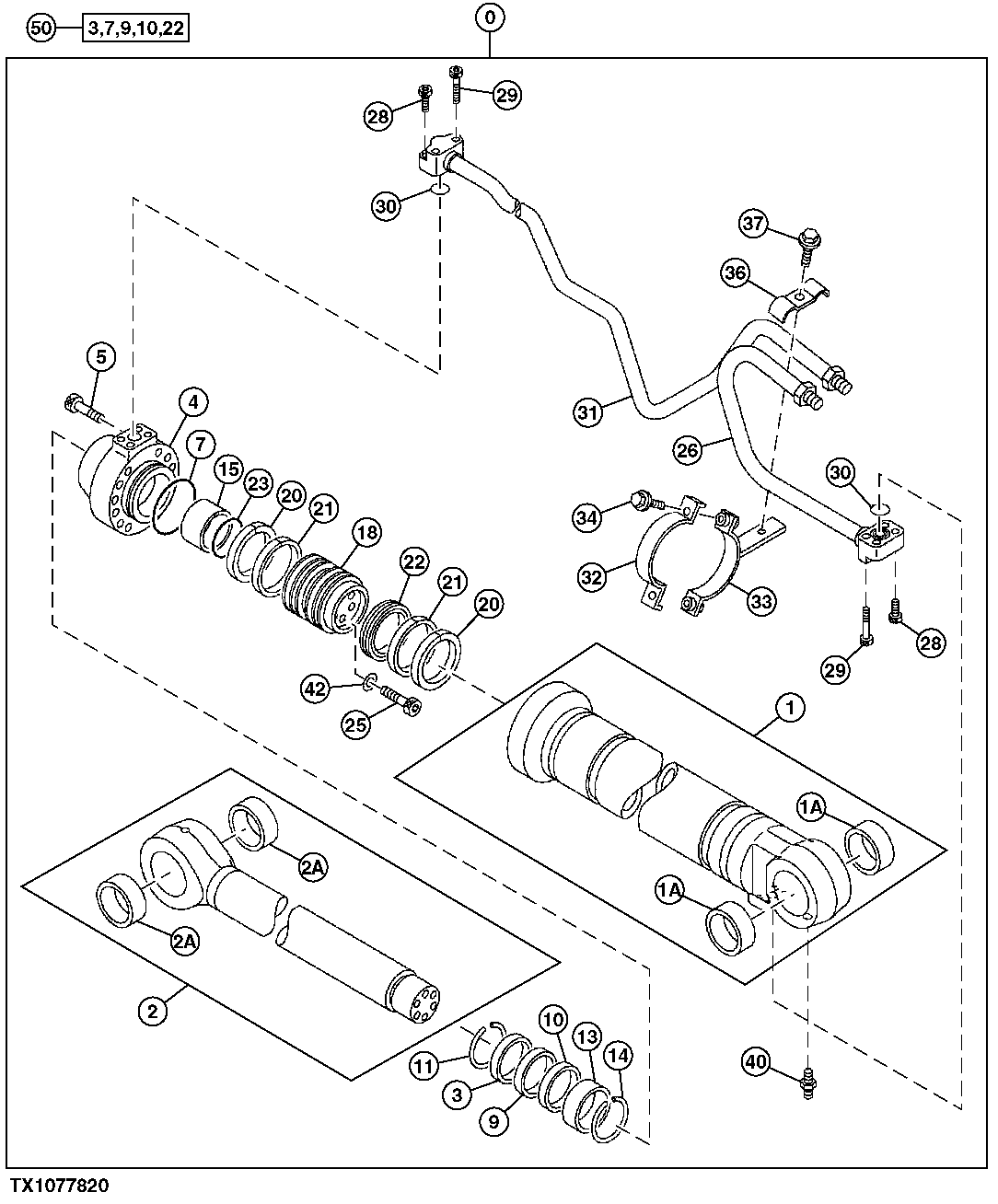

Left Boom Cylinder Components, Units Built Before August 2003
