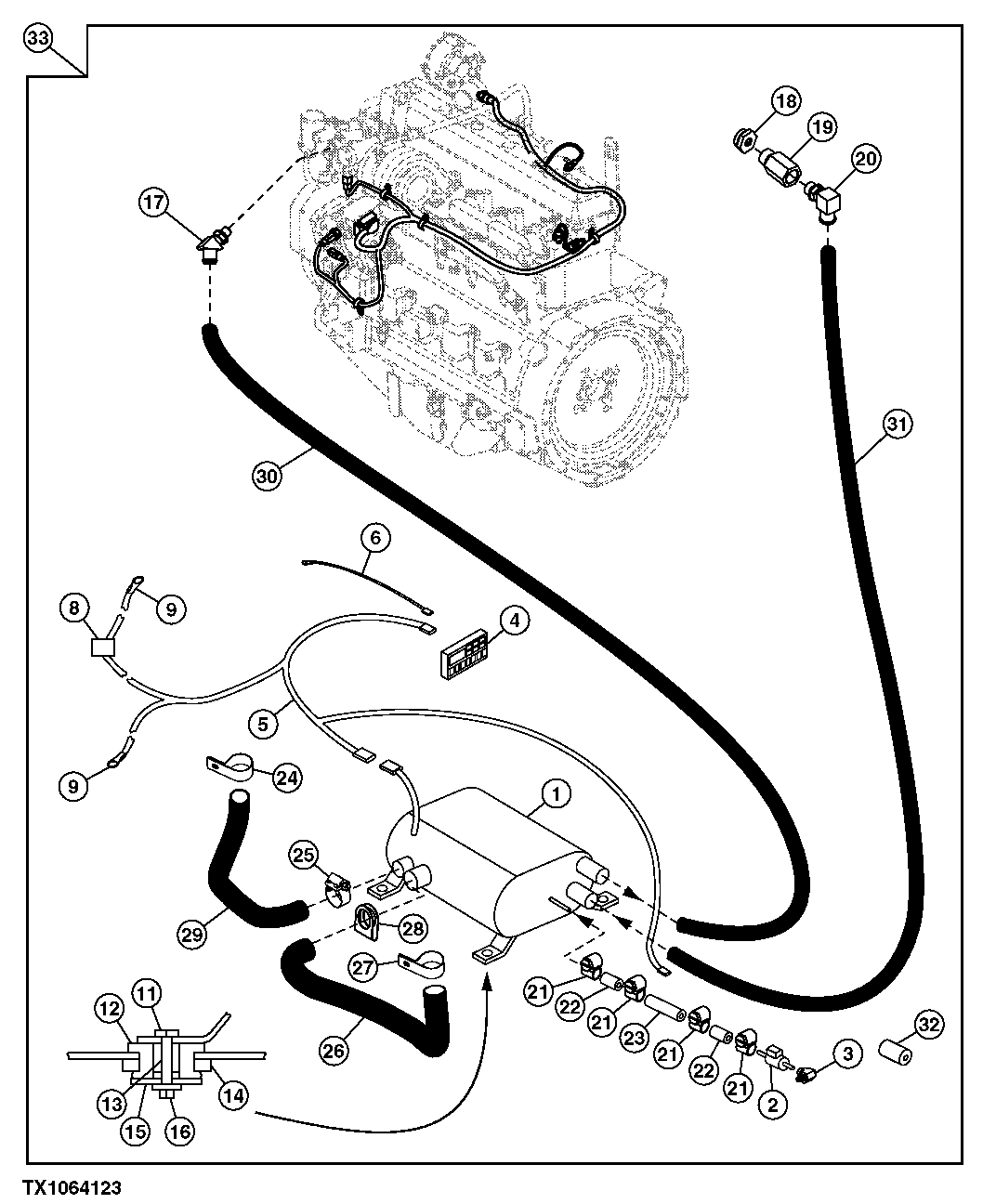

FUEL FIRED COOLANT HEATER KIT (KITS BUILT PRIOR TO MARCH 2009)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT222697	1	Coolant Heater	-
2	AT223099	1	Fuel Pump	SUB FOR AT307812; AT307812 NLA
3	T120343	1	Tee Fitting	-
4	AT221990	1	Digital Display	-
5	AT307817	1	Wiring Harness	-
6	AT307271	1	Wiring Lead	-
8	AT307277	1	Wiring Lead	-
9	-	1	Part 8	-
11	19M7874	4	Cap Screw	M6 X 30
12	AT116162	4	Isolator	-
13	L101283	4	Spacer	-
14	24H1404	4	Washer	13/16" X 1-1/4" X 1/4"
15	M142541	4	Washer	-
16	N207956	1	Lock Nut	-
17	AT221439	1	Elbow Fitting	To Open Port In Thermostat Housing Cover
18	R123616	1	Plug	-
19	RE520229	1	Adapter Fitting	SUB FOR RE68908
20	AT221440	4	Fitting	-
21	TY22462	2	Clamp	SUB FOR AR48236
22	T177580	1	Hose	-
23	T206125	1	Hose	-
24	T179306	1	Clamp	-
25	AR21837	1	Clamp	-
26	T206126	1	Exhaust Pipe	Exhaust Pipe
27	T179306	1	Clamp	-
28	AT221605	1	Clamp	-
29	T206127	1	Bulk Hose	Air Inlet Hose
30	-	1	Part 28	(CTL) 90", MAKE FROM TY22330
31	-	1	Part 29	(CTL) 100", MAKE FROM TY22330
32	AT307815	1	Isolator	-
33	-	1	Part 31	AT307267 NLA, WHOLE GOODS, Diesel Fired Engine Coolant Heater Kit

FUEL FIRED COOLANT HEATER KIT (KITS BUILT PRIOR TO MARCH 2009)
