ELECTRIC SOLENOID VALVE KIT (1 WAY/2 WAY) (WITHOUT PRESSURE SWITCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Electric Solenoid Valve, (INCLUDES H102543 ( AT195713 NLA) (WHOLE GOODS)
2	CH11570	6	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
3	AT36921	2	Tee Fitting	-
4	AT180585	1	Solenoid Valve	-
4	AT139433	2	Electrical Coil	-
5	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	4200466	4	Adapter Fitting	(SUB FOR TH108320)
7	AT130053	1	Adapter Fitting	-
8	AT131445	1	Adapter Fitting	-
9	R27212	4	Fitting	-
10	AT108783	1	Hydraulic Hose	9/16" X 567 mm (22-1/4") X 9/16"
11	AR90081	1	Hydraulic Hose	9/16" X 1270 mm (50") X 9/16"
12	24M7054	4	Washer	6.400 X 12 X 1.600 mm, (NOT ILLUSTRATED)
13	AT68901	2	Hydraulic Hose	9/16" X 964 mm (38") X 9/16"
14	14M7272	2	Nut	M6, Not Illustrated
15	19M7529	2	Cap Screw	M6 X 55, (NOT ILLUSTRATED)
16	R31147	1	Fitting	(CAP)
17	AE24616	1	Elbow Fitting	-
18	AT71732	1	Hydraulic Hose	9/16" X 1422 mm (56") X 9/16"
20	AT78124	1	Hydraulic Hose	9/16" X 3531 mm (139") X 9/16"
21	T202379	1	Strap	-

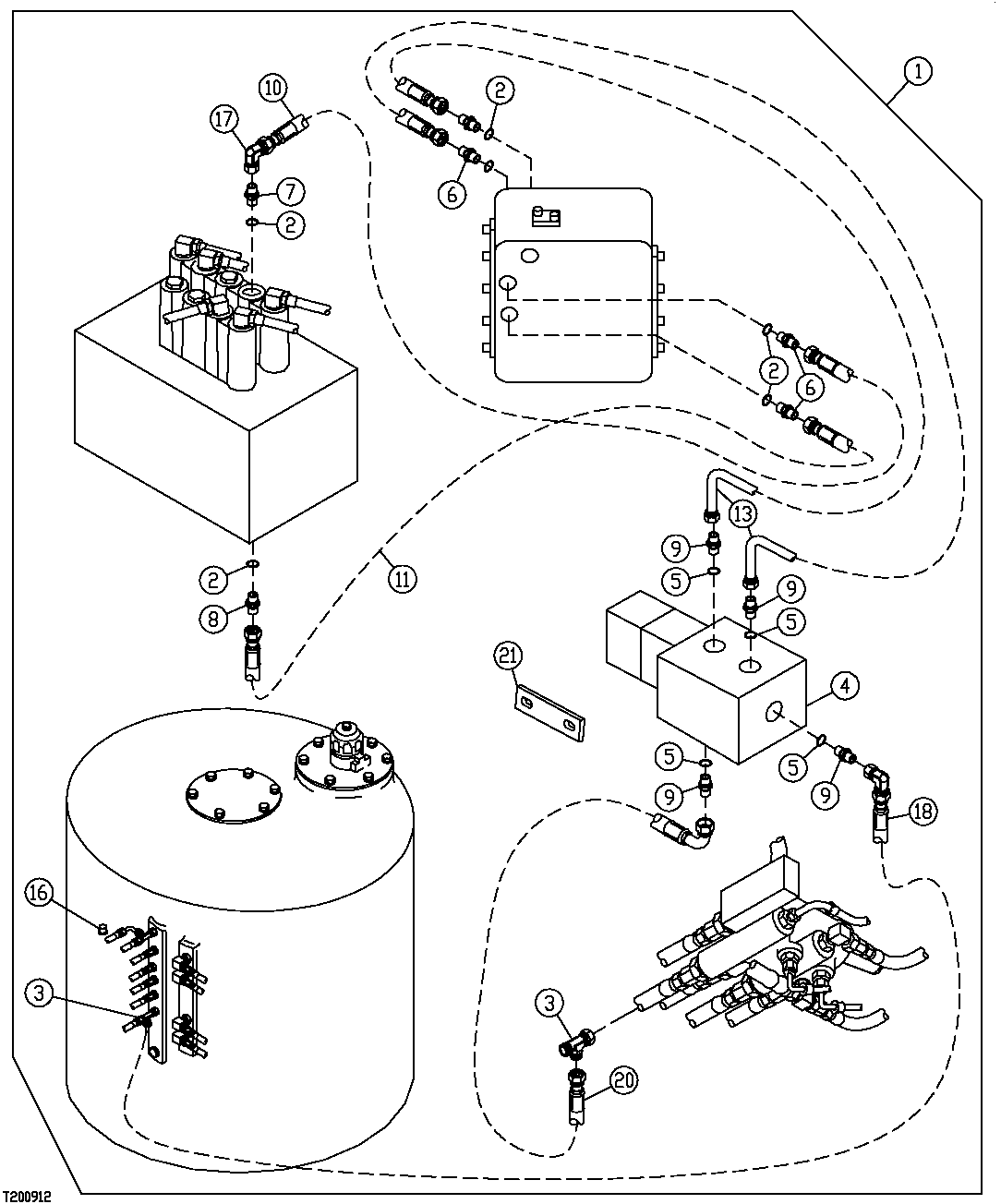

ELECTRIC SOLENOID VALVE KIT (1 WAY/2 WAY) (WITHOUT PRESSURE SWITCH)
