AUXILIARY HYDRAULIC PLUMBING (FIELD KIT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	WHOLEGOODS, (ALSO ORDER <service-part qty="1">AT160364</service-part> AND <service-part qty="1">AT162716</service-part> ( <service-part>AT196897</service-part > NLA, SUB COMPONENTS))
2	AT195786	2	Control Lever	-
3	AT159782	2	Hydraulic Hose	-
4	AT182177	1	Tube	-
5	AT182176	1	Oil Line	-
6	T76938	10	O-Ring	-
7	4202103	4	Clamp	(SUB FOR TH108302)
8	19M7361	2	Cap Screw	M12 X 50
9	12H301	2	Lock Washer	1/2"
10	14M7275	2	Nut	M12
11	-	2	Part 11	( 38H1196 NLA)
12	-	2	Part 12	( T78612 NLA W/ ASSY)
13	-	2	Part 13	( AT159934 NLA W/ ASSY)
14	4190127	4	Clamp	(SUB FOR TH108313)
15	12H301	4	Lock Washer	1/2"
16	-	4	Part 16	( 19M7753 NLA)
17	-	1	Part 17	( T77858 NLA W/ ASSY)
18	-	1	Part 18	( 38H1419 NLA)
19	-	1	Part 19	( 4249704 NLA W/ ASSY), (SUB FOR AT122946)
21	12H301	1	Lock Washer	1/2"
22	-	1	Part 21	( 19M7758 NLA)
23	4153488	10	Clamp	(SUB FOR TH103780)
24	12H301	10	Lock Washer	1/2"
25	-	10	Part 24	( 19M7753 NLA)
26	-	2	Part 25	( AT182213 NLA W/ ASSY)
27	-	4	Part 26	( H61354 NLA W/ ASSY), (SUB FOR R29424, THIS APPLICATION)
28	-	2	Part 27	( T78313 NLA W/ ASSY), (SUB FOR T59014, THIS APPLICATION)
29	AT160364	2	Hydraulic Hose	36.5252" X 1600 mm (63") X 36.5252", (USE WITH 2.96M STANDARD ARM) (NOT INCLUDED IN AT196897 KIT)
29	AT162716	2	Hydraulic Hose	(USE WITH 3.61M ARM) (NOT INCLUDED IN AT196897 KIT)
30	-	2	Part 30	( 4282718 NLA W/ ASSY), (SUB FOR AT155693)
35	-	1	Part 31	( 4189860 NLA), (SUB FOR TH108314)
36	-	4	Part 32	( R29936 NLA W/ ASSY)
37	-	2	Part 33	( AT196851 NLA W/ ASSY), (BALL VALVE)
38	-	2	Part 34	( R36636 NLA W/ ASSY)
39	-	2	Part 35	( R29936 NLA W/ ASSY)
40	38H1216	2	Adapter Fitting	(1" ORFS)
40	38H1194	2	Adapter Fitting	(3/4" ORFS)
40	AT46961	2	Union Fitting	(1" SAE, MALE)
40	T27603	2	Fitting	(3/4" 37 DEGREE)
40	T26767	2	Fitting	(1" 37 DEGREE)
40	AT83306	2	Adapter Fitting	(3/4" SAE, MALE)
41	R29936	2	O-Ring	-
42	AT186111	1	Quick Coupler	(1" FEMALE)(SCREW TOGETHER COUPLER)
42	-	1	Part 44	( AT189410 NLA)
43	AT186112	1	Quick Coupler	(1" MALE)(SCREW TOGETHER COUPLER)
43	-	1	Part 46	( AT189409 NLA)
44	AT186113	1	Cap	-
45	AT186114	1	Plug	-
46	X1JS78-20-16	2	Hose Fitting	HOSE END - STRAIGHT - 1 1/4 X 1 IN
46	X1J978-20-16	2	Elbow Fitting	HOSE END - 90 DEG 1 1/4 X 1 IN
47	AT117365	2	Hydr. Quick Coupler Plug	MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
47	AT120498	2	Coupling	MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
48	AT117364	2	Hydr. Quick Coupler Socket	FEMALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
48	AT120499	2	Coupling	FEMALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

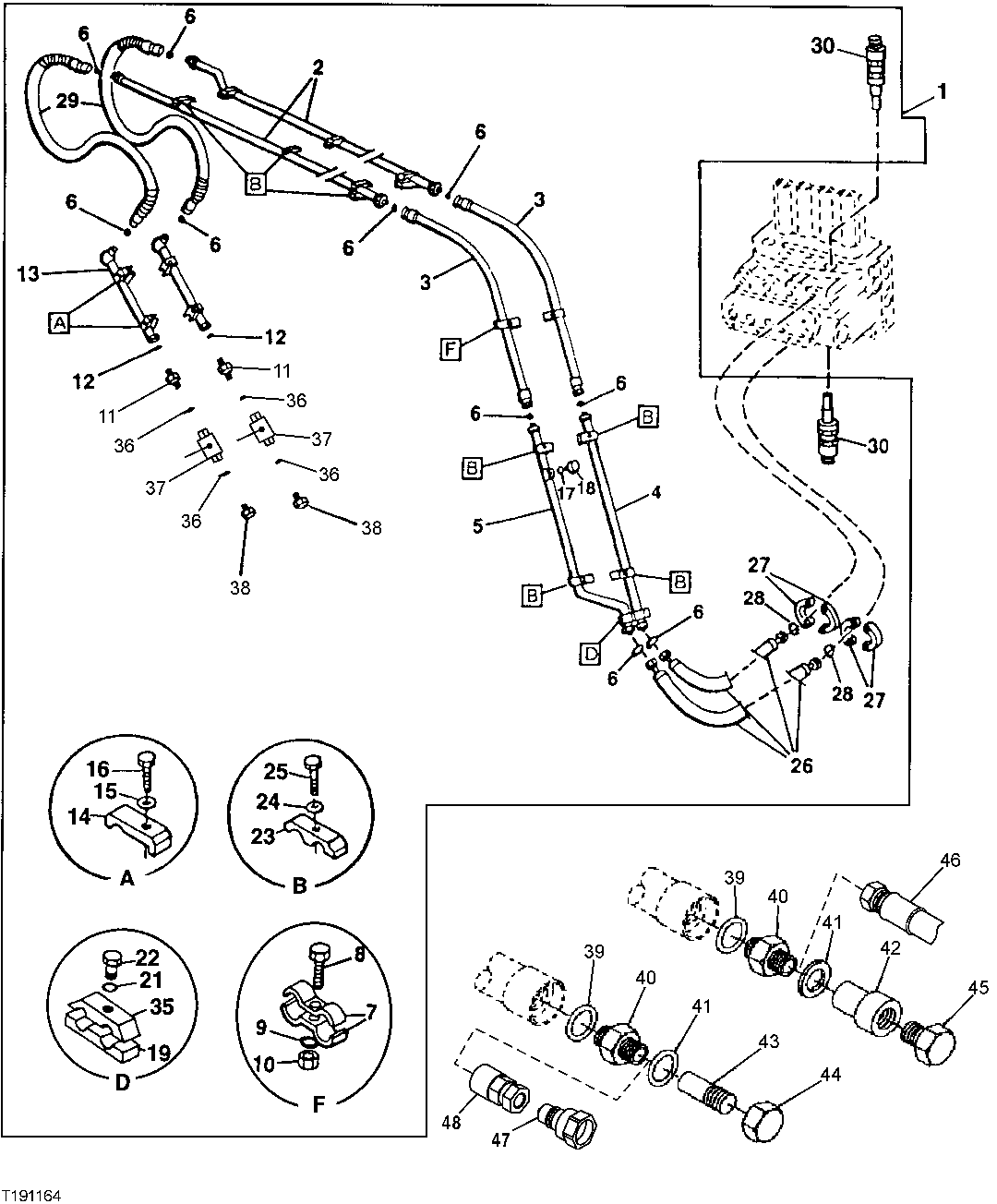

AUXILIARY HYDRAULIC PLUMBING (FIELD KIT)
