Auxiliary Equipment Hydraulic Hoses and Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT160351	1	Kit	(ALSO ORDER (2) AT160364 HOSES WHEN USED WITH 2.96M STANDARD ARM) (ALSO ORDER (2) AT159781 HOSES WHEN USED WITH 3.61M LONG ARM)
2	AT159786	2	Oil Line	-
3	AT159782	2	Hydraulic Hose	36.5252" X 1905 mm (75") X 36.5252"
4	AT159785	1	Oil Line	-
5	AT159805	1	Oil Line	-
6	T76938	10	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
7	4202103	4	Clamp	(SUB FOR TH108302)
8	19M7361	2	Cap Screw	M12 X 50
9	12H301	2	Lock Washer	1/2"
10	14M7275	2	Nut	M12
11	38H1151	2	Fitting Plug	-
12	T78612	2	O-Ring	-
13	AT159934	2	Oil Line	-
14	4190127	4	Clamp	(SUB FOR TH108313)
15	12H301	4	Lock Washer	1/2"
16	19M7753	4	Cap Screw	M12 X 70
17	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
18	38H1418	4	Fitting	-
19	4202103	2	Clamp	(SUB FOR TH108302)
20	14M7275	1	Nut	M12
21	12H301	1	Lock Washer	1/2"
22	19M7361	1	Cap Screw	M12 X 50
23	4153488	10	Clamp	(SUB FOR TH103780)
24	12H301	10	Lock Washer	1/2"
25	19M7753	10	Cap Screw	M12 X 70
26	AT159783	2	Hydraulic Hose	3/4" X 1499 mm (59") X 36.5252"
27	R29424	4	Flange Fitting	-
28	T59014	2	O-Ring	24.994 X 3.531 mm (63/64" X 0.139")
29	AT160364	2	Hydraulic Hose	36.5252" X 1600 mm (63") X 36.5252", (ORDER SEPARATELY - NOT INCLUDED IN AT160351 KIT) (USE WITH 2.96M STANDARD ARM)
29	AT159781	2	Hydraulic Hose	36.5252" X 2000 mm (78-3/4") X 36.5252", (ORDER SEPARATELY - NOT INCLUDED IN AT160351 KIT) (FOR USE WITH 3.61M LONG ARM)
30	4282718	2	Pressure Relief Valve	(SUB FOR AT155693)
31	M800650	1	Packing	-
32	4203485	1	Fitting	(SUB FOR TH109466)
33	AH89069	1	Elbow Fitting	-
34	H102543	1	Fitting	Not Illustrated Shared Flow Plug End When Hose is Attached to Bucket Valve Control Valve, NLA
40	4267610	2	Adapter Fitting	(SUB FOR AT137960)(-20) 1 11/16 ORFS X (-20) 1 1/4 IN BSPP
40	38H1165	2	Adapter Fitting	(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING
40	4207425	2	Adapter Fitting	(SUB FOR TH111740)(-20) 1 11/16 ORFS X (-16) 1 IN BSPP
40	38H1196	2	Adapter Fitting	(-20) 1 11/16 ORFS X (-16) 1 5/16 SAE O-RING
41	38H1282	2	Union Fitting	(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS
42	AT117364	2	Hydr. Quick Coupler Socket	FEMALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
42	AT120499	2	Coupling	FEMALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
43	AT117365	2	Hydr. Quick Coupler Plug	MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
43	AT120498	2	Coupling	MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
44	X1JS78-20-16	2	Hose Fitting	HOSE END - STRAIGHT - 1 1/4 X 1 IN
44	X1J978-20-16	2	Elbow Fitting	HOSE END - 90 DEG 1 1/4 X 1 IN
45	X20BL-S	2	Tube Nut	ORFS (-20) 1 11/16
46	38H1477	2	Reducer	ORFS (-20) TO (-12)
47	38H1070	2	Fitting	(1 3/16 ORFS X 1 1/16 SAE O-RING)
90	AT172037	1	Clamp	Hydraulic Thumb Kit Contains All Components On This Page Additional Components On Separate Pages, NLA, WHOLE GOODS

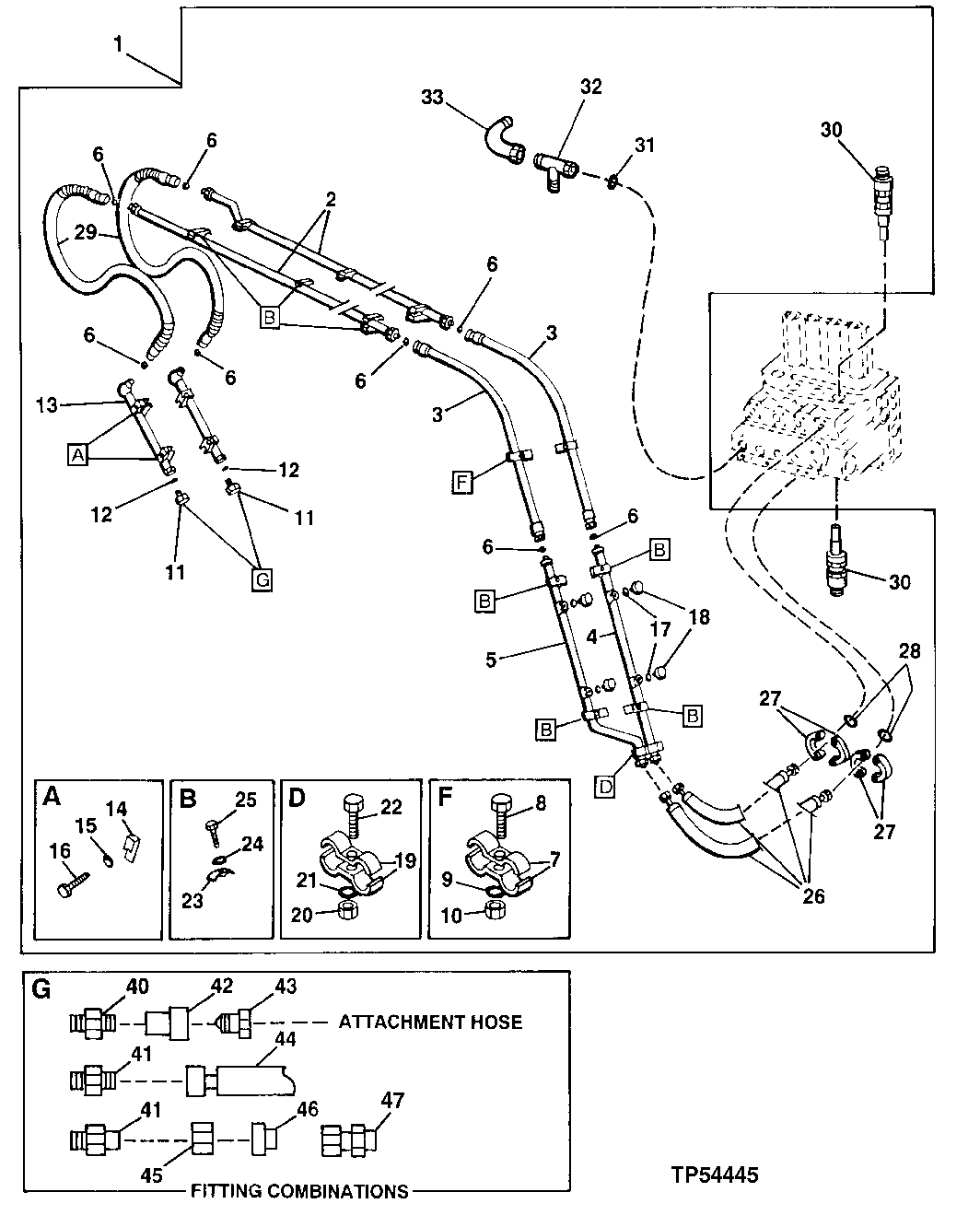

Auxiliary Equipment Hydraulic Hoses and Lines
