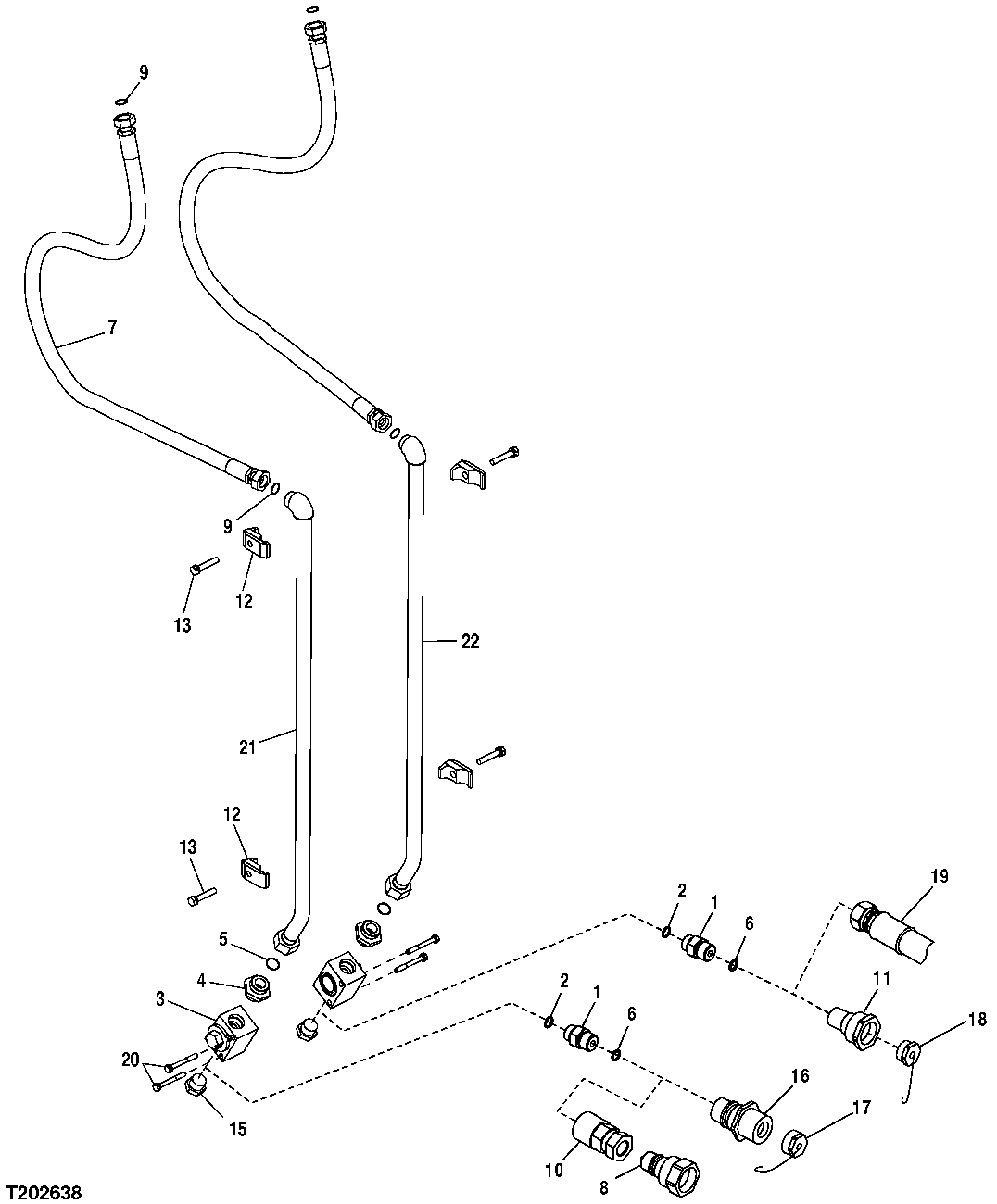

ARM AUXILIARY HOSES AND LINES (FACTORY INSTALLED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT318016	2	Adapter Fitting	(3/4" ORFS), (SUB FOR 4189537)
1	AT301151	2	Fitting	(1" SAE, MALE)
1	X1216F4OMXS	2	Adapter	(3/4" 37 DEGREE)
1	X1216F4OMXS	2	Adapter	(1" 37 DEGREE)
1	AT305641	2	Fitting	(3/4" SAE, MALE)
1	4189535	2	Adapter Fitting	(1" ORFS)
2	TH101926	2	O-Ring	-
3	4447675	2	Flow Control Hyd. Valve	(SUB FOR 4600164)
4	4205196	2	Adapter Fitting	-
5	T78612	2	O-Ring	(SUB FOR 4187329)
6	R29936	2	O-Ring	-
7	4438752	2	Hydraulic Hose	-
7	4473091	2	Hydraulic Hose	-
8	AT117365	2	Hydr. Quick Coupler Plug	MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
8	AT120498	2	Coupling	MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
9	T76938	4	O-Ring	(SUB FOR 4187328)
10	AT117364	2	Hydr. Quick Coupler Socket	FEMALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
10	AT120499	2	Coupling	FEMALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
11	AT186111	1	Quick Coupler	(1" FEMALE)(SCREW TOGETHER COUPLER)
12	4190127	4	Clamp	Pipe
13	19M8348	4	Cap Screw	M12 X 65, (SUB FOR J011265)
15	A885008	2	Pipe Plug	(SUB FOR THA885008)
16	AT186112	1	Quick Coupler	(1" MALE) (SCREW TOGETHER COUPLER)
16	-	1	Part 24	( AT189409 NLA)
17	AT186113	1	Cap	-
18	AT186114	1	Plug	-
19	X1JS782016	2	Hose Fitting	HOSE END - STRAIGHT - 1 1/4 X 1 IN
19	X1J9782016	2	Hose Fitting	HOSE END - 90 DEG 1 1/4 X 1 IN
20	19M8183	4	Cap Screw	M10 X 90, (SUB FOR J011085)
21	8080438J	1	Oil Line	-
22	8084652J	1	Oil Line	-

ARM AUXILIARY HOSES AND LINES (FACTORY INSTALLED)
