Front Wheel Drive / Axle Bridge / Differential, LH Side

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PE88170156	8	SHIM	(SUB PE67453151)
2	PE88170157	1	SHIM	TK= 0.36MM, (SUB PE67453152)
2	PE88170163	1	SHIM	TK= 0.50MM, (SUB PE67453155)
2	PE88170161	1	SHIM	TK= 0.40MM, (SUB PE67453153)
2	PE88170162	1	SHIM	TK= 0.45MM, (SUB PE67453154)
3	PE971336	2	CYLINDRICAL ROLLER BEARING	-
4	19M8260	8	Cap Screw	M10 X 40, (SUB FOR PE998411)
5	PE30112514	4	STRAP	-
6	PE88170999	1	HOUSING	-
7	PE30112520	2	WASHER	-
8	PE72453134	2	HUB	(SUB PE50453141)
9	PE72453133	2	SPRING	(SUB PE50453143)
10	PE72453132	2	BEVEL GEAR	(SUB PE50453144)
11	PE72453137	2	THRUST RING	-
12	PE72453135	1	RING	-
13	PE72453136	1	SNAP RING	-
14	PE72453131	1	BEVEL GEAR DRIVE	(SUB PE50453145)
15	PE72453198	1	Bevel Gear	30 KM/H
15	PE67453189	1	Bevel Gear	25 KM/H
16	PE88170016	6	ADJUSTING STRAP	-
17	PE998554	12	Bolt	(SUB PE998573)
18	PE974436	1	RING	-
19	PE998555	12	BOLT	M12X1.5X35
20	PE67453106	1	Housing	-
21	PE88170092	2	PLUG	-
22	15M7065	1	Fitting	M30X1, (SUB FOR PE972730)
23	PE972156	1	Sealing Washer	-
24	PE970310	1	SNAP RING	-
25	PE970244	1	SNAP RING	-
26	PE971040	1	CYLINDRICAL ROLLER BEARING	-
27	PE974555	1	RING	-
28	PE970320	1	SNAP RING	(SUB PE970310)
29	PE88170105	1	WASHER	-
30	PE88170104	1	RING	-
31	PE88170071	1	Spacer	(SUB PE50453124)
32	PE974013	1	SEAL	-
33	PE88170022	1	WASHER	-
34	PE67453109	1	UNIVERSAL JOINT	-
35	P60505	2	Lubrication Fitting	-
36	PE88170084	1	Link	-
37	PE970296	8	SNAP RING	-
38	PE67453082	2	CROSS AND BEARING ASSEMBLY	(INCL KEY 35)
39	PE88170114	1	YOKE WITH SHAFT	(SUB PE67453120)
40	PE67453108	1	DRIVE SHAFT	(ASSY)
35A	P60506	2	Lubrication Fitting	-

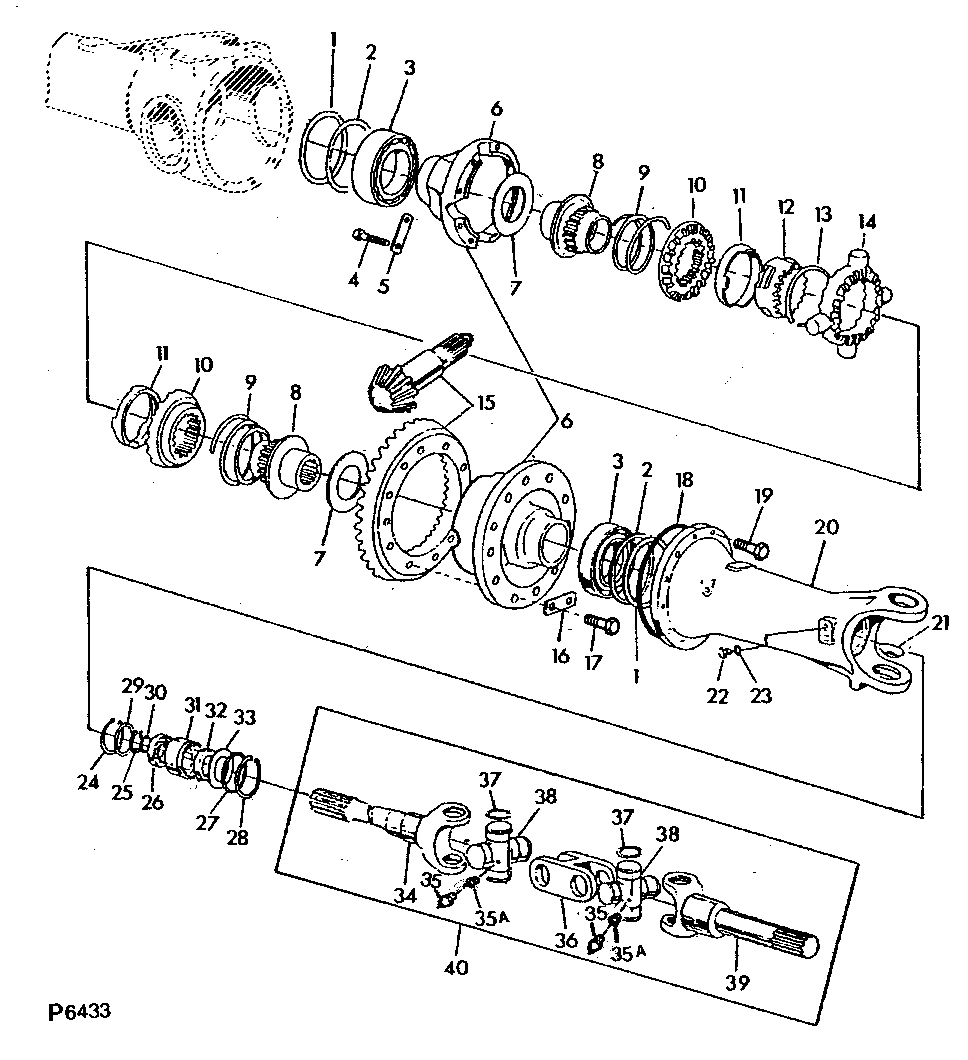

Front Wheel Drive / Axle Bridge / Differential, LH Side

Нет текстового описания
