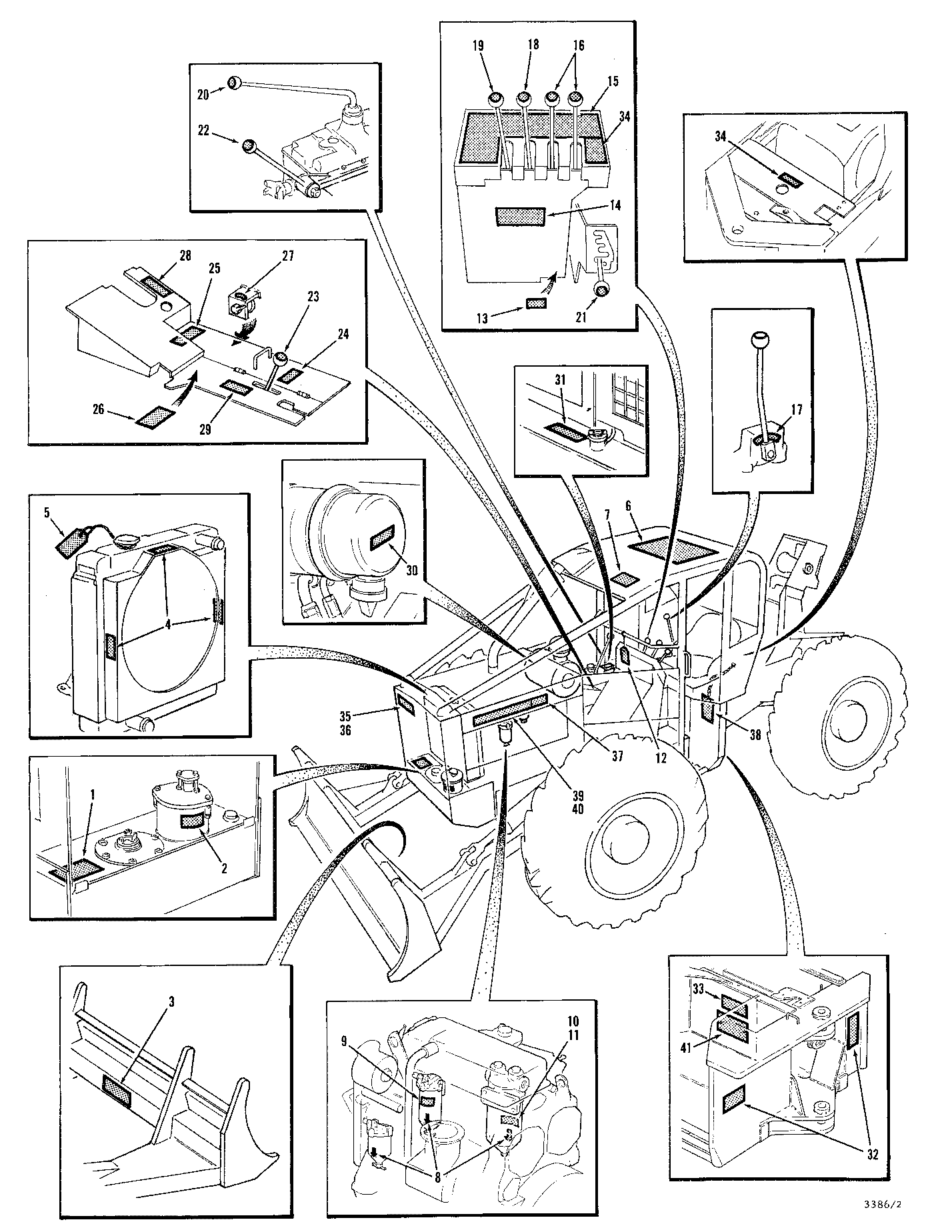

DECALS (7500) G A E E N 7510 DECALS( 800001 - ) 7510-010/12 [7510-010/12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N/A	1	O-RING	-
2	N/A	1	O-RING	-
3	N/A	1	O-RING	-
4	N/A	3	O-RING	-
5	N/A	1	O-RING	-
6	810325100	1	DECAL - LUBRICATION CHART	-
7	N/A	1	O-RING	-
8	N/A	3	O-RING	-
9	N/A	1	O-RING	-
10	N/A	1	O-RING	-
11	N/A	1	O-RING	-
12	N/A	1	O-RING	-
13	N/A	1	O-RING	-
14	N/A	1	O-RING	-
15	824912800	1	DECAL - INSTRUMENT PANEL	-
16	N/A	1	O-RING	-
17	N/A	1	O-RING	-
18	N/A	1	O-RING	-
19	N/A	1	O-RING	-
20	N/A	1	O-RING	-
21	N/A	1	O-RING	-
22	N/A	1	O-RING	-
23	N/A	1	O-RING	-
24	N/A	2	O-RING	-
25	N/A	1	O-RING	-
26	N/A	1	O-RING	-
27	N/A	1	O-RING	-
28	N/A	1	O-RING	-
29	N/A	1	O-RING	-
30	N/A	1	O-RING	-
31	N/A	1	O-RING	-
32	N/A	2	O-RING	-
33	N/A	1	O-RING	-
34	824708300	1	DECAL - TIMBERJACK DONKEY	-
35	823979100	1	EATON PLATE	-
36	810814600	6	RIVET	-
37	824349000	2	DECAL - 208 MODEL	-
38	823495700	1	SAFETY INSTRUCTION PACKAGE	-
39	824347700	2	TIMBERJACK PLATE	-
40	810831500	6	RIVET	-
41	N/A	1	O-RING	-
-	824349100	2	DECAL - 225 MODEL	-
-	824349200	2	DECAL - 230 MODEL	-
-	824349300	2	DECAL - 240 MODEL	-
-	N/A	2	O-RING	-
-	824715800	1	DECAL KIT - 208GSREX	-
-	824378900	1	DECAL KIT - 240GAEAN	-
-	824715500	1	DECAL KIT - 240GSEAN	-
-	824380000	1	DECAL KIT - 240GSEEW	-
-	824351100	1	DECAL KIT - 240TSEEW	-
-	824350200	1	DECAL KIT - 230GAEEW, 230GAEEN	-
-	824716800	1	DECAL KIT - 230GSEEW, 230GSEEN	-
-	824612500	1	DECAL KIT - 225TSRDD	-
-	824379600	1	DECAL KIT - 225TSREX	-
-	824603000	1	DECAL KIT - 225GSRDD	-
-	824715300	1	DECAL KIT - 225GSREX	-
-	824346000	1	DECAL KIT - 208TSREX	-

DECALS (7500) G A E E N 7510 DECALS( 800001 - ) 7510-010/12 [7510-010/12]

Нет текстового описания
