Открытый узел

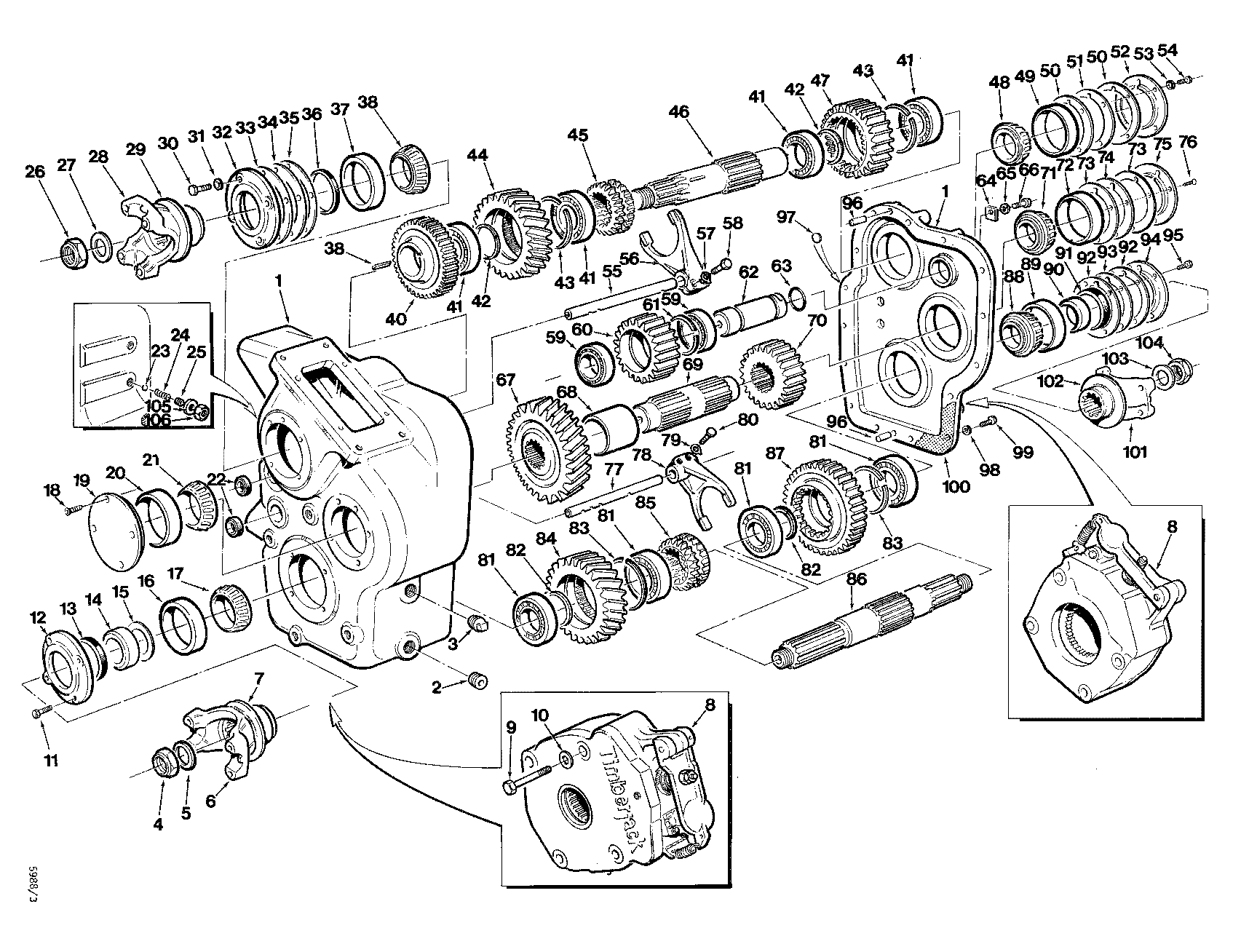

TRANSFER CASE MAIN BOX ( AA5191 - ) 1281-017/13 [1281-017/13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	825813800	1	HOUSING -	-
2	811378200	1	PLUG-MAGNETIC -	-
3	811026300	1	PLUG	-
4	810699700	1	LOCKNUT*1-14UNS	-
5	810020200	1	WASHER*1	-
6	811141700	1	YOKE*6C - OUTPUT	-
7	825203200	1	SLINGER -	-
8	-------	1	O-RING	-
9	810860600	8	BOLT*5/8-11UNCX5-1/4 -	-
10	810004500	8	LOCKWASHER*5/8	-
11	810080100	4	HEX HEAD BOLT 3/8-16 UNC X 1	-
12	825202100	1	COVER - OUTPUT SHAFT	-
13	810982800	1	SEAL	-
14	825203800	1	SLEEVE -	-
15	825366100	1	GASKET -	-
16	840838300	1	BEARING CUP -	-
17	840838400	1	BEARING CONE -	-
18	810809500	4	BOLT*3/8-16UNCX1 -	-
19	825202000	1	COVER - COUNTER SHAFT	-
20	840838300	1	BEARING CUP -	-
21	840838400	1	BEARING CONE -	-
22	811040400	2	SEAL	-
23	840014700	2	BALL	-
24	825431000	2	SPRING -	-
25	811019600	2	SET SCREW -	-
26	810699700	1	LOCKNUT*1-14UNS	-
27	810020200	1	WASHER*1	-
28	825203000	1	YOKE*1410 - INPUT	-
29	825203200	1	SLINGER -	-
30	840035800	4	BOLT*3/8-16UNCX7/8 -	-
31	810002600	4	LOCKWASHER 3/8	-
32	825201800	1	COVER - INPUT SHAFT	-
33	825204100	1	SHIM*.003 -	-
34	825204300	1	SHIM*.010 -	-
35	825204400	1	SHIM*.025 -	-
36	810930300	1	SEAL	-
37	840838300	1	BEARING CUP -	-
38	840838400	1	BEARING CONE -	-
39	825203300	1	KEY -	-
40	825201700	1	GEAR*39T -	-
41	842526100	4	BEARING -	-
42	810968000	2	WASHER -	-
43	811181200	2	SNAP RING -	-
44	825201000	1	GEAR*31T -	-
45	825492100	1	CLUTCH - SLIDING DOG	-
46	825200700	1	SHAFT - INPUT	-
47	825814000	1	GEAR*27T -	-
48	840838400	1	BEARING CONE -	-
49	840838300	1	BEARING CUP -	-
50	825204100	1	SHIM*.003 -	-
51	825204300	1	SHIM*.010 -	-
52	825201900	1	COVER -	-
53	810002600	4	LOCKWASHER 3/8	-
54	840035800	4	BOLT*3/8-16UNCX7/8 -	-
55	825508300	1	ROD - FOR/REV SHIFTER	-
56	825506300	1	FORK - SHORT	-
57	825512600	2	WASHER -	-
58	841398500	2	BOLT -	-
59	810136900	2	BEARING-BALL -	-
60	825813900	1	GEAR*27T -	-
61	825203500	1	RETAINING RING -	-
62	825202600	1	SHAFT - IDLER	-
63	810400800	1	O-RING -	-
64	825203700	1	WASHER -	-
65	810002600	1	LOCKWASHER 3/8	-
66	840035800	1	BOLT*3/8-16UNCX7/8 -	-
67	825201100	1	GEAR*38T -	-
68	825568800	1	SPACER -	-
69	825568900	1	SHAFT -	-
70	825204700	1	GEAR*29T -	-
71	840838400	1	BEARING CONE -	-
72	840838300	1	BEARING CUP -	-
73	825204100	1	SHIM*.003 -	-
74	825204300	1	SHIM*.010 -	-
75	825202000	1	COVER - COUNTER SHAFT	-
76	810809500	4	BOLT*3/8-16UNCX1 -	-
77	825508400	1	SHAFT - LOW/HIGH	-
78	825506400	1	FORK - LONG	-
79	825512600	2	WASHER -	-
80	841398500	2	BOLT -	-
81	842526100	4	BEARING -	-
82	810968000	2	WASHER -	-
83	811181200	2	SNAP RING -	-
84	825201000	1	GEAR*31T -	-
85	825492100	1	CLUTCH - SLIDING DOG	-
86	825200900	1	SHAFT - OUTPUT	-
87	825204800	1	GEAR*46T -	-
88	840838400	1	BEARING CONE -	-
89	840838300	1	BEARING CUP -	-
90	825203800	1	SLEEVE -	-
91	810982800	1	SEAL	-
92	825204100	1	SHIM*.003 -	-
93	825204300	1	SHIM*.010 -	-
94	825202100	1	COVER - OUTPUT SHAFT	-
95	810080100	4	HEX HEAD BOLT 3/8-16 UNC X 1	-
96	825265300	2	DOWEL PIN -	-
97	810968100	2	PLUG -	-
98	810002600	15	LOCKWASHER 3/8	-
99	810080200	15	BOLT*3/8-16UNCX1-1/4	-
100	840779100	1	SEALANT-SILICONE	-
101	811141700	1	YOKE*6C - OUTPUT	-
102	825203200	1	SLINGER -	-
103	810020200	1	WASHER*1	-
104	810699700	1	LOCKNUT*1-14UNS	-
105	810053200	2	NUT*1-14UNS -	-
106	810011600	2	WASHER*1/2	-
-	825203100	1	YOKE*1480 - OUTPUT	-
-	825203100	1	YOKE*1480 - OUTPUT	-
-	825546300	1	YOKE*1480 - INPUT	-

TRANSFER CASE MAIN BOX ( AA5191 - ) 1281-017/13 [1281-017/13]

Нет текстового описания
