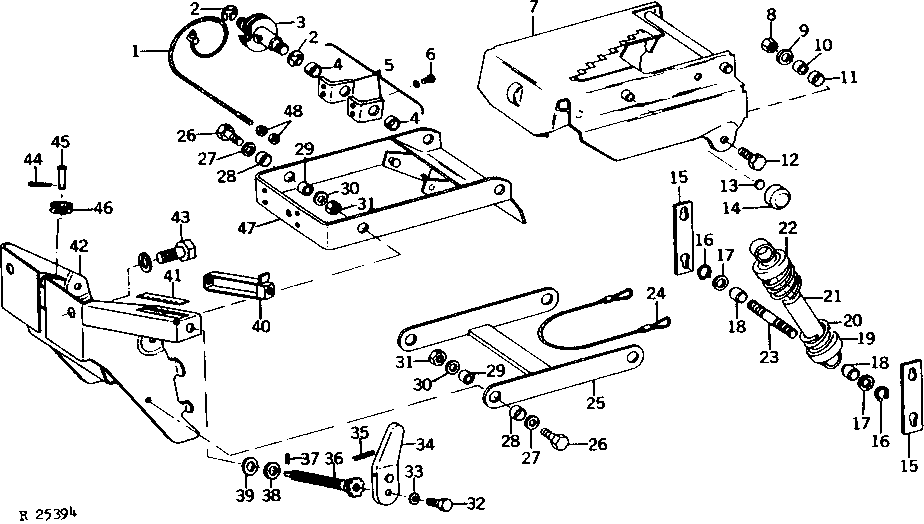

SEAT SUSPENSION (PERSONAL POSTURE SEAT) [H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR79813	1	Cable	-
2	R27434	2	Snap Ring	-
3	AR72842	1	REEL	-
4	R51648	2	WASHER	-
5	AR72848	2	BRACKET	-
6	19H2127	4	Cap Screw	5/16" X 7/8"
6	12H303	4	Lock Washer	5/16"
7	AR71099	1	FRAME	SEAT SUSPENSION
8	E50102	4	Lock Nut	(SUB FOR C744DN OR M63440)
9	R27441	4	Washer	SPECIAL
10	R51649	4	Bearing Race	-
11	R51648	4	WASHER	-
12	19H2552	4	CAP SCREW	3/8" X 1-1/8"
13	R26873	1	Solid Shim	0.51 MM (.020") STEEL
13	R26872	1	SOLID SHIM	0.25 MM (.010") STEEL
14	R26436	4	ROLLER	-
15	R60024	2	LINK	SHOCK ABSORBER
16	F2863R	2	Snap Ring	-
17	R1836R	2	Washer	SPECIAL
18	R26832	2	BUSHING	-
19	R26879	1	CAP	-
20	R60319	1	SPRING	-
21	R125989	1	Washer	(SUB RE62234 AND R125989)
22	R27442	1	CAP	(SUB R125989)
22	R125989	1	Washer	(USE WITH RE62234)
23	R60025	1	SHAFT	-
24	AR72841	1	CABLE	-
25	AR88527	1	LINK	(SUB FOR AR71098)
26	19H1800	4	Cap Screw	3/8" X 1-1/2"
27	R27441	4	Washer	SPECIAL
28	R51648	4	WASHER	-
29	R51649	4	Bearing Race	-
30	R53436	4	Washer	SPECIAL
31	E50102	4	Lock Nut	(SUB FOR C744DN OR M63440)
32	R72371	1	Cap Screw	(SUB FOR R43569)
33	24M7028	1	Washer	10.500 X 20 X 2 MM
34	AR73562	1	LEVER	-
35	R60657	1	SPRING	-
36	AR73561	1	SCREW	WITH GEAR, WEIGHT ADJUSTMENT
37	34H228	1	SPRING PIN	3/32" X 9/16"
38	R70268	1	Washer	SPECIAL, (SUB FOR R42363)
39	R60021	1	Washer	SPECIAL
40	AR72838	1	FORK	-
41	R65442	1	LABEL	WEIGHT ADJUSTMENT INDICATOR, (SUB FOR R60173)
42	AR79814	1	SUPPORT	-
43	19H2993	4	Cap Screw	1/2" X 1-1/2"
43	12H301	4	Lock Washer	1/2"
44	11M7015	1	Cotter Pin	3.200 X 25 MM
45	R31044	1	Pin Fastener	-
46	R60019	1	IDLER	-
47	AR71097	1	ARM	-
48	14H850	2	NUT	1/4"

SEAT SUSPENSION (PERSONAL POSTURE SEAT) [H07]
