Открытый узел

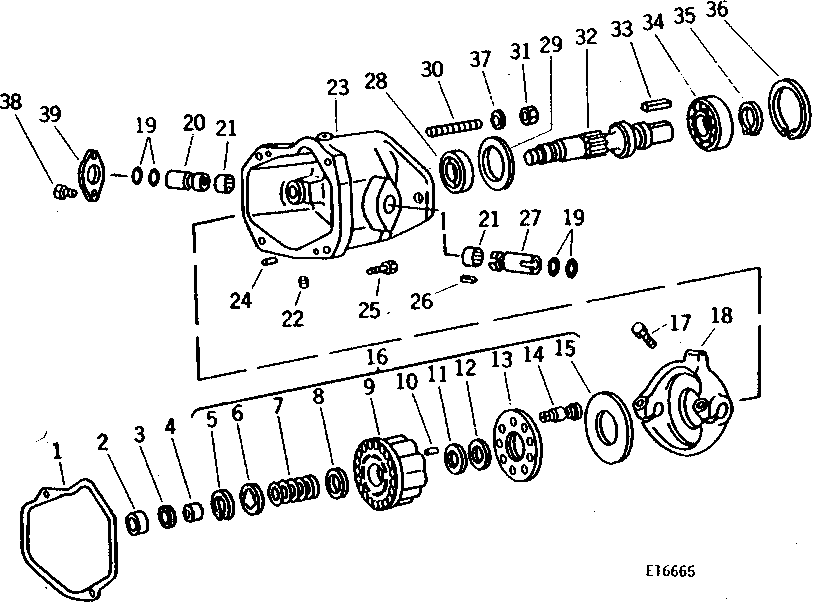

HYDROSTATIC TRANSMISSION MOTOR [F18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AE39176)
2	JD8837	1	Needle Bearing	(VICKERS 214118)
3	N105572	1	Snap Ring	(VICKERS 322901)
4	E43462	1	SLEEVE	(VICKERS 292500)
5	H80753	1	Snap Ring	(VICKERS 93509)
6	E43483	1	WASHER	(SUB AE26149) (VICKERS 245223) NO LONGER AVAILABLE
7	E43484	1	SPRING	(VICKERS 247294) (NO LONGER AVAILABLE)
8	E43485	1	WASHER	(VICKERS 241954) (NO LONGER AVAILABLE)
9	-	1	Part 9	(SUB AE26147)
10	-	3	Part 10	(SUB AE39611)
11	-	1	Part 13	3.80 MM-3.82 MM (0.1495-0.1505) (VICKERS 424535) (SUB AE39611)
11	-	1	Part 12	3.54 MM-3.57 MM (0.1395-0.1405) (VICKERS 424534) (SUB AE39611)
11	-	1	Part 11	3.26 MM-3.29 MM (0.1285-0.1295) (VICKERS 424533) (SUB AE39611)
12	E61442	1	WASHER	(VICKERS 423324) (SUB FOR E43488 OR E48287) (ORDER AE39610)
13	E43490	1	PLATE	(VICKERS 275961)
14	-	1	Part 16	(9 PISTONS) (SUB AE26147)
15	E43491	1	SWASH PLATE	(VICKERS 239077)
16	AE39610	1	KIT	ROTATING PARTS (VICKERS 923846) (SUB FOR AE26146)
17	19H3100	2	CAP SCREW	7/16" X 2", UNF, HS, SAE 8
18	AE27080	1	YOKE	(INCLUDES 19H3100) (VICKERS 325689)
19	-	4	Part 21	(SUB AE39176)
20	E53441	1	SHAFT	(VICKERS 392290)
21	JD8802	2	Needle Bearing	(VICKERS 12016)
22	E43476	2	PLUG	(VICKERS 113000)
23	E53437	1	HOUSING	(VICKERS 392304)
24	E43466	2	PIN FASTENER	(VICKERS 167237)
25	E43685	4	SCREW	(VICKERS 329776)
26	E61443	1	KEY	(VICKERS 474963) (SUB FOR T13839, THIS APPLICATION)
27	AE45404	1	KIT	(VICKERS 942425) (SUB FOR E53442 OR E61444) (INCLUDES E61444 AND E61443)
28	-	1	Part 30	(SUB AE39176)
29	E43470	1	SPACER	(VICKERS 274382)
30	E63198	1	SCREW	(VICKERS 361771)
31	E43478	1	NUT	(VICKERS 333844)
32	E43481	1	SHAFT	(VICKERS 317149)
33	-	1	Part 35	6 MM X 6 MM X 32 MM (1/4" X 1/4" X 1-1/4") (CUT FROM H64374, 305 MM (12") LENGTH)
34	JD9402	1	BALL BEARING	(VICKERS 326805)
35	L1188N	1	Snap Ring	(VICKERS 119982)
36	E43473	1	SNAP RING	(VICKERS 120428)
37	E47759	1	WASHER	(VICKERS 266061)
38	21H1167	4	Screw	0.190" X 1/4", MACH.
39	E53440	2	COVER	(VICKERS 347573)
..	AE39176	1	KIT	SEAL REPAIR (VICKERS 923851) (SUB FOR AE31717)
..	AE26147	1	KIT	CYLINDER BLOCK AND PISTONS (VICKERS 923324)
..	AE39611	1	KIT	SHIM, (SUB FOR AE37854)

HYDROSTATIC TRANSMISSION MOTOR [F18]

Нет текстового описания
