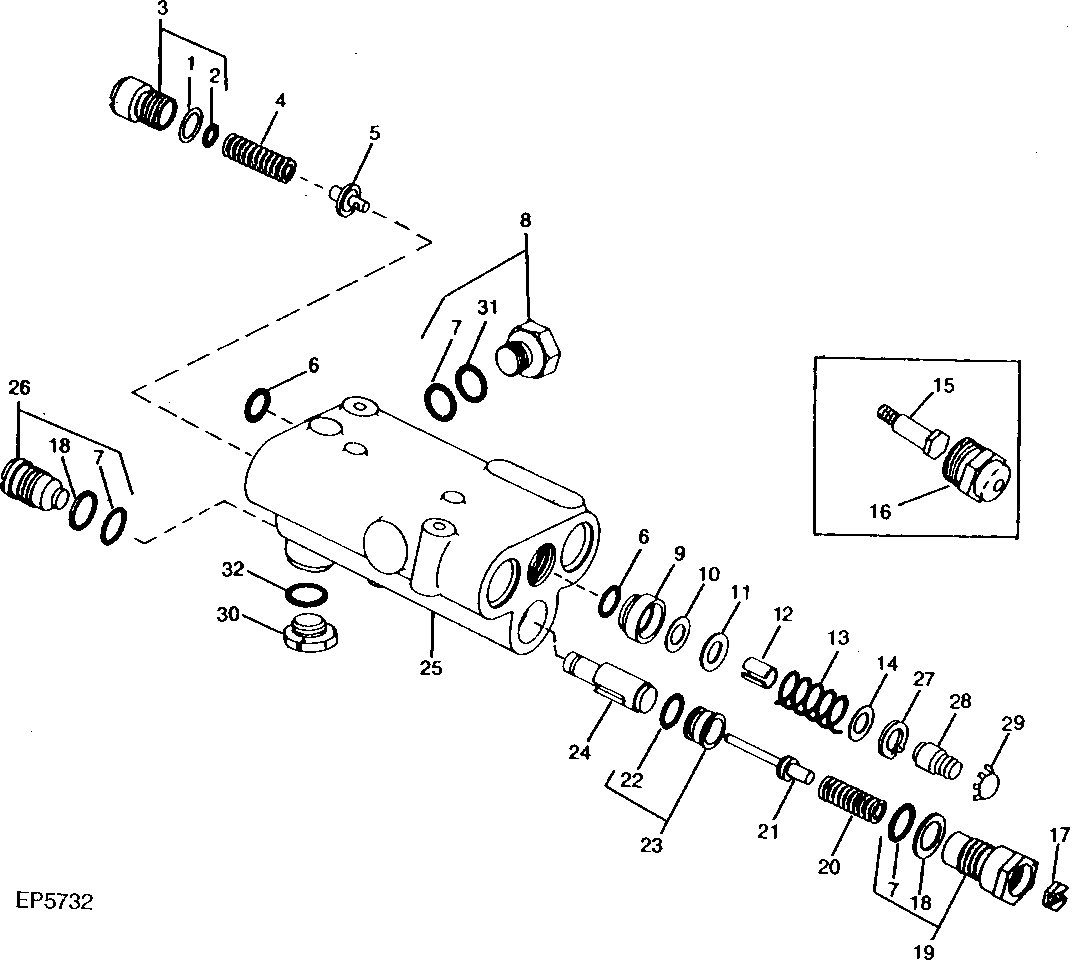

DRAPER REEL LIFT CONTROL VALVE (ONE SPOOL) [F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24871	1	SHIM	0.38 MM (.015")
1	T34463	1	SHIM	(SUB FOR H31257) 0.25 MM (.010")
1	N111502	1	Washer	0.89 MM (.035")
2	32246	1	O-Ring	(A) (2 USED IN AE27341, 1 USED IN AE42233)
3	AE25156	1	PLUG	-
4	H60817	1	Spring	-
5	E40775	1	Poppet	-
6	H132510	2	O-Ring	(A) (SUB FOR M81668)
7	U40745	1	O-Ring	(A) (3 USED IN AE27341, 2 USED IN AE42233)
7	R10093	1	O-Ring	(A)
8	AE24793	1	FITTING	-
9	N150470	1	Bushing	-
10	M46768	1	WASHER	-
11	M46767	1	Washer	-
12	N150469	1	BUSHING	-
13	N150471	1	Spring	-
14	N153975	1	WASHER	-
15	N150468	1	SCREW	-
16	AH78780	1	CAP	-
17	E42985	1	Orifice	2.8 MM (.110") HOLE
18	H63357	2	BACK-UP RING	(A)
19	AE24788	1	Plug	-
20	E40772	1	Spring	-
21	AN30940	1	POPPET	(A)
22	R28776	1	O-Ring	(A) (2 USED IN AE27341, 1 USED IN AE42233)
23	AE24787	1	Seal	-
24	H35229	1	PLUNGER	-
24	E58756	1	PLUNGER	-
25	-	1	Part 29	(SUB AE30638)
26	AE24792	1	Plug	-
27	M44169	1	SNAP RING	-
28	AM38629	1	CAP	(SUB M82702 AND T13911)
28	M82702	1	Drain Plug	-
29	T13911	1	PLUG	-
30	AE24798	1	Fitting	-
31	E41820	1	Back-Up Ring	(A)
32	R26448	1	O-Ring	(A)
..	AE42230	1	CONTROL VALVE	COMPLETE, (SUB FOR AE30638)
..	AE27341	1	SEAL KIT	(INCLUDES PARTS MARKED (A))
..	AE42233	1	SEAL KIT	(INCLUDES PARTS MARKED (A))

DRAPER REEL LIFT CONTROL VALVE (ONE SPOOL) [F24]
