Auxiliary Low Flow Control Valve Hydraulic Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9218033	1	Pump	-
1	4286986	2	Control Valve	-
2	4295463	1	Pressure Relief Valve	-
3	8108840	1	Bracket	-
4	J271040	3	Screw With Washer	-
5	-	4	Part 6	(J271030 NLA)
5	19M7358	4	Cap Screw	M10 X 40, (SUB FOR J901040)
5	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
8	A852143	2	Adapter Fitting	-
9	A853144	1	Adapter Fitting	-
10	A853166	1	Adapter Fitting	-
11	A853366	1	Elbow Fitting	-
12	A853566	1	Tee Fitting	-
13	A852133	1	Adapter Fitting	-
14	A853244	1	Elbow Fitting	-
17	4412036	1	Hydraulic Hose	-
18	4469452	1	Hydraulic Hose	-
18	-	1	Part 19	(MF XHG-100, CTL 600 mm) (4446406 NLA)
18	-	1	Part 17	(9275823 NLA)
19	T77858	6	O-Ring	(SUB FOR 4187308)
20	T77857	2	O-Ring	(SUB FOR 4138938)
26	-	1	Part 22	(9275819 NLA)
26	4668585	1	Hydraulic Hose	-
26	-	1	Part 24	(MF E90991, CTL 600 mm) (4327315 NLA)
27	-	1	Part 25	(9275821 NLA)
27	4668587	1	Hydraulic Hose	-
27	-	1	Part 27	(MF E90991, CTL 600 mm) (4327315 NLA)
28	-	1	Part 28	(9275820 NLA)
28	4668586	1	Hydraulic Hose	-
28	-	1	Part 30	(MF E90991, CTL 600 mm) (4327315 NLA)
29	-	1	Part 33	(MF XHG-100, CTL 600 mm) (4446406 NLA)
29	4361976	1	Hydraulic Hose	-
29	-	1	Part 31	(9275822 NLA)
40	4411001	1	Flow Control Hyd. Valve	-
41	-	2	Part 35	(J260845 NLA)
41	19M8359	2	Cap Screw	M8 X 45, (SUB FOR J900845)
41	24M7055	2	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
44	4154670	2	Elbow Fitting	(SUB FOR A852322)
45	4154670	2	Elbow Fitting	-
46	A885002	1	Plug	-
47	4154670	1	Elbow Fitting	(SUB FOR A852322)
48	A852122	1	Adapter Fitting	-
51	4458098	1	Hose	-
52	4478278	1	Hose	-
54	-	1	Part 45	(9275814 NLA)
54	4668580	1	Hydraulic Hose	-
54	-	1	Part 47	(MF E90991, CTL 600 mm) (4327315 NLA)
55	4668579	1	Hydraulic Hose	-
58	4204136	1	Clip	-
59	XCL-29	2	Hose Clamp	(SUB FOR 4190264)
60	4457233	2	Bushing	-
61	-	2	Part 52	(J271020 NLA)
61	19M7938	2	Cap Screw	M10 X 20, (SUB FOR J901020)
61	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
64	H77698	2	Tie Band	(SUB FOR 4055312)
65	H77698	8	Tie Band	(SUB FOR 4121859)
66	4453084	2	Grommet	-
70	9761676	1	Bracket	-
80	-	1	Part 59	(9275815 NLA)
80	4669655	1	Hydraulic Hose	-
80	-	1	Part 61	(MF E90991, CTL 600 mm) (4327315 NLA)
90	AT337187	1	Field Installation Kit	Low Flow Auxiliary Lines 2.91 m Arm, (A) (WHOLE GOODS)

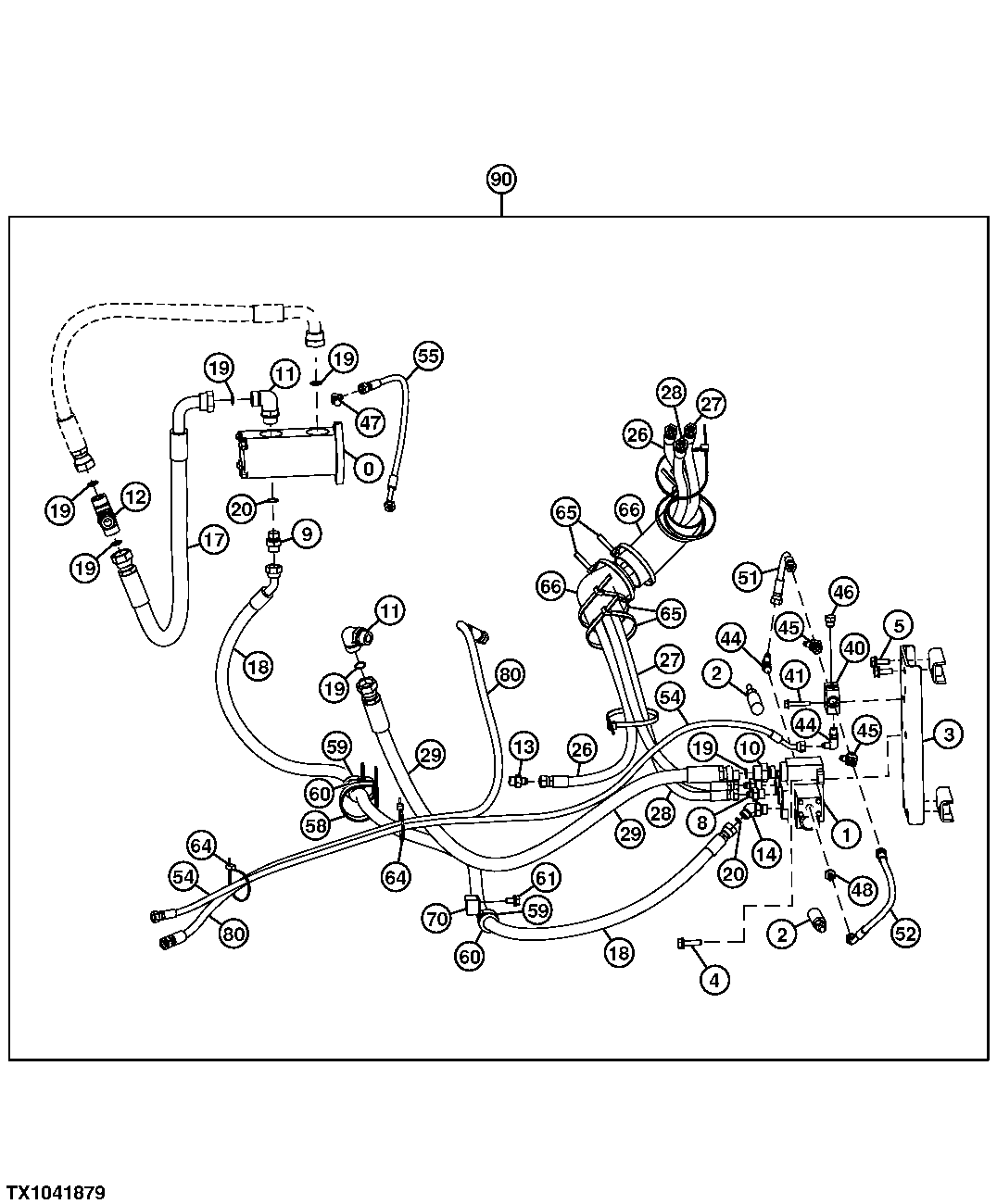

Auxiliary Low Flow Control Valve Hydraulic Lines
