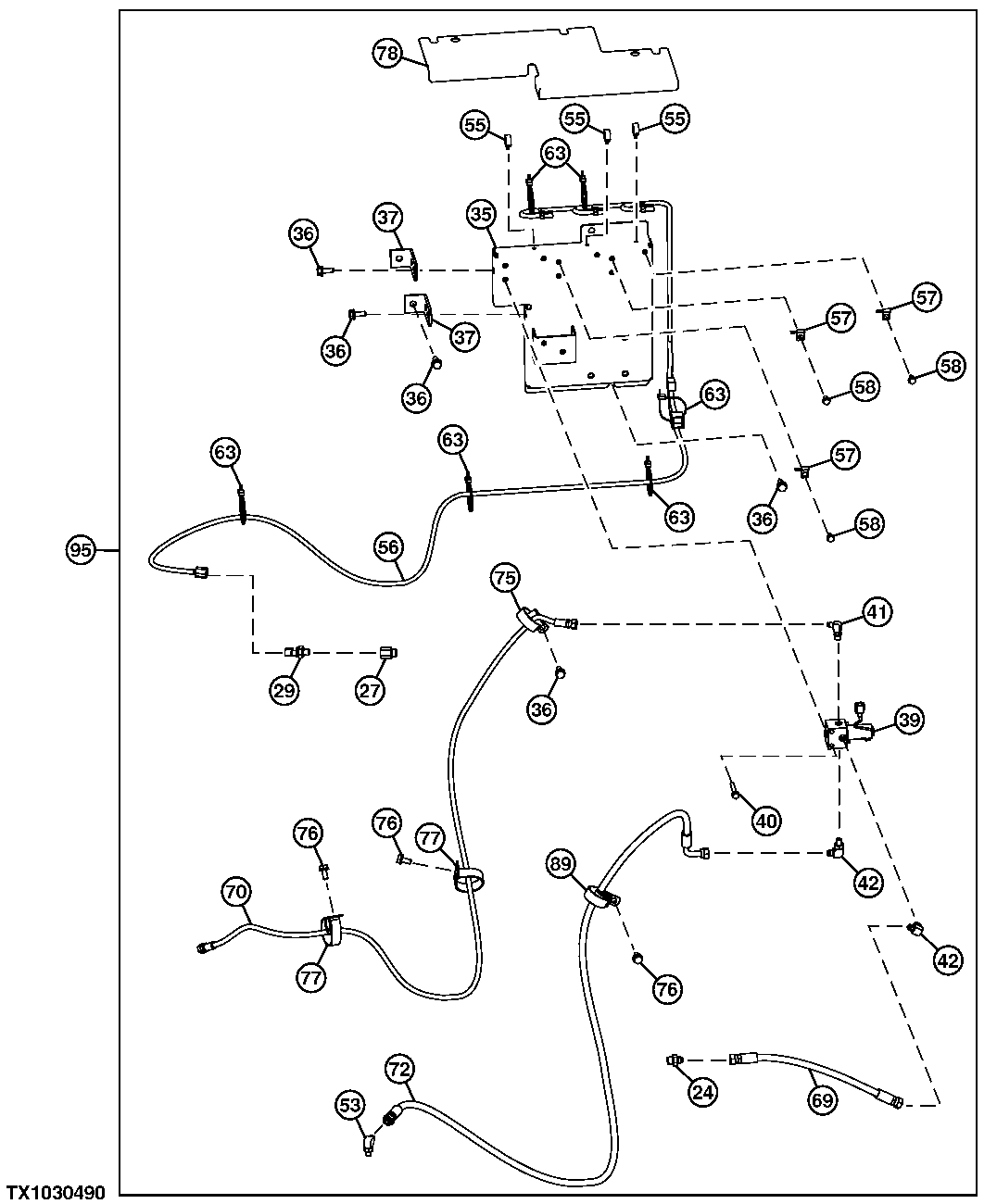

Auxiliary Equipment Hydraulic Hoses and Brackets

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
24	4297380	1	O-Ring	SUB FOR 4509180, 4674883 OR 4622346
24	A852133	1	Adapter Fitting	-
27	4263446	1	Reducer	-
29	4436535	1	Sensor	-
35	7051216	1	Bracket	-
36	-	6	Part 6	J271030 NLA
36	19M7662	6	Cap Screw	M10 X 30, SUB FOR J901030
36	24M7346	6	Washer	11 X 20 X 2 mm, SUB FOR J222010
37	4658557	2	Bracket	-
39	4729022	1	Solenoid Valve	SUB FOR 4261289
40	-	2	Part 11	J260860 NLA
40	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J900860
40	19M6451	2	Cap Screw	M8 X 60, SUB FOR A590108
41	4154670	1	Elbow Fitting	SUB FOR A852322
42	A852323	2	Elbow Fitting	-
53	A852323	1	Elbow Fitting	-
55	4449250	3	Clip	-
56	3109455	1	Wiring Harness	-
57	4602634	3	Bracket	SUB FOR 4257159
58	-	3	Part 20	J260820 NLA
58	24M7055	3	Washer	8.400 X 16 X 1.600 mm, SUB FOR J900820
58	19M6451	3	Cap Screw	M8 X 60, SUB FOR A590108
63	H77698	6	Tie Band	SUB FOR 4055312
69	4660537	1	Hydraulic Hose	-
70	-	1	Part 25	9278529 NLA
70	4664123	1	Hydraulic Hose	-
70	4327315	1	Hose Guard	4327293 NLA
72	-	1	Part 28	9278531 NLA
72	4664161	1	Hydraulic Hose	-
72	4327315	1	Hose Guard	4327293 NLA
75	N198631	1	Clamp	SUB FOR 4190265
76	-	3	Part 32	J271025 NLA
76	19M7402	3	Cap Screw	M10 X 25, SUB FOR J901025
76	24M7346	3	Washer	11 X 20 X 2 mm, SUB FOR J222010
77	R134002	2	Clamp	SUB FOR 4193816
78	-	1	Part 36	3109555 NLA
89	M45242	1	Clamp	SUB FOR 4190292
95	-	1	Part 38	Whole Goods 2.42 m Arm High Flow Auxiliary Lines Additional Components On Separate Pages, AT341999 NLA
95	-	1	Part 39	Whole Goods 2.91 m Arm High Flow Auxiliary Lines Additional Components On Separate Pages, AT336086 NLA

Auxiliary Equipment Hydraulic Hoses and Brackets

Нет текстового описания
