AIR CONDITIONING COMPRESSOR MOUNTING AND BELT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7066	5	Lock Washer	10 mm, SUB FOR A590910
5	24M7028	5	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
6	4346770	1	Pulley	-
7	19M8404	4	Cap Screw	M8 X 130, SUB FOR J900806
8	-	4	Part 6	12M7065 NLA
9	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
11	4413418	1	Hose	-
11	4421946	2	O-Ring	(ONE FOR EACH END OF HOSE <service-part>4413418</service-part>)
12	19M8260	1	Cap Screw	M10 X 40
14	19M7402	4	Cap Screw	M10 X 25, SUB FOR J021020
14	24M7096	4	Washer	10.500 X 18 X 1.600 mm
14	12M7066	4	Lock Washer	10 mm
16	19M8008	1	Cap Screw	M8 X 35, SUB FOR J020835, USE WITH 12M7065 AND 24M7055
16	-	1	Part 15	12M7065 NLA
16	24M7055	1	Washer	8.400 X 16 X 1.600 mm
17	H77698	2	Tie Band	-
18	T24432	1	Clamp	SUB FOR 4190277
19	R72659	1	Clamp	SUB FOR 4190263 OR 4235654
20	19M7402	2	Cap Screw	M10 X 25, SUB FOR J021025
20	12M7066	2	Lock Washer	10 mm
20	24M7028	2	Washer	10.500 X 20 X 2 mm
21	T116333	2	Bolt	SUB FOR M111030
22	THM111060	2	Bolt	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
28	19M7874	1	Cap Screw	M6 X 30, SUB FOR J020630
28	24M7054	1	Washer	6.400 X 12 X 1.600 mm
28	12H302	1	Lock Washer	1/4"
29	7038468	1	Bracket	-
30	4612283	1	V-Belt	SUB FOR 4198588, 4410219
31	9753632	1	Bracket	-
32	9756172	1	Bracket	-
33	19M7881	4	Screw	M8 X 20, SUB FOR J020820
6A	4451204	1	Bolt	-

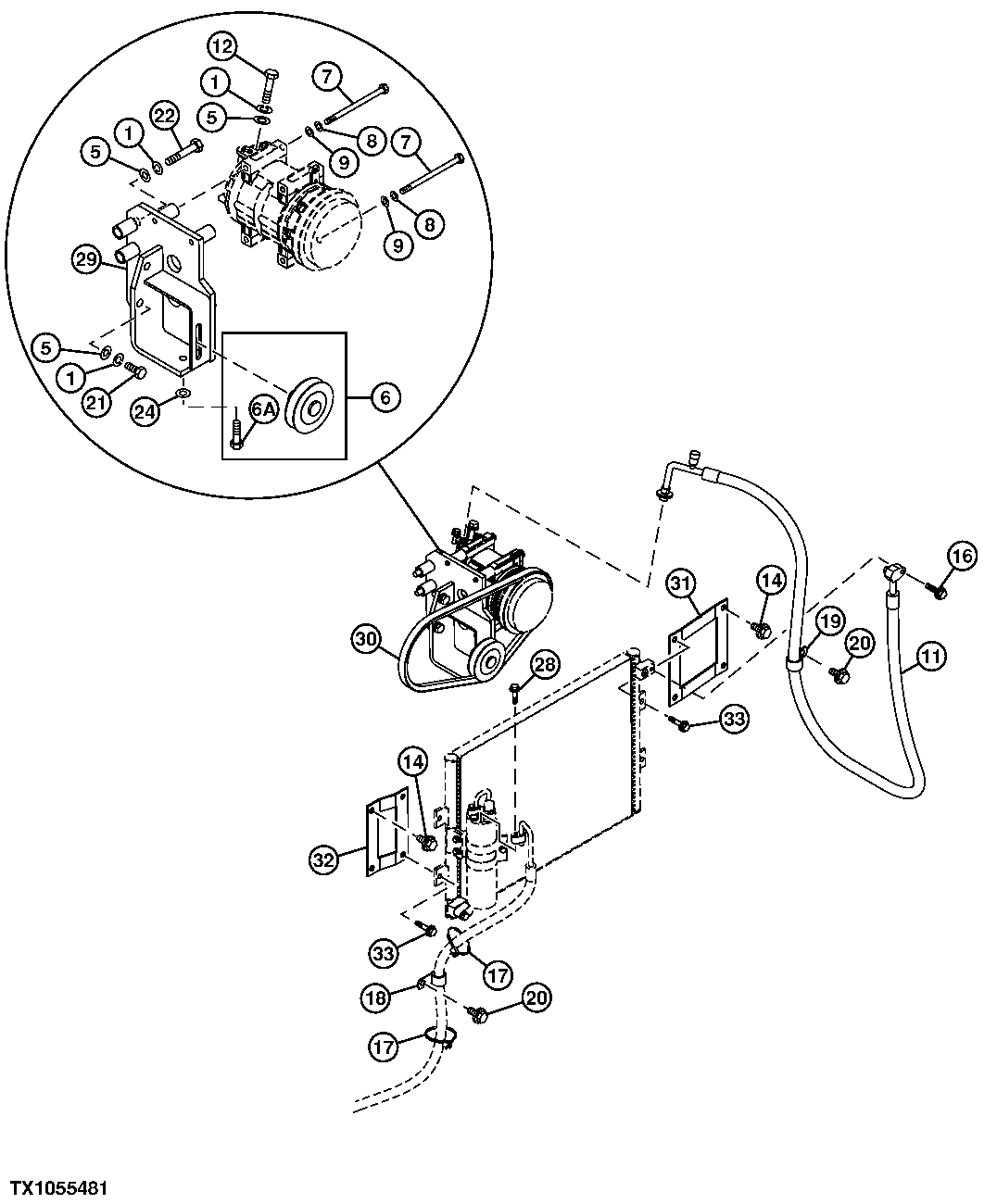

AIR CONDITIONING COMPRESSOR MOUNTING AND BELT

Нет текстового описания
