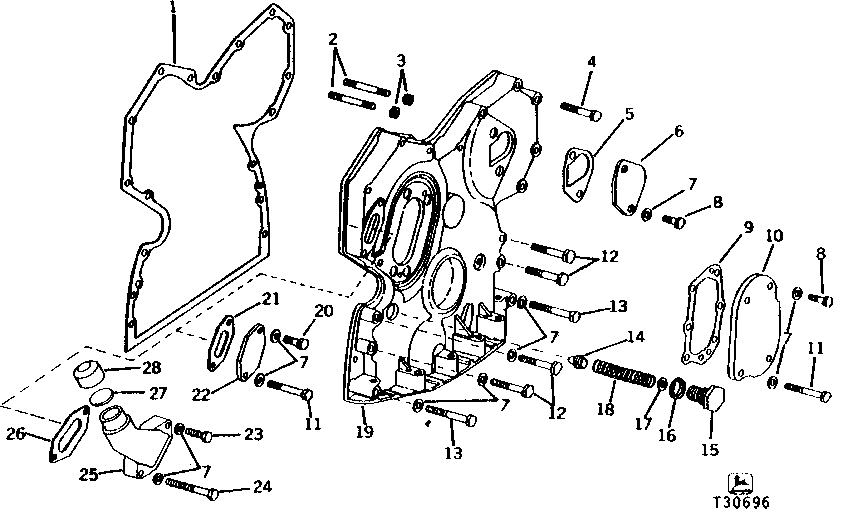

TIMING GEAR COVER (JOHN DEERE 4219D ENGINE) [B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20155	1	GASKET	-
2	R122226	2	Stud	(SUB FOR T33279)
3	14H812	2	NUT	3/8"
4	19H3065	5	Cap Screw	3/8" X 2"
5	R78366	1	GASKET	(SUB FOR T20364 AND R69260)
6	R126041	1	Cover	(SUB FOR T20362)
7	24M7106	1	Washer	10 X 18 X 2.500 MM
8	R124277	3	Cap Screw	(SUB FOR R122618, THIS APPLICATION)
9	T20273	1	GASKET	-
10	T20272	1	COVER	-
11	19H1726	4	Cap Screw	3/8" X 2-1/4"
12	19H1801	4	CAP SCREW	3/8" X 2"
13	19H3031	2	Cap Screw	3/8" X 2-1/2"
14	R83169	1	Valve	(SUB FOR R51516)
15	T27657	1	FITTING PLUG	-
16	A4827R	1	Washer	-
17	24H1290	1	Washer	21/64" X 3/4" X 0.035"
18	T27658	1	Spring	-
19	AR58196	1	COVER	WITH INSERTS, (ALSO ORDER T20272, T20273, (3) 19H2284, 19H1726, (3) 24M7106 AND 15H275) (MARKED R52880) (SUB FOR AT19509) (MARKED T20153)
20	R124277	1	Cap Screw	(SUB FOR R122618, THIS APPLICATION)
21	T20336	1	GASKET	-
22	T23260	1	Cover	-
23	19H3267	1	Cap Screw	3/8" X 1-5/8"
24	19H2458	1	Cap Screw	3/8" X 3"
24	19H2855	1	Cap Screw	3/8" X 3-1/4"
25	RE25648	1	Filler Neck	(SUB FOR T24192 AND RE44199) (ALSO ORDER R87259)
26	T20336	1	GASKET	-
27	T20328	1	Gasket	-
28	R90788	1	PLUG	-
