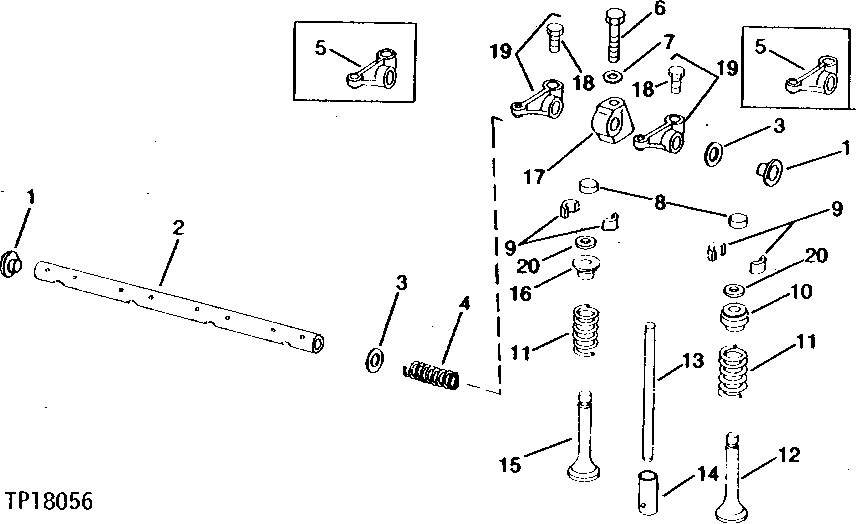

ROCKER ARMS AND VALVES (JOHN DEERE 4219D ENGINE) [C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54565	2	Plug	-
2	DD12120	1	Rocker Arm Shaft	-
3	T20316	2	Washer	-
4	T20314	3	Spring	-
5	RE31973	8	Rocker Arm	(SUB FOR AT22665, AR103769 AND RE19031)
5	T23521	8	SCREW	(SUB RE31973)
6	19H3031	4	Cap Screw	3/8" X 2-1/2"
7	T23594	4	WASHER	-
8	T20129	8	Cap	-
9	T20077	16	Retainer	-
10	T20176	4	RETAINER	-
10	R41412	4	CAP	(SUB FOR T20176)
11	R26125	8	Spring	-
12	R79625	4	EXHAUST VALVE	(SUB FOR T23549 AND R57333) 0.08 MM (0.003") OVERSIZE STEM
12	-	4	Part 17	(SUB FOR T23551 AND R57337) ( R79627 NO LONGER AVAILABLE) 0.76 MM (0.030") OVERSIZE STEM
12	R79626	4	EXHAUST VALVE	(SUB FOR T23550 AND R57335) 0.38 MM (0.015") OVERSIZE STEM
12	R79624	4	EXHAUST VALVE	STANDARD STEM, (SUB FOR R52252)
13	R82896	8	PUSH ROD	(SUB FOR T20310)
14	T20073	8	Cam Follower	-
15	R79623	4	Intake Valve	STANDARD, (SUB FOR R52251)
15	R79628	4	INTAKE VALVE	(SUB FOR T23546 AND R57332) 0.08 MM (0.003") OVERSIZE STEM
15	R79629	4	INTAKE VALVE	(SUB FOR T23547 AND R57334) 0.38 MM (0.015") OVERSIZE STEM
15	-	4	Part 23	(SUB FOR T23548 AND R57336) ( R79630 NO LONGER AVAILABLE) 0.76 MM (0.030") OVERSIZE STEM
16	R41412	4	CAP	(SUB FOR T20176)
17	T20315	4	SUPPORT	-
18	T32213	1	SCREW	(SUB RE31973)
19	RE31973	8	Rocker Arm	(SUB FOR AT31250, AR103769 AND RE19031)
20	R87627	4	O-RING	EXHAUST, (SUB FOR R27976, THIS APPLICATION) (USE WITH R79624, R79625, R79626 AND R79627)
20	R87627	4	O-RING	INTAKE, (SUB FOR R27976, THIS APPLICATION) (USE WITH R79623, R79628, R79629 AND R79630)

ROCKER ARMS AND VALVES (JOHN DEERE 4219D ENGINE) [C03]
