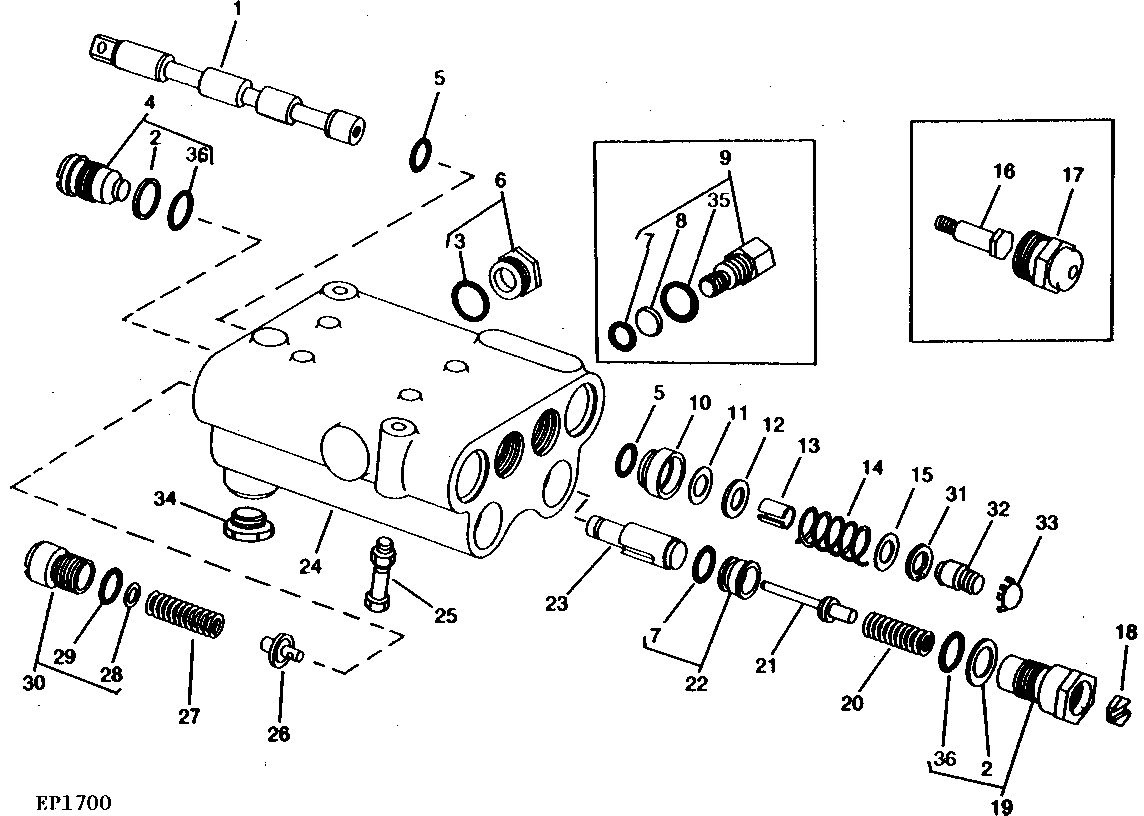

PLATFORM LIFT CONTROL VALVE (TWO SPOOL) [H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(SUB AE23486)
2	H63357	4	BACK-UP RING	(A)
3	R375R	5	O-Ring	(A)
4	AE24792	2	Plug	-
5	M81668	4	SEAL	(A) (SUB FOR R394R)
6	AE24793	1	FITTING	-
7	R28776	3	O-Ring	(A)
8	E41820	1	Back-Up Ring	(A)
9	AN150268	1	ADAPTER	(USED WITH DRAPER PLATFORM)
10	N150470	2	Bushing	-
11	M46768	2	WASHER	-
12	M46767	2	Washer	-
13	N150469	2	BUSHING	-
14	N150471	2	Spring	-
15	N153975	2	WASHER	-
16	N150468	2	SCREW	-
17	AH78780	2	CAP	-
18	E53004	1	ORIFICE	(FAST DROP) (3.96 MM (.156") HOLE) (R.H. PORT WITH SLOT DOWN)
18	E40500	1	Orifice	(SLOW DROP) (1.98 MM (.078") HOLE) (L.H. PORT WITH SLOT DOWN)
19	AE24788	2	Plug	-
20	E40772	2	Spring	-
21	AN30940	2	POPPET	(A)
22	AE24787	2	Seal	-
23	E58756	2	PLUNGER	-
23	H35229	2	PLUNGER	-
24	-	1	Part 26	(SUB AE23486)
25	19H1996	2	Cap Screw	1/4" X 2"
25	14H786	2	Nut	1/4"
26	E40775	1	Poppet	-
26	AE40312	1	POPPET	-
27	H60817	1	Spring	-
27	N117672	1	SPRING	-
28	H31257	1	SHIM	0.25 MM (.010")
28	T24871	1	SHIM	0.38 MM (.015")
28	N111502	1	Washer	0.89 MM (.035")
29	32246	1	O-Ring	(A)
30	AE25156	1	PLUG	-
31	M44169	1	SNAP RING	(USE WITH AE42232)
32	AM38629	1	CAP	(USE WITH AE42232)
32	M82702	1	Drain Plug	-
33	T13911	1	PLUG	(USE WITH AE42232)
34	AE24798	1	Fitting	-
35	R375R	1	O-Ring	-
36	U40745	4	O-Ring	-
..	AE23486	1	VALVE	ASSEMBLY COMPLETE
..	AE39127	1	CONTROL VALVE	-
..	AE42232	1	CONTROL VALVE	-
..	AE24790	1	SEAL KIT	INCLUDES ALL PARTS IDENTIFIED BY (A)
..	AE42234	1	SEAL KIT	INCLUDES ALL PARTS IDENTIFIED BY (A)
