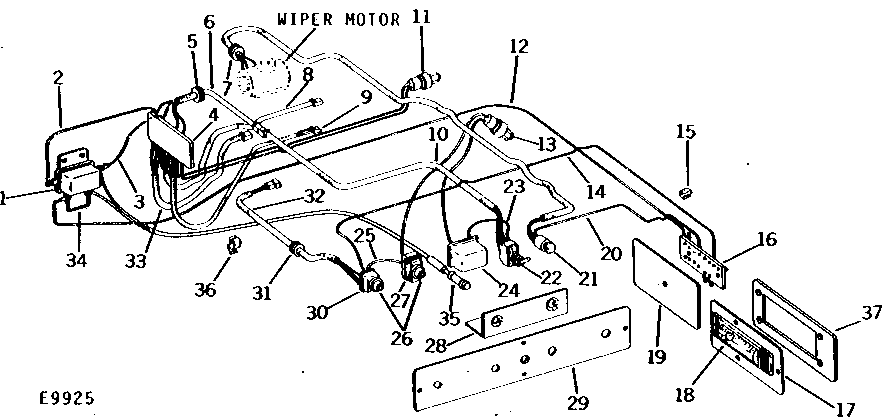

OPERATOR'S CAB WIRING AND SWITCHES (YEAR -1974) [E20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH83294	1	Relay	-
2	-	1	Part 2	27.9 CM (11") LONG (MAKE FROM TY16076 AND TWO R32018 FROM TY26194 WIRE REPAIR KIT)
3	-	1	Part 3	27.9 CM (11") LONG (MAKE FROM TY16076 AND TWO R32018 FROM TY26194 WIRE REPAIR KIT)
4	H81849	1	Terminal	-
5	H81678	1	Grommet	-
6	AH84585	1	Wiring Harness	63.5 CM (25") LONG
7	L1863N	1	Grommet	-
8	AH84583	1	Wiring Harness	1 M (40-1/2") LONG
9	AH84581	1	Wiring Harness	77.5 CM (30-1/2") LONG
10	AH84582	1	Wiring Harness	67.3 CM (26-1/2") LONG
11	AH84164	2	Wiring Lead	(USED WITH HIGH PRESSURE SWITCH)
11	AH89817	2	Switch	HIGH PRESSURE, WITH LEADS, (SUB FOR AH84165)
12	AH84579	1	Wiring Lead	1.6 M (63") LONG
13	AH84163	2	Wiring Lead	(USED WITH LOW PRESSURE SWITCH)
13	AH84166	2	Transducer	LOW PRESSURE, WITH LEADS
14	AH84586	1	WIRING LEAD	96.5 CM (38") LONG (USED WITH PRESSURIZER AND AIR CONDITIONER)
15	H64612	1	Clip	-
16	AH80713	1	FUSE BOX	-
16	AH80089	3	FUSE	7-1/2 AMP., SFE (WINDSHIELD WIPER, DOME LIGHT AND COMPRESSOR CLUTCH)
16	AH80711	2	FUSE	30 AMP., SFE (USED WITH PRESSURIZER AND CONDENSER FANS)
17	H82000	1	Panel	-
18	AH80210	1	LAMP	(WITH SWITCH AND LENS)
18	AH80213	1	Lamp	-
19	AH80521	1	DOOR	WITH HINGE AND PIN
20	AH88866	1	Wiring Lead	40.6 CM (16") LONG, (SUB FOR AH85923)
20	AH80090	1	Wiring Lead	40.6 CM (16") LONG
21	AU42024	1	SWITCH	(USE WITH AT29855)
21	AT129467	1	Switch	(USE WITH AR59444) (SUB FOR AT38296)
22	AH84587	1	Toggle/Rocker Switch	CONDENSER SELECTOR
22	R44097	2	Nut	15/32"
23	AH84582	1	Wiring Harness	67.3 CM (26-1/2") LONG, (SUB FOR AH80704)
24	AH80199	1	Relay	-
25	AH84580	1	Wiring Lead	17.8 CM (7") LONG
26	AH80168	2	KNOB	-
27	R44165	1	Lock Nut	7/16"
27	AH80197	1	SWITCH	THERMOSTAT
28	AH80196	1	Plate	-
29	AH80690	1	PANEL	-
30	AH84588	1	SWITCH	PRESSURIZER
30	R44165	1	Lock Nut	7/16"
31	H81679	1	GROMMET	-
32	AH80182	1	WIRING HARNESS	92.7 CM (36-1/2") LONG
33	AH84584	1	Wiring Harness	47 CM (18-1/2") LONG
34	AH84578	1	WIRING LEAD	12.7 CM (5") LONG
35	AH84617	1	Lamp	HIGH PRESSURE WARNING, (NO LONGER AVAILABLE)
36	H76064	3	Clip	-
37	H84109	1	GASKET	-

OPERATOR'S CAB WIRING AND SWITCHES (YEAR -1974) [E20]
