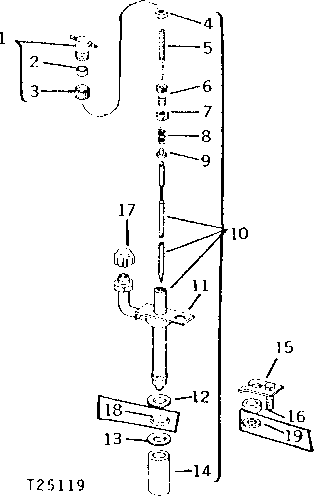

FUEL INJECTION NOZZLE ASSEMBLY (JOHN DEERE 4219D ENGINE) (SERIAL NO. 180579- ) [E08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT27622	1	CAP	-
2	T29539	1	WASHER	-
3	T29540	1	FITTING	-
4	-	1	Part 4	( R47733 NO LONGER AVAILABLE)
5	-	1	Part 5	( R47732 NO LONGER AVAILABLE)
6	-	1	Part 6	( R47734 NO LONGER AVAILABLE)
7	-	1	Part 7	( R46675 NO LONGER AVAILABLE)
8	-	1	Part 8	( R47731 NO LONGER AVAILABLE)
9	-	1	Part 9	( R39886 NO LONGER AVAILABLE)
10	SE501099	1	NOZZLE	(SINGLE PACK) (REMANUFACTURED FOR AR89564)
10	SE500822	1	NOZZLE	(REMANUFACTURED) (CONTAINS (4) AR89564)
10	AR89564	1	INJECTION NOZZLE	(ROOSA-MASTER NO. 22202) (SUB FOR AR56290 AND AR88239) (ROOSA-MASTER NOS. 19762, 20500 AND 22402)
11	R67779	1	CLAMP	(SUB FOR T26870)
12	R34764	1	WASHER	(SUB RE13887, THIS APPLICATION)
12	R60746	1	WASHER	(K) (USE AFTER RE13887 HAS BEEN INSTALLED)
13	R48000	1	Seal	(SUB FOR R34767)
14	T24472	1	Cap	-
15	R34760	1	CLAMP	-
16	R34761	1	SPACER	(SUB RE13887, THIS APPLICATION)
16	R60745	1	SPACER	(K) (USE AFTER RE13887 HAS BEEN INSTALLED)
17	-	1	Part 21	( T31174 NO LONGER AVAILABLE) (USE FOR SERVICING FUEL INJECTION NOZZLE)
18	T32252	1	WASHER	-
19	24H1685	1	Washer	11/32" X 47/64" X 0.083"

FUEL INJECTION NOZZLE ASSEMBLY (JOHN DEERE 4219D ENGINE) (SERIAL NO. 180579- ) [E08]
