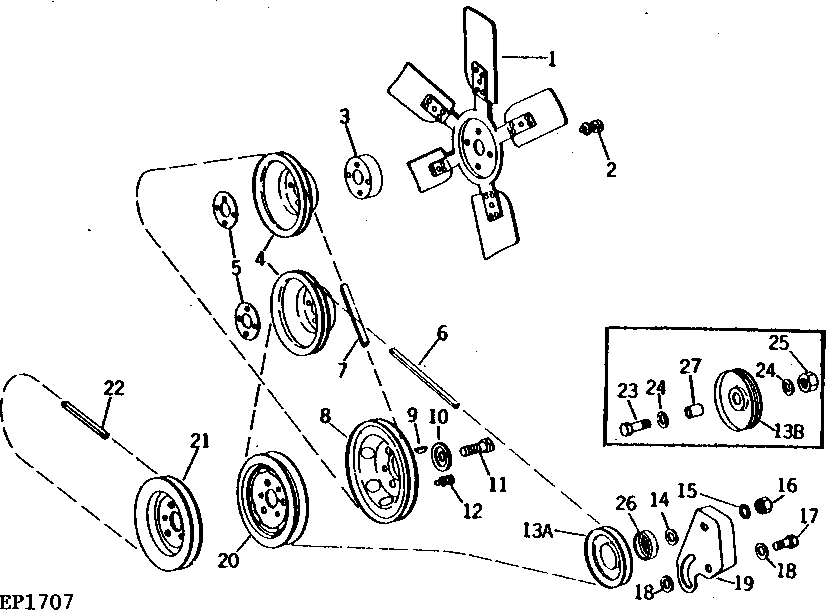

FAN DRIVE AND BELTS (CHRYSLER HB-225 ENGINE) [A23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE30141	1	FAN BLADE	-
2	19H1913	4	Cap Screw	5/16" X 2-1/4"
2	12H303	4	Lock Washer	5/16"
3	E52297	1	SPACER	-
4	E49301	2	PULLEY	-
5	E52756	1	WASHER	1.22 MM (0.048")
6	E53936	1	V-BELT	WATER PUMP (WITH AIR CONDITIONER)
6	E52878	1	V-BELT	WATER PUMP
7	H63772	1	V-Belt	FAN AND ALTERNATOR
8	E53104	1	PULLEY	FAN AND ALTERNATOR
9	26H39	1	SHAFT KEY	3/16" X 2-1/8"
10	E49947	1	WASHER	-
11	E49944	1	SCREW	-
12	19H1900	3	Cap Screw	5/16" X 3/4"
12	12H303	3	Lock Washer	5/16"
14	E53594	1	SPACER	(CHRYSLER NO. 6024 647)
15	24H1325	1	Washer	15/32" X 59/64" X 0.065", (CHRYSLER NO. 131 718)
16	14H849	1	Nut	7/16"
17	19H1731	2	Cap Screw	3/8" X 1"
18	24H1308	5	Washer	13/32" X 1" X 0.134"
19	E53531	1	BRACKET	(CHRYSLER NO. 12582) (SUB AE37743)
20	E62970	1	PULLEY WITH DAMPENER	(CHRYSLER NO. 4095220)
20	E49953	1	PULLEY	WATER PUMP AND COMPRESSOR (CHRYSLER NO. 2806 211)
21	E49923	1	PULLEY	(CHRYSLER NO. 2202 794) NO LONGER AVAILABLE
22	E57428	1	V-BELT	GOVERNOR, (SUB FOR E48298)
23	19H1777	1	Cap Screw	1/2" X 1-3/4"
24	24H1625	1	Washer	17/32" X 1" X 0.120"
25	14H1040	1	Nut	1/2"
26	E53532	1	SHIELD	(CHRYSLER NO. 2658 758) (NO LONGER AVAILABLE)
27	M81677	1	Bushing	-
13A	AE37743	1	PULLEY	(CHRYSLER NO. 3619 997) (WITHOUT AIR CONDITIONER) (SUB FOR AE31740)
13B	AM37249	1	Idler	(WITH AIR CONDITIONER) (SUB FOR AM30194)

FAN DRIVE AND BELTS (CHRYSLER HB-225 ENGINE) [A23]
