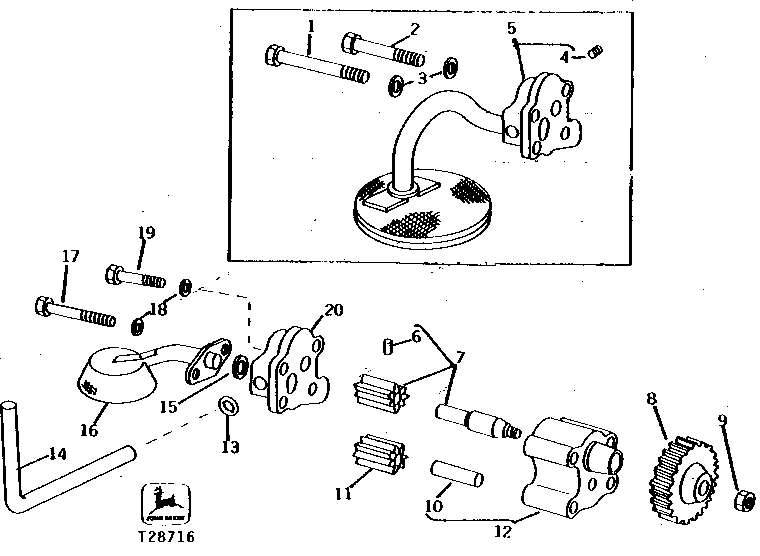

ENGINE OIL PUMP (JOHN DEERE 4219D ENGINE) [C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3445	1	Cap Screw	3/8" X 3-3/4"
2	R125586	3	Cap Screw	(SUB FOR R57059)
3	12H304	3	Lock Washer	3/8"
4	15H560	1	Pipe Plug	1/16", HEX. CTSK.
5	AT24254	1	COVER	(SUB RE55345 AND R113752)
6	M3853T	1	GROOVE PIN	3/16" X 7/8"
7	AR62978	1	PINION	(C)
8	T20298	1	Gear	(33 TEETH)
9	14H826	1	Nut	1/2"
10	T20091	1	DOWEL PIN	-
11	R54614	1	GEAR	(C) (7 TEETH)
12	AR62979	1	HOUSING	(C) (MARKED R54615) (SUB RE55343 AND R113752)
13	R27166	1	O-Ring	(A) (C)
14	T20050	1	OIL TUBE	OUTLET
15	A4730R	1	O-Ring	(C)
16	RE36425	1	Oil Pump Intake	(A) (C) INTAKE, (SUB FOR AR60701)
17	19H3404	2	Cap Screw	(A) (C) 3/8" X 4"
18	12H304	4	Lock Washer	(C) 3/8"
19	R125586	2	Cap Screw	(C) (SUB FOR R57059)
20	R53382	1	COVER	(A) (C)
..	AR67670	1	KIT	OIL PUMP INTAKE (INCLUDES PARTS IDENTIFIED BY (A) (SUB RE55345 AND R113752)
..	AR67074	1	OIL PUMP	(INCLUDES PARTS IDENTIFIED BY (C) (SUB RE55343 AND R113752)

ENGINE OIL PUMP (JOHN DEERE 4219D ENGINE) [C07]
