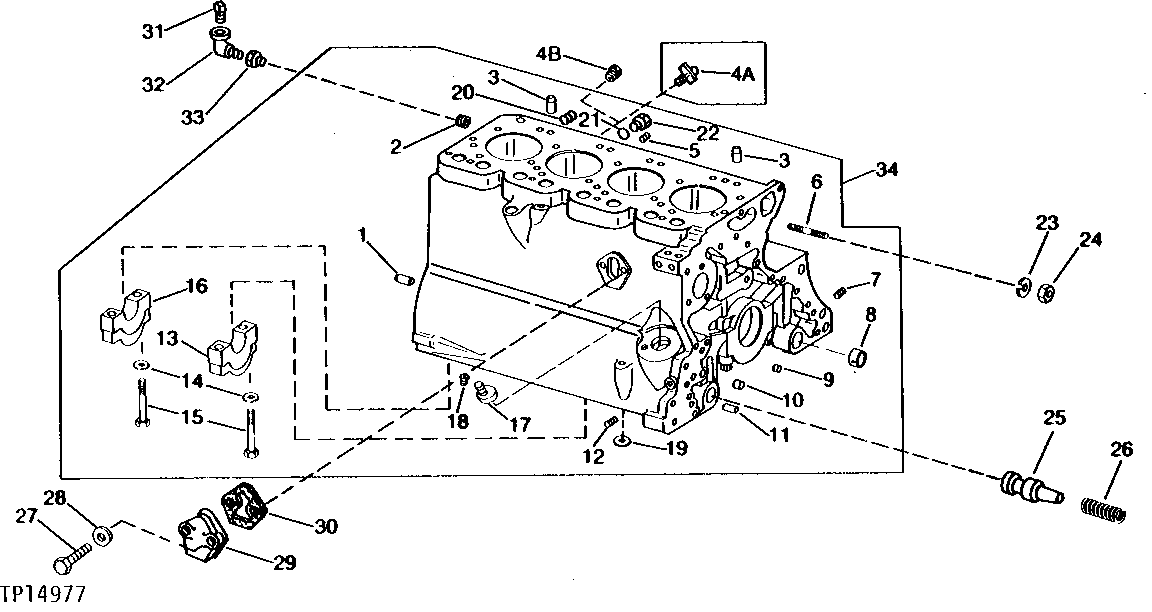

CYLINDER BLOCK (JOHN DEERE 4219D ENGINE) [B13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48685	2	Dowel Pin	(SUB FOR A120R)
2	15H690	1	Pipe Plug	3/4", HEX. CTSK.
2	15H562	1	Pipe Plug	1"
3	R48685	2	Dowel Pin	-
5	15H275	1	Pipe Plug	1/4", HEX. CTSK.
6	T25701	1	Stud	(SUB FOR R26241, THIS APPLICATION)
6	R122226	2	Stud	(SUB FOR T33279)
7	15H558	4	Pipe Plug	1/8", (SUB FOR RE12310)
8	R57160	6	BUSHING	-
9	T18891	2	Plug	-
10	R26493	1	Bushing	-
11	R26650	2	Dowel Pin	-
12	15H666	1	Pipe Plug	3/8", SQ. HD.
13	R65215	4	Bearing Cap	(SUB FOR AR82294)
14	T20168	10	Washer	-
15	T23474	10	Cap Screw	-
16	R79089	1	Cap	(SUB FOR AR82295)
17	T23435	1	Threaded Nipple	-
18	22H932	4	SET SCREW	5/16" X 3/8", (WITHOUT TURBO)
18	R54802	4	Orifice	(WITH TURBO)
19	R75892	1	O-Ring	(OIL PUMP TUBE)
20	15H561	1	Pipe Plug	1/2", (WITHOUT TURBO)
21	U13639	1	O-Ring	(WITHOUT ENGINE COOLANT HEATER)
22	R39741	1	Drain Plug	(WITHOUT ENGINE COOLANT HEATER)
23	12H304	1	Lock Washer	3/8"
24	14H1076	1	Nut	3/8"
25	R73139	1	Flow Control Hyd. Valve	(USE WITH BLOCK MARKED R72972)
26	R46625	1	SPRING	(USE WITH BLOCK MARKED R72972)
27	19H1849	2	Cap Screw	5/16" X 1-1/4"
28	T27860	2	Washer	(SUB FOR R20498, THIS APPLICATION)
29	R27286	1	COVER	-
30	R97350	1	GASKET	(SUB FOR R27285)
31	15H584	1	Pipe Plug	1/2", SQ. HD.
32	15H602	1	Elbow Fitting	90°, 1/2"
33	15H589	1	Pipe Bushing	3/4" X 1/2", OUTSIDE, HEX.
34	RE19853	1	CYLINDER BLOCK	WITH DOWEL PINS, PIPE PLUG, MAIN BEARING CAPS, STUD, NIPPLE, OIL PRESSURE RELIEF VALVE BUSHINGS, WASHERS, CAP SCREWS, AND BALANCER SHAFT BUSHINGS (MARKED R80407 OR R97976) (SUB FOR AR64727) (MARKED R55011 AND AR97088, MARKED R72972) (ALSO ORDER R46625, R73139 AND R131794)
..	AR97100	1	SHORT BLOCK ASSEMBLY	WITH CYLINDER BLOCK ASSEMBLY, CRANKSHAFT, PISTONS, CONNECTING RODS, BALANCER SHAFTS, CAMSHAFT, BYPASS VALVE, BYPASS SPRING, SET SCREWS AND OVERHAUL GASKET SET, (SUB FOR AR59067) (SUB RE19855) (ALSO ORDER RE15381, R81513, AR67942, RE44574 AND RE38857)
..	RE19855	1	SHORT BLOCK ASSEMBLY	WITH CYLINDER BLOCK ASSEMBLY, CRANKSHAFT, PISTONS, CONNECTING RODS, BALANCER SHAFT, CAMSHAFT, TAPPETS AND SET SCREWS, (SUB FOR AR64732 AND AR97103) (ALSO ORDER AR67942, RE44574 AND RE38857)
4A	AT13740	1	Drain Valve	-
4B	R55233	1	Pipe Plug	-
