COMPRESSOR AND MOUNTING BRACKETS, BELTS, PULLEY AND SHEAVE [I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR94973	1	FITTING	-
1	E68632	1	COUPLING	-
1	AR58283	1	VALVE	-
1	AR52325	1	VALVE	(SUB AR94973 AND E68632)
2	R47235	2	O-RING	-
3	AR49808	1	VALVE	-
4	R42822	1	LABEL	-
5	SE501456	1	COMPRESSOR	(REMAN FOR AR92109)
5	AR92109	1	COMPRESSOR	-
5	AR77343	1	COMPRESSOR	COMPLETE WITH COIL, CLUTCH, PULLEY AND DUST COVER, (SUB FOR AR60948 AND AR68802)
7	19H1731	1	Cap Screw	3/8" X 1"
8	19H2551	3	Cap Screw	5/16" X 3/4", UNF
9	19H1936	1	Cap Screw	3/8" X 3/4"
9	14H812	1	NUT	3/8"
11	24H1625	3	Washer	17/32" X 1" X 0.120"
12	14H1040	1	Nut	1/2"
12	19H1777	1	Cap Screw	1/2" X 1-3/4"
13	AM37249	1	Idler	(SUB FOR AM30194)
14	E53936	1	V-BELT	-
15	E50978	1	SHEAVE	-
16	19H1732	4	Cap Screw	3/8" X 1-1/4"
17	E50973	1	V-BELT	-
18	E52335	2	SUPPORT	-
19	E50302	1	Lock Nut	-
21	R47233	1	PLUG	-
22	R47234	1	WASHER	-
24	19H1936	2	Cap Screw	3/8" X 3/4"
25	08H4668	1	CAP SCREW	1/2" X 9-1/2"
26	14H812	4	NUT	3/8"
26	19H1732	4	Cap Screw	3/8" X 1-1/4"
27	24M7028	4	Washer	10.500 X 20 X 2 MM
28	24M7055	4	Washer	8.400 X 16 X 1.600 MM
29	M81677	1	Bushing	-
..	R49856	1	OIL	0.946 L (1 QT.)
6A	E50904	1	BRACKET	-
6B	E50976	1	BRACKET	-
10A	E52334	1	BRACKET	-
10B	E50977	1	BRACKET	-
20A	E52744	1	BUSHING	-
20B	E65627	1	SPACER	-
20B	E50975	1	BUSHING	-
23A	E52333	1	BRACKET	-
23B	E50974	1	BRACKET	-

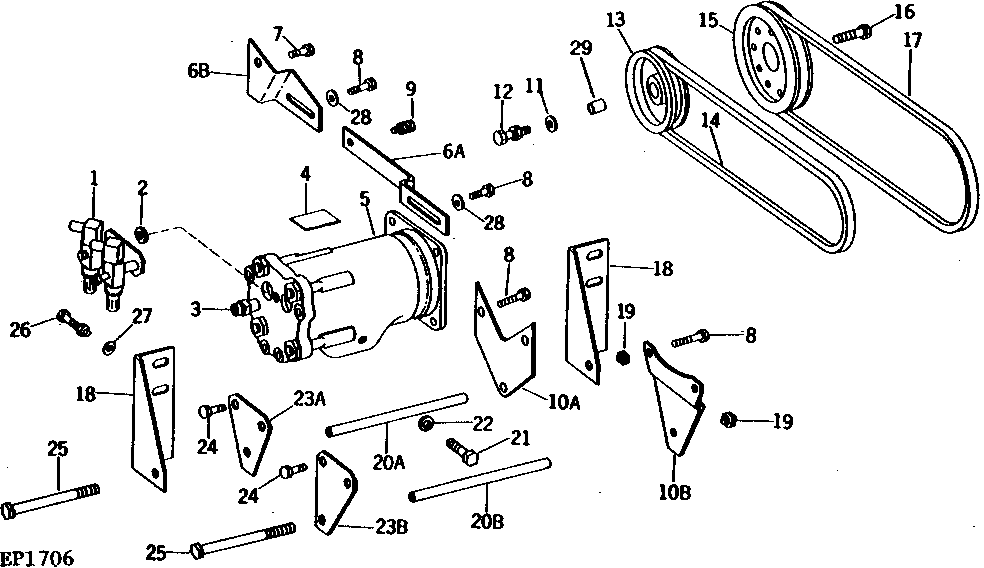

COMPRESSOR AND MOUNTING BRACKETS, BELTS, PULLEY AND SHEAVE [I18]
