Открытый узел

ROCKSHAFT REMOTE CONTROL (WITH CAB)

ROCKSHAFT REMOTE CONTROL (WITH CAB)

ROCKSHAFT REMOTE CONTROL (WITH CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

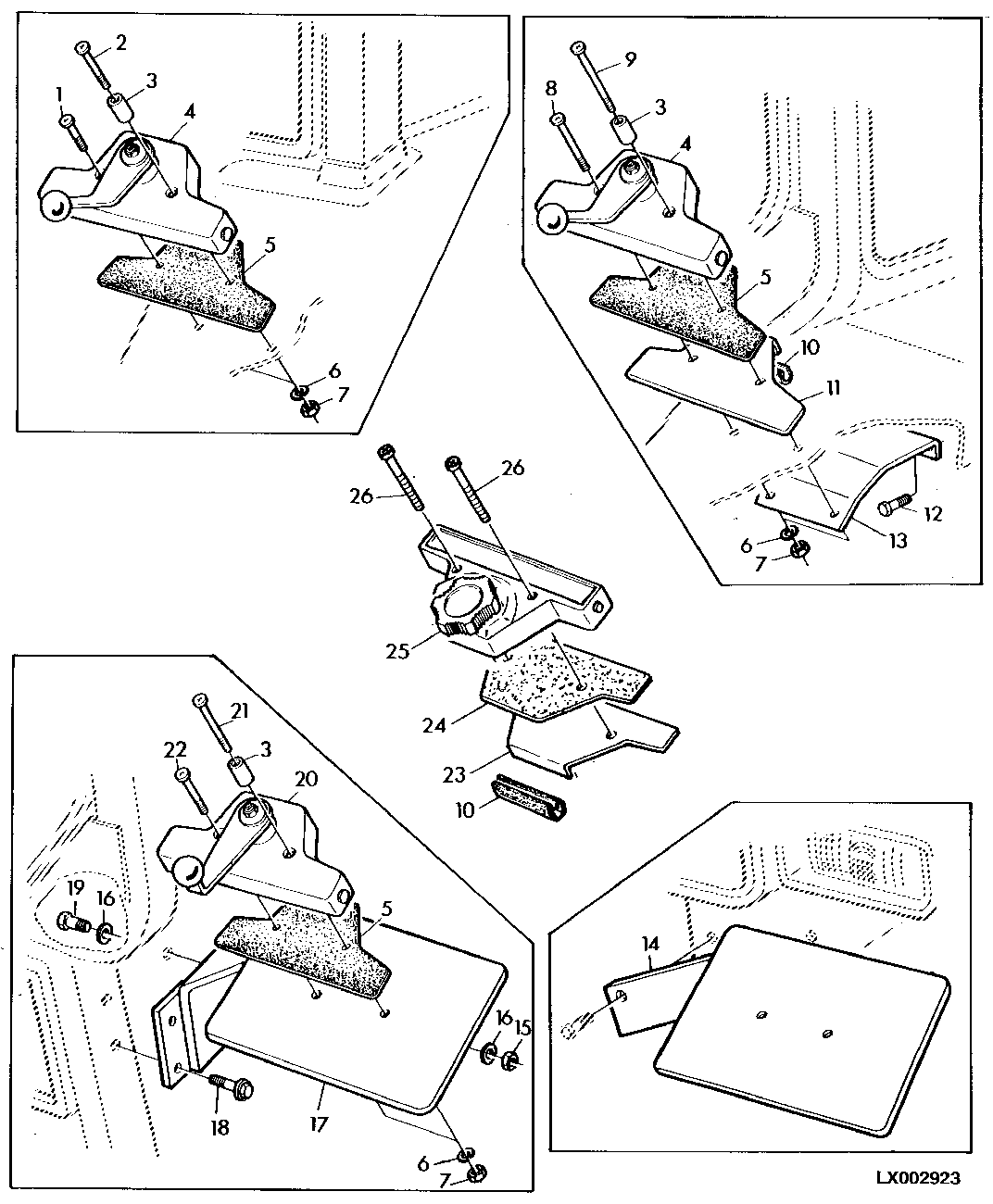

ROCKSHAFT REMOTE CONTROL (WITH CAB)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21M7327	1	Screw	(WITH SG2 CAB) M6 X 35
2	21M7376	1	Screw	(WITH SG2 CAB) M6 X 50
3	L58326	1	Bushing	(SUB FOR L60470)
4	AL64189	1	Actuator	(WITH SG2 CAB) (ORDER AL69236, L64494, L64893, (2) 21M7403) (SUB FOR AL61200, AL63979)
4	AL64189	1	Actuator	(WITH MC1 AND CC2 CABS) (ORDER AL69236, L64494, L64893, L64894, (2) 21M7403) (SUB FOR AL61200, AL63979)
5	L60787	1	Gasket	-
6	12H302	2	Lock Washer	1/4"
7	14M7272	2	Nut	M6
8	21M7403	1	Screw	(WITH MC1 AND CC2 CABS) M6 X 40
9	21M7407	1	Screw	(WITH MC1 AND CC2 CABS) M6 X 55
10	L60802	1	Pad	(WITH MC1 AND CC2 CABS)
11	L60801	1	Bracket	(WITH MC1 AND CC2 CABS)
12	19M7163	2	Cap Screw	(WITH MC1 AND CC2 CABS) M8 X 25
13	L60803	1	Bracket	(WITH MC1 AND CC2 CABS)
14	AL64620	1	Holder	(WITH SG2 CAB) (WITH SNOW CHAIN FENDERS)
15	14M7358	2	Nut	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS) M8
16	24M7362	4	Washer	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS) 8.400 X 16 X 1.600 mm
17	AL64619	1	Holder	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS)
18	37M7176	2	Screw	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS) M6 X 16
19	19M7009	2	Cap Screw	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS) M8 X 20
20	AL64166	1	Actuator	(WITH SG2 CAB) (WITH SNOW CHAIN FENDERS) (ORDER AL69236, L64494, (2) 21M7403) (SUB FOR AL64623)
20	AL64166	1	Actuator	(WITH MC1 AND CC2 CABS) (WITH SNOW CHAIN FENDERS) (ORDER AL69236, L64494, (2) 21M7403) (SUB FOR AL64623)
21	21M7390	1	Screw	(WITH SNOW CHAIN FENDERS) M6 X 65
22	21M7376	1	Screw	(WITH SNOW CHAIN FENDERS) M6 X 50
23	L64894	1	Bracket	-
24	L64893	1	Gasket	-
25	AL69236	1	Actuator	(WITH MC1 AND CC2 CABS) (WITH SG2 CAB) (WITH SNOW CHAIN FENDERS)
26	21M7403	2	Screw	M6 X 40
