Тип техники

Бренд

Машина

Открытый узел

52 SYNCHRO. TRANSM., HI-LO, CREEPER TRANSM.

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	OIL DISTRIBUTOR AND LINES WITH HI-LO UNIT OR CREEPER [01I05]	-
-	-	1	TRANSMISSION OIL PUMP/OIL LINES [01G21]	-
-	-	1	TRANSMISSION OIL FILTER [01I25]	-
-	-	1	TRANSMISSION DRIVE SHAFT AND SYNCHRONIZING PARTS [01I12]	-
-	-	1	TRANSMISSION CASE/END COVER [01I07]	-
-	-	1	TRANSMISSION CASE [01I10]	-
-	-	1	TRANSMISSION CASE [01I08]	-
-	-	1	SHIFT COVER(WITH INDEP.PTO AND HI-LO) [01H05]	-
-	-	1	SHIFT COVER(WITH IND.PTO AND CREEPER TRANSMISSION) [01H03]	-
-	-	1	SHIFT COVER (WITH IND.PTO) [01H01]	-
-	-	1	SHIFT COVER (WITH IND.PTO) [01G23]	-
-	-	1	SHIFT COVER (WITH IND.PTO AND HI-LO SHIFT UNIT) [01G25]	-
-	-	1	SHIFT COVER (WITH IND.PTO AND CREEPER TRANSMISSION) [01G24]	-
-	-	1	PTO CLUTCH [01H18]	-
-	-	1	OIL PUMP/PTO DRIVE SHAFT /CLUTCH SHAFT [01G19]	-
-	-	1	OIL MANIFOLD/OIL LINES(WITH IND.PTO) [01I03]	-
-	-	1	CONTROL VALVE/SENDING UNIT [01H07]	-
-	-	1	LUBRICATING LINES/OIL CUP [01I23]	-
-	-	1	HOLLOW DRIVE SHAFT [01I14]	-
-	-	1	HI-LO SHIFT CONTROL LEVER [01H09]	-
-	-	1	HI-LO CLUTCH [01H10]	-
-	-	1	GROUP SHAFT [01I18]	-
-	-	1	GEAR SHIFTING PARTS (SYNCHRONIZED TRANSMISSION) [01I21]	-
-	-	1	GEAR SHIFT LEVER (SYNCHRONIZED TRANSMISSION) [01I20]	-
-	-	1	FWD-SOLENOID/REPAIR KIT [01I01]	-
-	-	1	FWD-DRIVE [01H20]	-
-	-	1	FWD MULTI-DISK CLUTCH [01H21]	-
-	-	1	FWD COVER/SOLENOID VALVE [01H23]	-
-	-	1	DIFFERENTIAL DRIVE SHAFT/RANGE SHAFT-DIFF.9/46 [01I16]	-
-	-	1	CREEPER TRANSMISSION CONTROL LEVER AND LINKAGE [01H12]	-
-	-	1	CREEPER TRANSMISSION [01H14]	-
-	-	1	COVER/CONTROL LEVER (WITH INDEPENDENT PTO) [01H16]	-

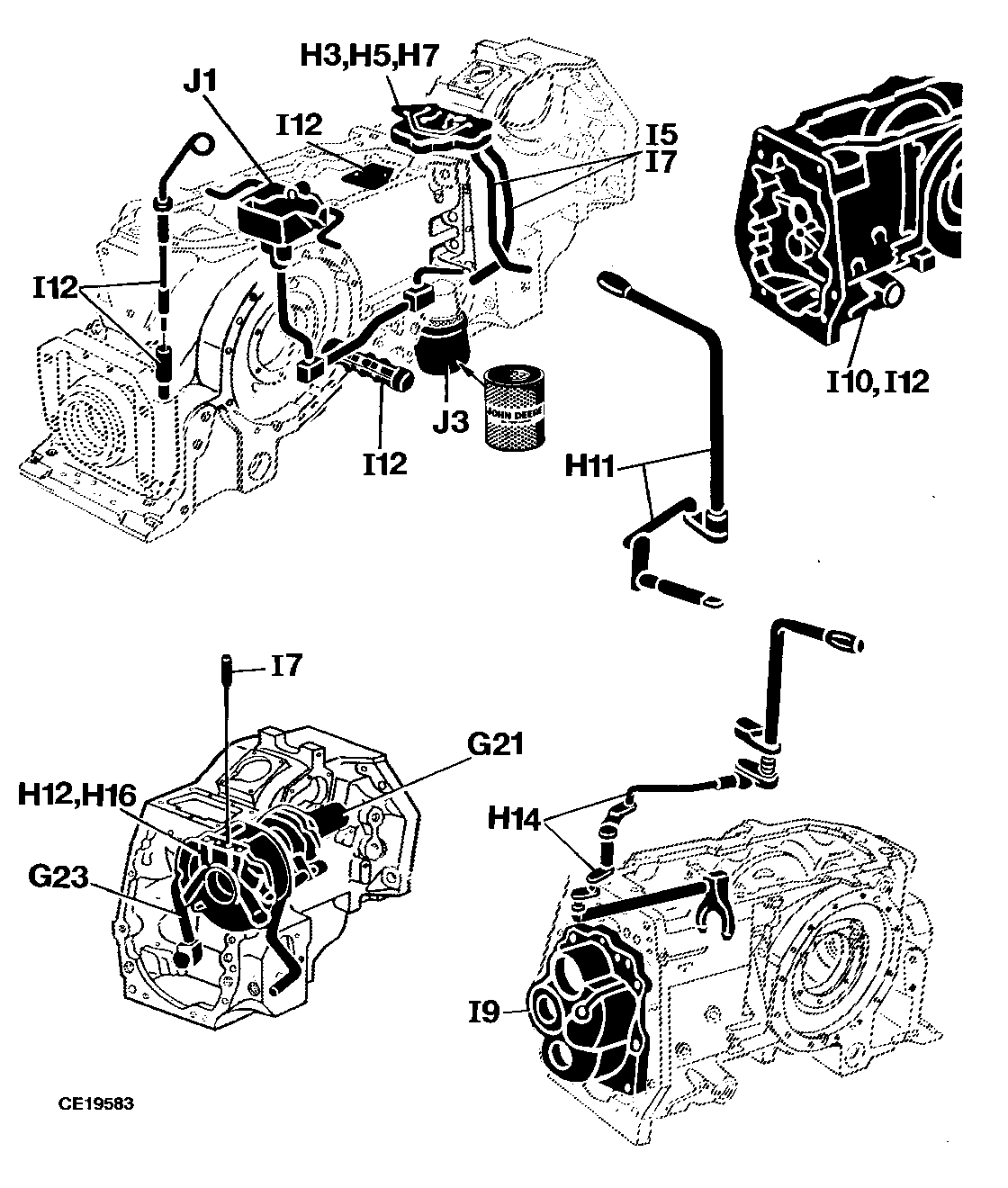

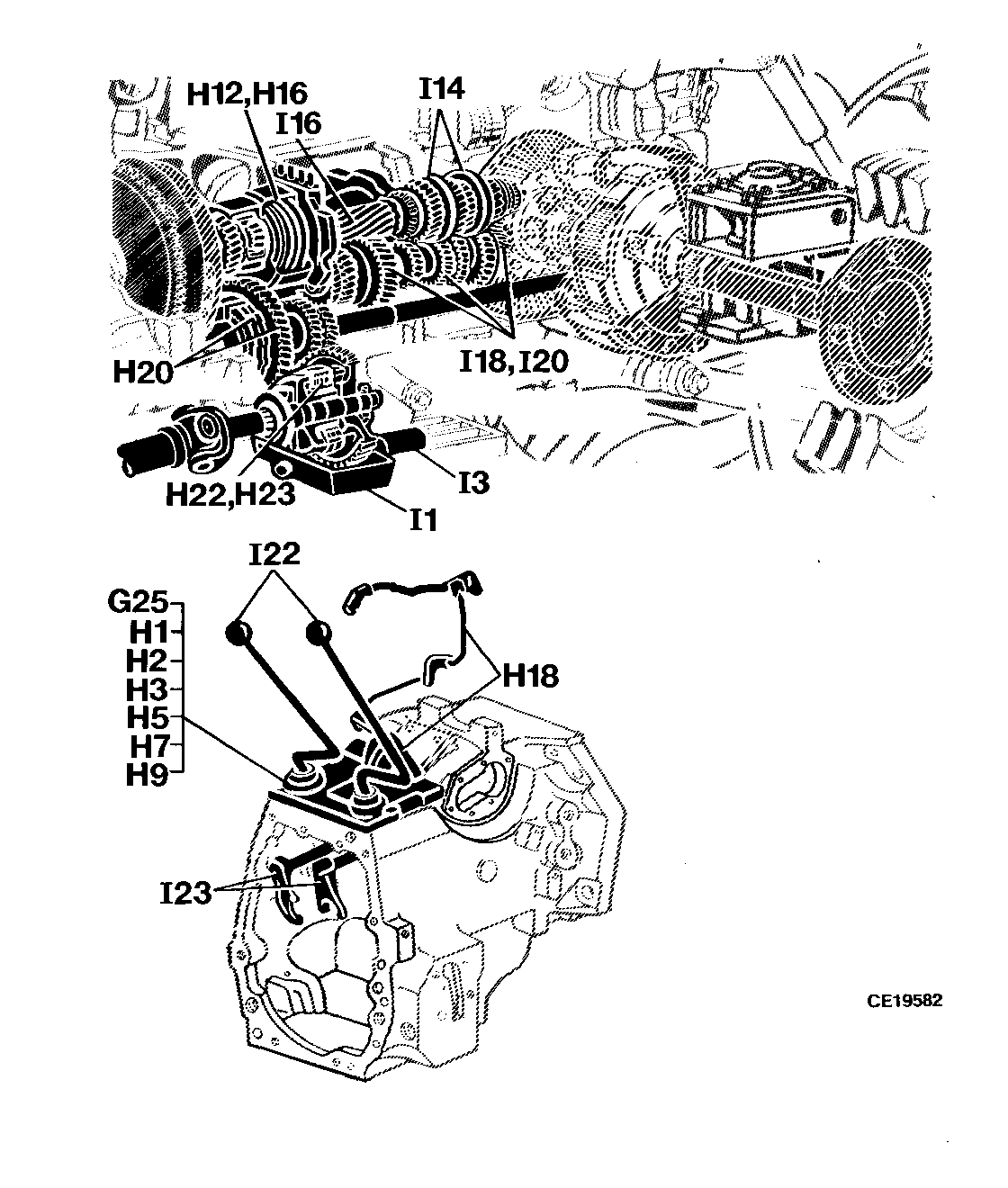

52 SYNCHRO. TRANSM., HI-LO, CREEPER TRANSM.

Нет текстового описания
