Открытый узел

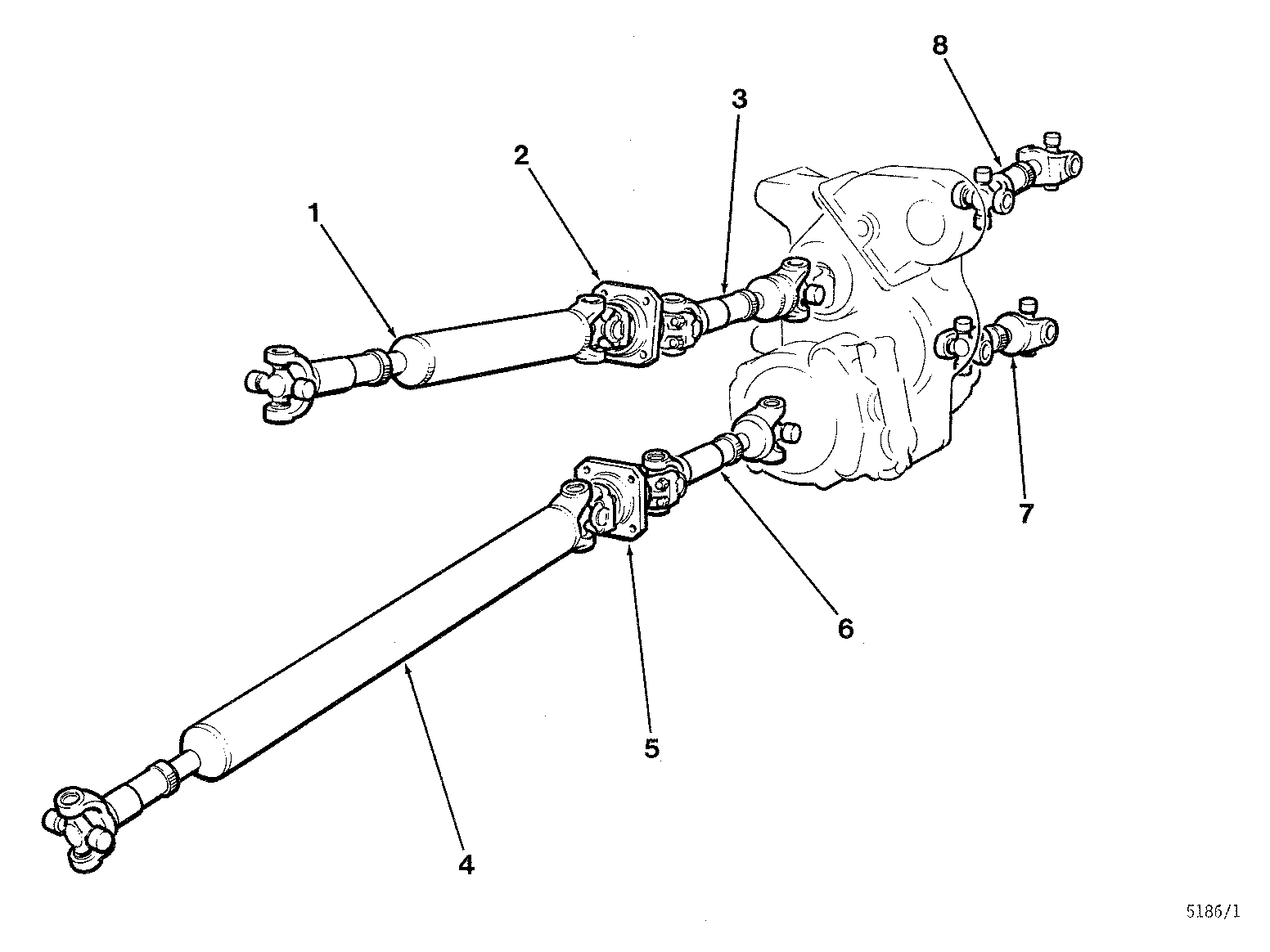

DRIVELINE (1500) G S E E X 1500 DRIVELINE LAYOUT( 847060 - ) 1500-044/10 [1500-044/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810869100	1	DRIVE SHAFT - TOP FRONT - P. 1511 - 22/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO EATON T-20 WINCH ( AA7487 - CB7768) 1511-037/10
2	825836300	1	PILLOW BLOCK*1410 -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AA5191 - AC5389) 1530-020/10
3	810937400	1	DRIVE SHAFT - TOP CROSSOVER P. 1511 - 10/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( AA5191 - CE7000) 1511-010/10
4	810947100	1	DRIVE SHAFT - LOWER FRONT - P. 1511 - 111/10	-
5	825812300	1	LOWER PILLOW ASSEMBLY...................P. 1530 - 020/10	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AA5191 - AC5389) 1530-020/10
6	825163200	1	DRIVESHAFT -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE LOWER ( AA5191 - CE7000) 1511-064/10
7	810861000	1	SHAFT - T20 (EATON) WR3;WR5.............P. 1511 - 102/10	-
8	810837300	1	SHAFT - T20 (EATON).....................P. 1511 - 072/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO T30A WINCH ( CB7767 - CB7768) 1511-072/10
-	811114100	1	SHAFT - LOCKABLE DIFF. (OPTION).........P. 1511 - 137/10	-
-	810614000	1	SHAFT - T30 (GEARMATIC) WR3.............P. 1511 - 019/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GEARMATIC CABLE WR7 NO SPIN ( CK7125 - CB7766) 1511-019/10
-	811029000	1	SHAFT - T30 (GEARMATIC) WR3;WR5.........P. 1511 - 120/10	-
-	810613500	1	SHAFT - GRAPPLE.........................P. 1511 - 016/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANS. CASE TO REAR AXLE GRAPPLE WR7 LOCK DIFF ( CK7159 - CT7344) 1511-016/10
-	820007500	1	SHAFT - T30 (GEARMATIC).................P. 1511 - 011/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO GEARMATIC WINCH ( AA7487 - CB7768) 1511-011/10
-	810636800	1	SHAFT - DUAL DRUM.......................P. 1511 - 020/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO DUAL DRUM WINCH ( CB7769 - CE7000) 1511-020/10
-	810636700	1	SHAFT - GRAPPLE.........................P. 1511 - 037/10	Refer to Page: SKIDDER, LOG\240 SKIDDER, LOG\240 - 200-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT P.T.O. TO EATON T-20 WINCH ( AA7487 - CB7768) 1511-037/10

DRIVELINE (1500) G S E E X 1500 DRIVELINE LAYOUT( 847060 - ) 1500-044/10 [1500-044/10]

Нет текстового описания
