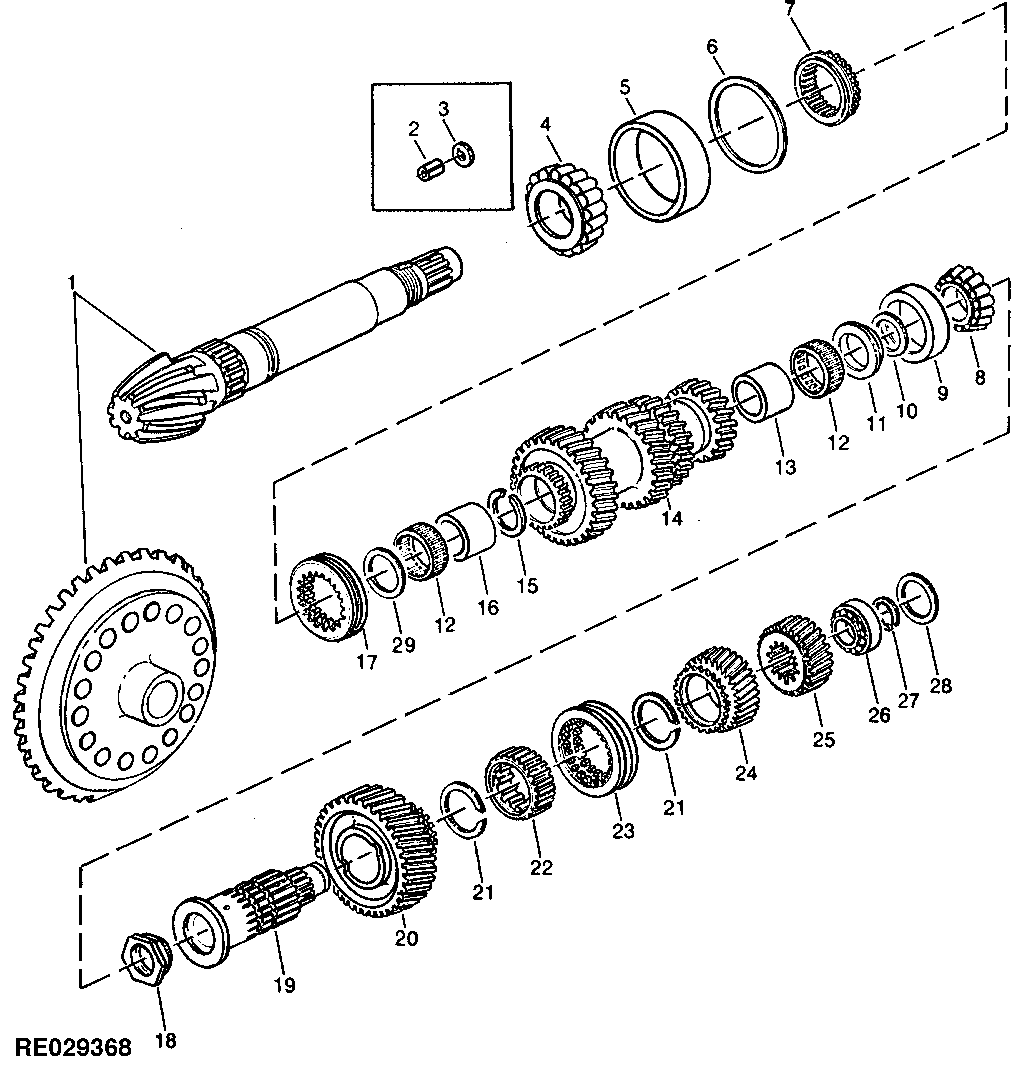

DIFFERENTIAL DRIVE SHAFT (SYNCRO-RANGE) [02E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL30930	1	KIT	RING GEAR (43 TEETH) AND PINION (9 TEETH) (MARKED T30253, L33223 AND L34248)
2	34M7105	1	SPRING PIN	12 X 24 MM
3	L33047	1	THRUST WASHER	-
4	AL65858	1	Bearing	(SUB FOR JD10097)
5	L28648	1	Bearing Cup	-
6	T28284	1	Shim	0.1MM (.003")
6	T28285	1	Shim	0.25MM (.010")
6	T28286	1	Shim	(.010")
7	L33721	1	SHIFT COLLAR CARRIER	-
8	JD10080	1	Bearing Cone	-
9	AL65171	1	Bearing	(SUB FOR JD10098)
10	L36301	1	Shim	45 X 56 X 0.150MM
10	M809T	1	Shim	45 X 56 X 0.127MM
10	24M7231	1	Shim	45 X 56 X 0.500MM
10	24M7224	1	Shim	45 X 56 X 0.300MM, (NLA)
10	24M7225	1	Shim	45 X 56 X 0.200MM
10	24M7223	1	Shim	45 X 56 X 0.100MM, (SUB AL60718) (NO LONGER AVAILABLE)
11	L36087	1	Spacer	-
12	JD10070	2	Needle Bearing	-
13	JD10074	1	BEARING RACE	-
14	L41021	1	Countershaft	(SUB FOR L33019)
15	40M7072	1	Snap Ring	-
16	JD10075	1	Bearing Race	-
17	L33033	1	Shift Collar	-
18	L55840	1	Nut	(SUB FOR L34182 OR L41793)
19	L33290	1	Shaft	(SUB L37590, L33047 AND 34M7105)
19	L37590	1	Shaft	-
20	L33023	1	Gear	-
21	L33035	2	Snap Ring	-
22	L33060	1	Shift Collar Carrier	-
23	L33024	1	Shift Collar	(SUB L100528)
24	L33025	1	Gear	-
25	L33264	1	Gear	(21 TEETH) (9.5-24 TIRE)
25	L34100	1	Gear	(22 TEETH) (8.3-24 TIRE)
26	JD10079	1	Tapered Roller Bearing	-
27	B1402R	1	SNAP RING	-
28	24M7219	1	Shim	50 X 62 X 0.100MM
28	L36302	1	Shim	50 X 62 X 0.150MM
28	24M7220	1	Shim	50 X 62 X 0.200MM
28	24M7221	1	Shim	50 X 62 X 0.300MM
28	24M4813	1	Washer	50 X 62 X 1 MM
29	L33733	1	Thrust Washer	-

DIFFERENTIAL DRIVE SHAFT (SYNCRO-RANGE) [02E03]
