Открытый узел

Rear Axle Transmission Pump

Rear Axle Transmission Pump

Rear Axle Transmission Pump

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

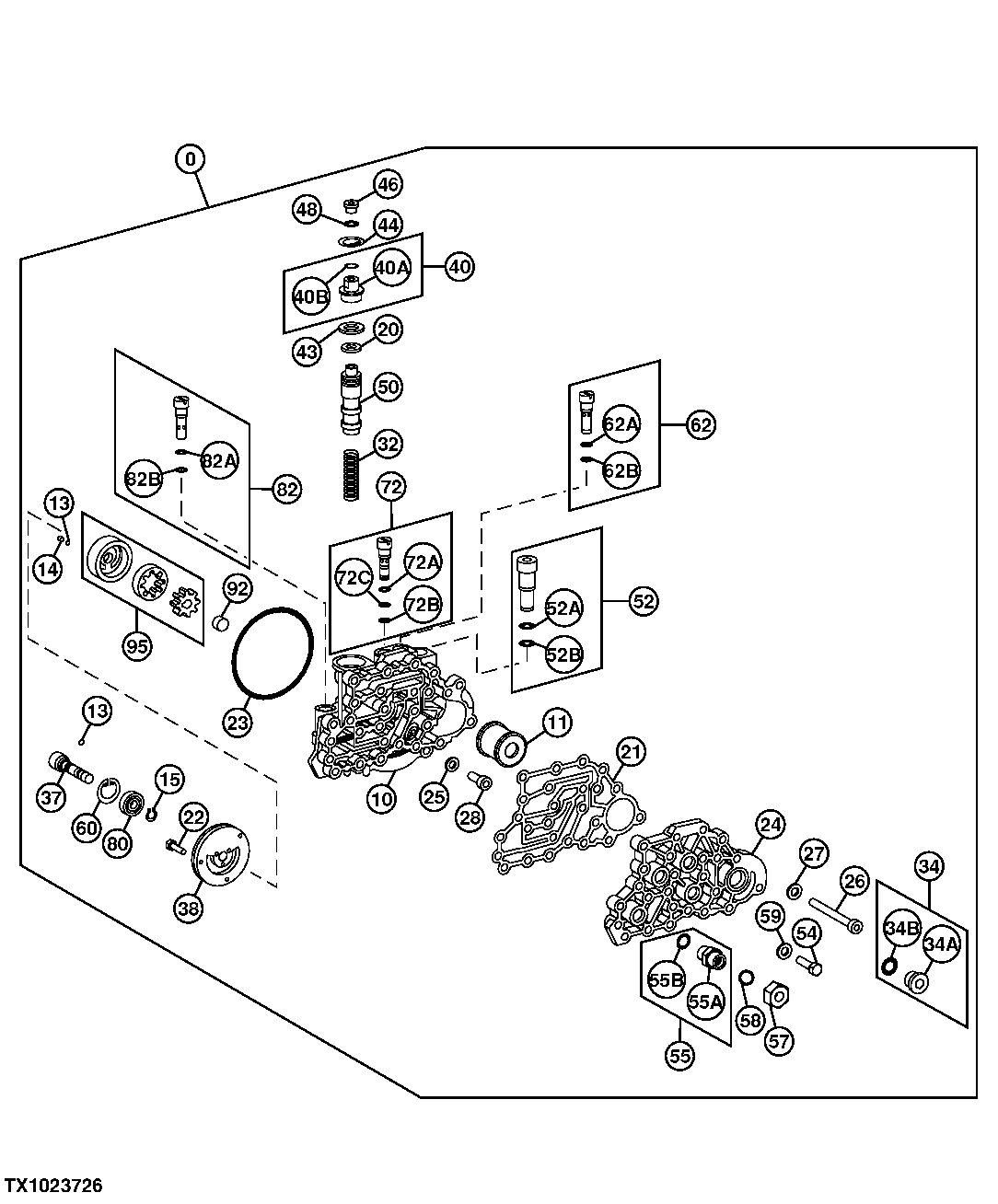

Rear Axle Transmission Pump

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT446122	1	Axle	Additional Components On Separate Pages, (SUB FOR 4651845 AND 4472049010)
10	4143342090	1	Housing	(SUB FOR 1140401)
11	AT322090	1	Filter	(SUB FOR 0879618)
13	AT322091	4	Ball	(SUB FOR 0879619)
14	AT322092	3	Compression Spring	(SUB FOR 0879620)
15	AT322093	1	Snap Ring	(SUB FOR 1140426)
20	AT322078	1	Gasket	(SUB FOR 0879602)
21	0501322459	1	Gasket	(SUB FOR 1140428)
22	AT322094	3	Bolt	(SUB FOR 1140427)
23	AT322097	2	O-Ring	(SUB FOR 0879625)
24	AT322096	1	Cover	(SUB FOR 0879624)
25	FXB00009288	1	Washer	(SUB FOR 0879629)
26	AT322100	2	Bolt	(SUB FOR 0879628)
27	FXB00009288	2	Washer	(SUB FOR 0879629)
28	AT322098	1	Bolt	(SUB FOR 1140431)
32	AT322079	1	Compression Spring	(SUB FOR 0879603)
34	-	1	Part 17	(NLA)
37	4143342097	1	Shaft	(SUB FOR 1140437)
38	AT322103	1	Cover	(SUB FOR 0879632)
40	0879639	1	Plug	-
43	AT321980	1	O-Ring	(SUB FOR 0879004)
44	AT322105	1	Snap Ring	(SUB FOR 0879634)
46	R53869	1	Drain Plug	(SUB FOR 0896501)
48	AT322081	1	Sealing Ring	(SUB FOR 1139916)
50	AT322082	1	Piston	(SUB FOR 0879607)
52	AT322083	1	Valve	(SUB FOR 0879608)
54	FXB00005539	23	Bolt	(SUB FOR 0879627)
55	-	2	Part 34	(NLA)
57	0637880044	2	Nut	(SUB FOR 1140442)
58	0635460026	2	Ball	(SUB FOR 1140443)
59	FXB00009288	23	Washer	(SUB FOR 0879629)
60	AT322105	1	Snap Ring	(SUB FOR 0879634)
62	AT322085	1	Check Valve	(SUB FOR 0879611)
72	AT322087	1	Check Valve	(SUB FOR 0879614)
80	AT322104	1	Ball Bearing	(SUB FOR 0879633)
82	AT322088	1	Check Valve	(SUB FOR 0879615)
92	AT322089	1	Sleeve	(SUB FOR 0879616)
95	0501212508	1	Rotor	(SUB FOR 1140422)
34A	T113570	1	Drain Plug	(SUB FOR 0879017 OR T116451)
34B	R104558	1	O-Ring	(SUB FOR 1140436)
40A	AT322080	1	Plug	(SUB FOR 0879604)
40B	R82198	1	O-Ring	(SUB FOR 0879605)
52A	R76617	1	O-Ring	(SUB FOR 0879609)
52B	AT322084	1	O-Ring	(SUB FOR 1140414)
55A	0879635	1	Socket	-
55B	AT322106	1	O-Ring	(SUB FOR 1139913)
62A	T159487	1	O-Ring	(SUB FOR 0879612)
62B	AT322086	1	O-Ring	(SUB FOR 0879613)
72A	T159487	1	O-Ring	(SUB FOR 0879612)
72B	AT322086	1	O-Ring	(SUB FOR 0879613)
72C	AT321989	1	O-Ring	(SUB FOR 1139909)
82A	T159487	1	O-Ring	(SUB FOR 0879612)
82B	AT322086	1	O-Ring	(SUB FOR 0879613)
