Hydraulic Lines On Boom To Cylinders (Mono Boom)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9156686G	1	Line	SUB FOR 8062625
1	9156685G	1	Line	SUB FOR 8062624
2	8082106G	1	Pipe	-
3	8081525G	1	Pipe	-
4	4628956	1	Hydraulic Hose	Units Built Before November 2009, 4628956 NLA; SUB 4676587
4	4676587	1	Hydraulic Hose	Units Built November 2009 And After
5	-	1	Part 7	Units Built Before November 2009, 4628514 NLA; SUB 4676586
5	4676586	1	Hydraulic Hose	Units Built November 2009 And After
6	T77858	7	O-Ring	SUB FOR 4187308
7	T76938	3	O-Ring	SUB FOR 4187328
14	4190126	4	Clamp	Units Built Before November 2009
14	4190126	6	Clamp	Units Built November 2009 And After
15	-	1	Part 13	Rubber, 4285723 NLA; ORDER 4189859
15	4189859	1	Clamp	Steel
16	4153488	1	Clamp	-
19	24M7345	7	Washer	13.500 X 24 X 2.500 mm, Units Built November 2009 And After
19	19M8348	5	Cap Screw	M12 X 65, Units Built Before November 2009, SUB FOR J901265
19	19M8348	7	Cap Screw	M12 X 65, Units Built November 2009 And After
19	4661579	7	Screw With Washer	Units Built November 2009 And After
19	24M7345	5	Washer	13.500 X 24 X 2.500 mm, Units Built Before November 2009, SUB FOR J222012
19	-	5	Part 16	Units Built Before November 2009, 4661579 NLA
20	-	3	Part 22	4657481 NLA
20	19M8088	3	Cap Screw	M12 X 75, SUB FOR J901275
20	24M7345	3	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
21	-	2	Part 25	4661581 NLA
21	19M7364	2	Cap Screw	M12 X 80, SUB FOR J901280
21	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222012
23	-	2	Part 28	Rubber, 4285723 NLA; ORDER 4189859
23	4189859	2	Clamp	Steel
24	AT318021	2	Clamp	SUB FOR 4285722
25	4153488	2	Clamp	SUB FOR 4285725
26	AT309596	2	Clamp	Rubber, SUB FOR 4285724

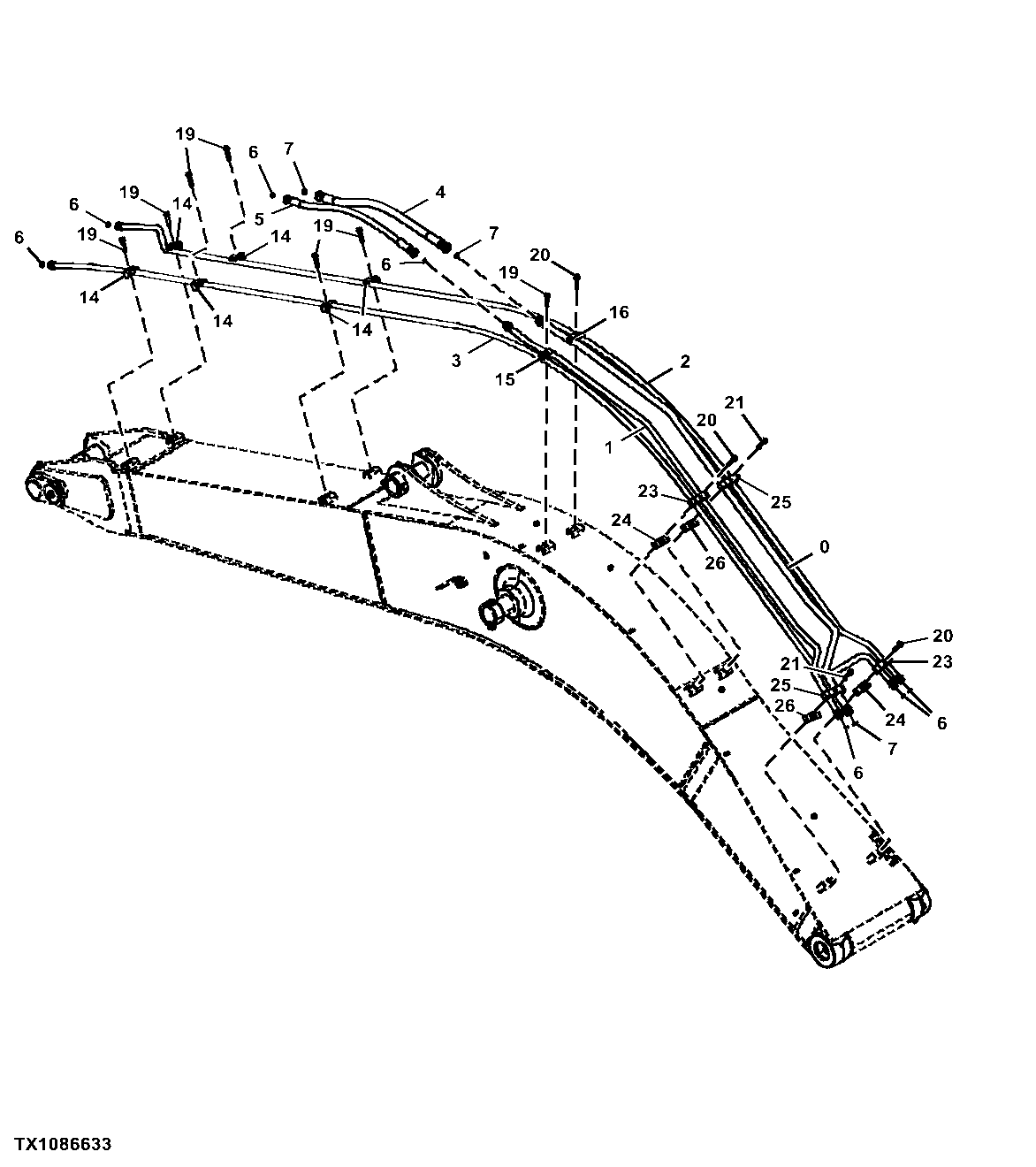

Hydraulic Lines On Boom To Cylinders (Mono Boom)
